| Application: | solar power system |
|---|---|
| Number of Conductors: | stranded |
| Jacket: | XLPE |
| Insulation Material: | XLPE |
| Conductor Material: | Copper |
| Model Number: | PV1-F |
| Brand Name: | YOLARLINK |
| Place of Origin: | China (Mainland) |
| certification: | TUV UL CUL |
| voltage: | 600/1000V |
Quick Details
Specifications
Features:
Construction
1 Conductor: Tinned fine copper strands,according to VDE 0295/IEC 60228,class 5
2 Insulation: polyolefin copolymer electron-beam cross- linked
3 Jacket: polyolefin copolymer electron-beam cross- linked, UV and ozone resistant
4 Jacket colour: all colour
Advantages
1 Electron-beam cross-linked compounds
2 UV, ozone and hydrolysis resistant
3 High temperature resistant,the materials do not melt or flow
4 Good cold flexibility
5 Very long service life >25 years at 90℃
6 Compatible to all popular connectors
Material properties/Standards
1 Fire performance: IEC 60332-1
2 Smoke emission: IEC 61034; EN 50268-2
3 Low fire load: DIN 51900
4 Approvals: TUV SUD VDE-AR-E 2283-4 PV1-F
5 Application standards: UNE 21123; UNE 20.460-5-52; UTEC 32-502
Product Application
Double insulation, electron beam crosslinking power cable, used in photovoltaic power generation.
Technical details:
1 Nominal voltage: U01500V DC(max.permitted voltage 1800VDC)
2 Test voltage: 11KV, 50HZ, 5min
3 Max. conductor temperature: -40℃ up to +120℃
4 Ambient temperature: -40℃up to +90℃
5 Max. Short circuit temperature: 280℃
6 Bending radius: fixed installation>4×Φ Occasionally moved>5×Φ

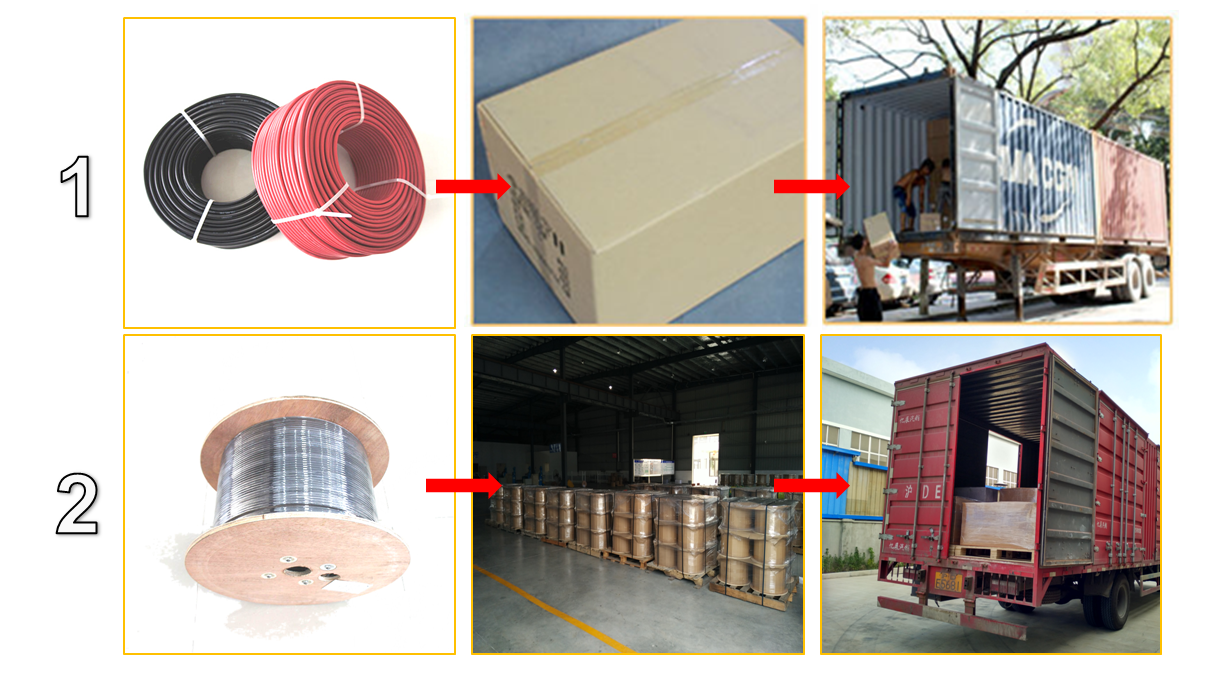

Package:

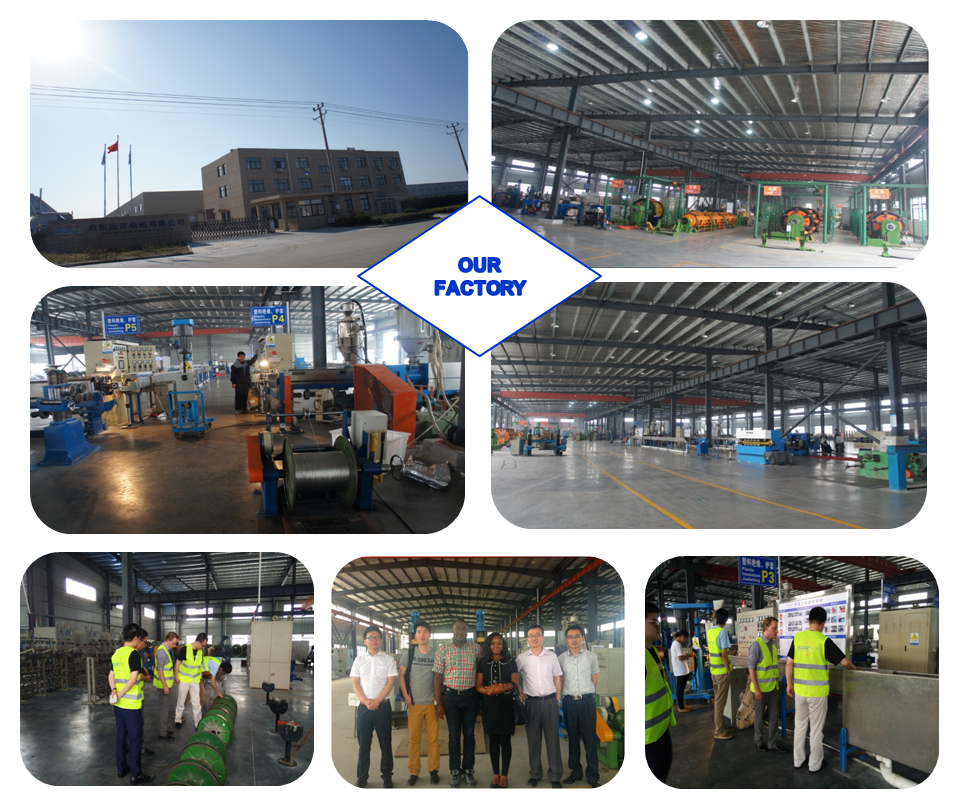

about us:
