| Brand Name: | Huawei |
|---|---|
| Wavelength: | 1310/1550nm |
| Data Rate: | 1.25G |
| warranty: | 1 Year |
| Connector: | SC |

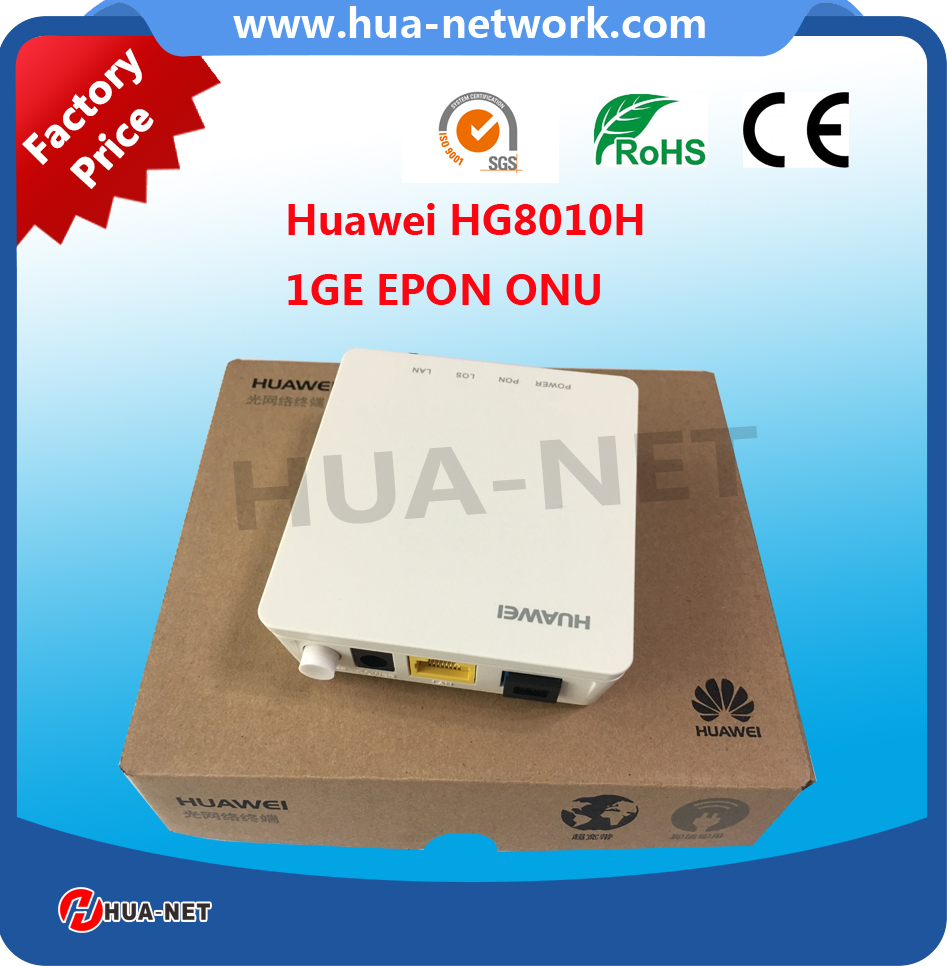

| Model Number: | HG8010H |
| Place of Origin: | China (Mainland) |
| Weight: | 0.2kg |
| Size: | 115*94*27mm |
Quick Details
Specifications
the HG8010H provides one GE Ethernet port. The HG8010H features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services.Product Features
Port: 1GE.
Plug-and-play (PnP):
Internet and IPTV services can be deployed by one click on the NMS and on-site configuration is not required.
Remote diagnosis:
Remote fault locating is implemented by the precise positioning feeder and drop cables, and identifying problems of software and hardware.
High speed forwarding:
GE line rate forwarding.
Applications & BenefitsHigh-performance forwarding capability provides an optimal terminal solution and future oriented service supporting capabilities for ftth deployment.Plug-and-play makes service provisioning easier and more quickly.
Specifications
Technical items |
Descriptions |
Fiber port |
1 EPON interface, SC Single-mode/single-fiber, Downstream rate 1.25Gbps, Upstream rate 1.25Gbps |
Wavelength |
Tx 1310nm, Rx 1490nm |
Fiber interface |
SC/PC |
RX sensitivity |
<-28dBm (1490nm) |
LAN |
1*10/100/1000Mbps adaptive Ethernet ports, Full/half duplex, RJ45 interface |
Throughput |
Throughput can reach 900Mbps or more |
DC power |
12V 1A, external AC-DC power adapter |
Button |
Reset, power |
Power |
≤8W |
Operation |
Working temperature: -5-+55℃ working Humidity:10-90%(non-condensation) |
Storage |
Storage temperature: -30℃-+60℃ storage Humidity: 10-90%(non-condensation) |
Dimension |
115*94*27mm(length*width*height) |
Net weight |
≤0.2Kg |
