| Type: | Steel Frame & Purlin Machine |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 1 year |
| Certification: | SGS,CNAS |
| Weight: | 12000KG |
| Dimension(L*W*H): | 11000*1200*1500 |
| Power(W): | 20KW |
| Voltage: | 380V/50HZ 3Phase |
| Model Number: | KING BOX C+U90-305 |
| Brand Name: | XHH |
| Place of Origin: | China (Mainland) |
| Production Capacity: | 0-1200 Meter/Hour |
| Work Pressure: | 235---550Mpa |
| Condition: | New |
| Forming Steps: | 19 Steps |
| Decoiler: | 3.8T Hydraulic Decoiler |
| Purlin Profile Combination: | C+U or C+C |
| Shaft Material: | 40Cr |
| Roller Material: | SKD11 |
| Cutting Blade Material: | SKD11 |
| Control System: | Windows 7 |
| Raw Material: | G 300-G 550 GI\GL Sheet |
Quick Details
Specifications
Light Gauge Steel Components Forming Machine for sale
1. Specifications of the C+U 90-305 Steel Frame & Purlin Machine

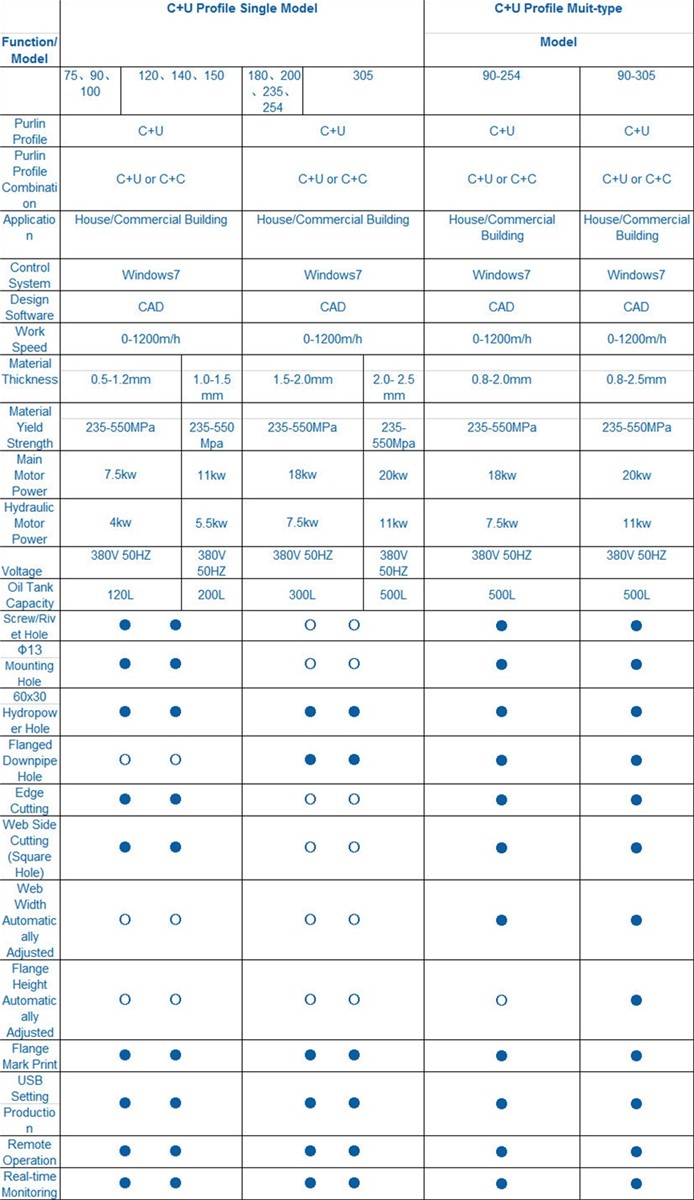

1).Main Techincal Data:
2). Main Accessories:
(1).Main Purlin Forming Machine;
(2).5 Tons Hydraulic Uncoiler;
(3).Auto Guide Device;
(4).Hydraulic System;
(5).Design Software(Vertex Systems);
(6).Hydraulic Punching Device;
(7).Hydraulic Pre-cutting Device;
(8).Hydraulic Post-cutting Device;
(9).PLC Computer Controlling System with Touch Screen;
(10).Automatic Printing device;
(11).Run Out Table 4m;
(12).Tools;
(13).Operation Manual.

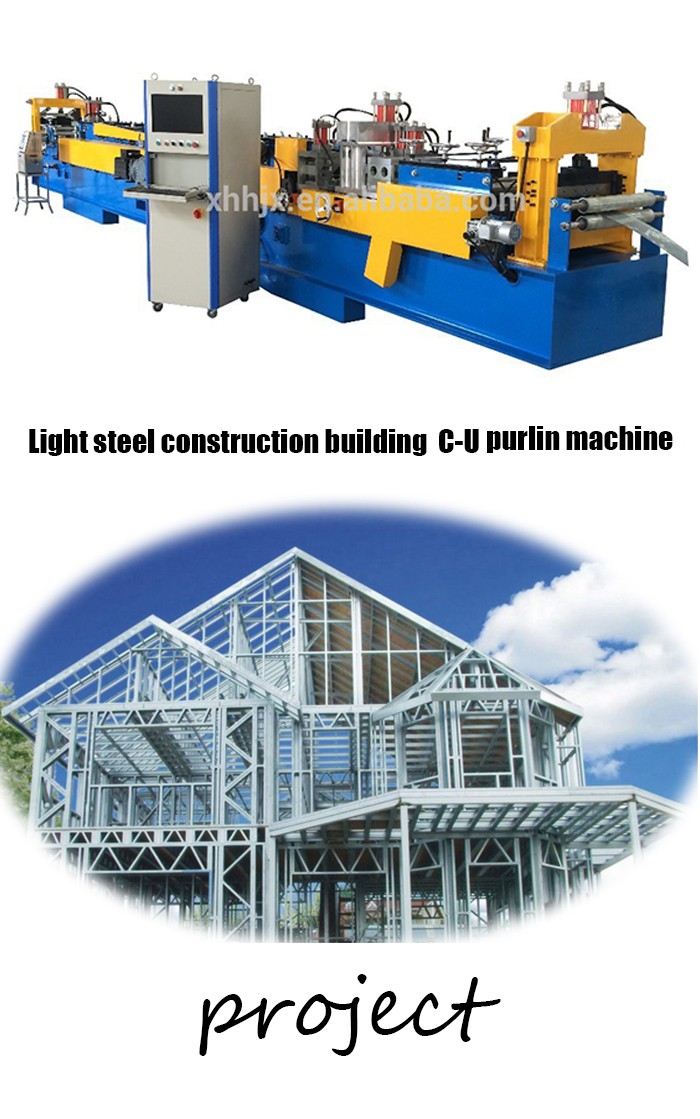

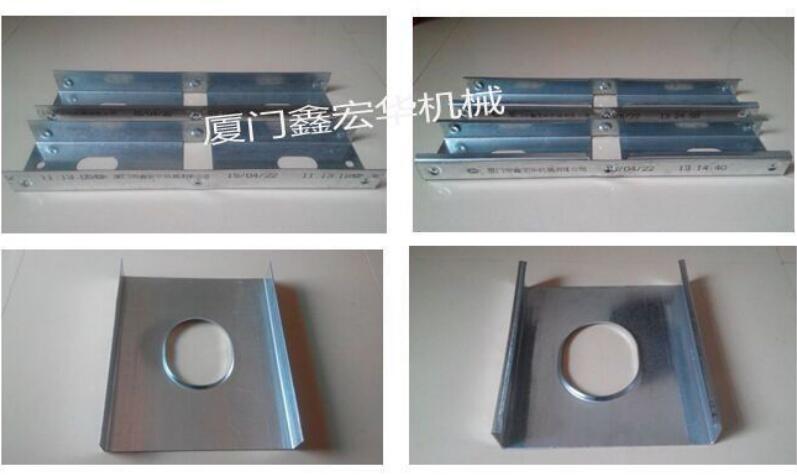

2. Pictures of the C+U 90-305 Steel Frame & Purlin Machine
3. Certifications of Product

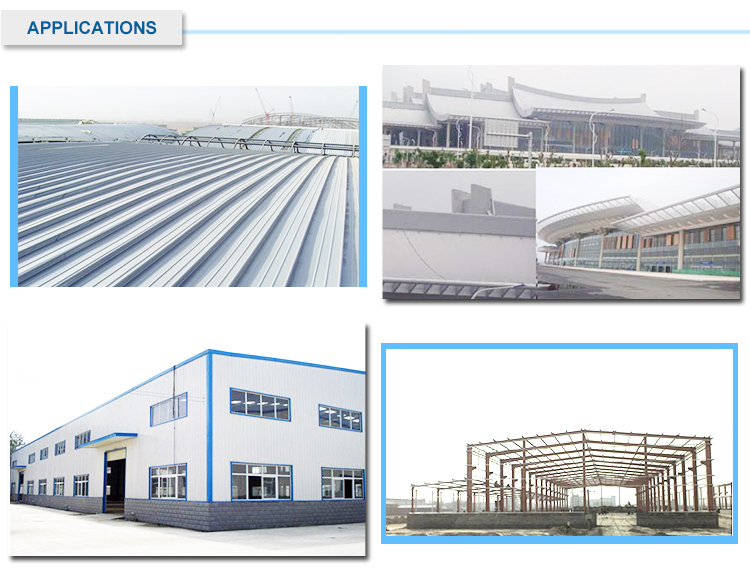

4. Applications of Product
5.Company Introduction
Xiamen XinHongHua Machinery Co.,LTD.founded in 2004, specialized in the production of roll forming machines, is a collection of product research and development design, manufacture, installation, debugging, training and other comprehensive ability.Our main machines are:Al- Mg- Mn Straight & Tapered Standing Seam Roofing Forming Machine, Fully Automatic Curving Machine, Fully Automatic Adjustable C Purline forming machine, Automatic Interchange C, Z Purline Machine, Flattening Slitting Cutting Machines,Colored Steel Roofing Panel Forming Machine,Tile Roofing Machine,Floor Decking Machine and Highway Rail Forming Machines, etc.
6.Our advantage
a.We as a manufacturer are Specialized in all kinds of cold roll forming machine since 2004.So for the design and produce there are much experience and professional people.
b.Customers'design, color and logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.
c.Schneider PLC system:Ensuring high accuracy and easy to operate!Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.
d.Our machines exported to the Southeast Asia, Middle East, Africa, North & South America more than twenty countries and regions.We have professional team, complete production system, high quality products, good service.
e.Within the ONE-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.
Thank you for your attention!
