| Gender: | Male |
|---|---|
| Application: | Power |
| Type: | Adapter |
| Brand Name: | driflex |
| Color: | silver |
Quick Details
Specifications
Connector body with hexagonal wrench surface, thread ISO metric in accordance with EN60423 or thread NPT in accordance with ANS/ASME B1.20.1-1983, hexagonal pressure nut, sealing ring and ferrule
Description:

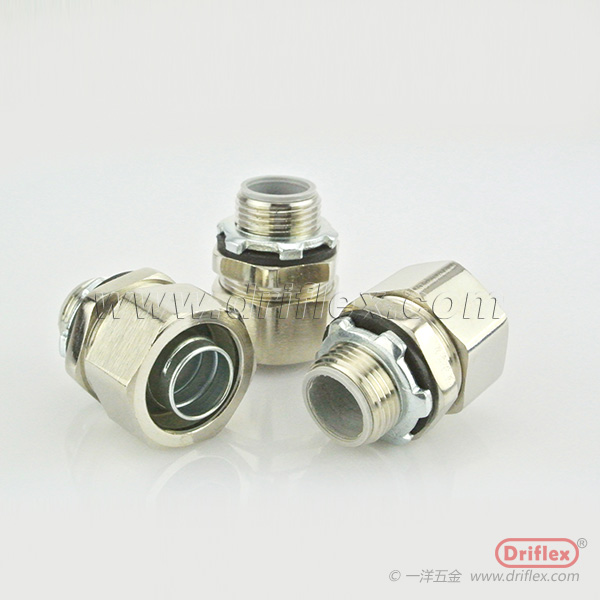

Stainless Steel Conduit Fittings-Stainless Steel/Straight Female
Structure:
Connector body with hexagonal wrench surface, thread ISO metric in accordance with EN60423 or thread NPT in accordance with ANS/ASME B1.20.1-1983, Comply with stands AS/NZS 2053. 8, hexagonal pressure nut, sealing ring and ferrule.
Material:
- Connector body - stainless steel 304 / 316
- Hexagon pressure nut -stainless steel 304 / 316
- Sealing ring - Nylon 66
- Ferrule - Galvanized steel
Features:
- Simple, one piece installation provides a quick and reliable liquid-tight seal
- IP rating from IP40 to IP66/67/68 in combination with the corresponding flexible conduits
- High mechanical strength
- Highly liquid-tight and dustproof
- Vibration and tensionproof
- Inherently low fire hazard
- Covering of the conduit ends
- Temperature range from -40oC to +150oC
- Available in straight, 45oand 90oBodies
- Available in ISO Metric and NPT, PF, PG, BSP etc. Threads
