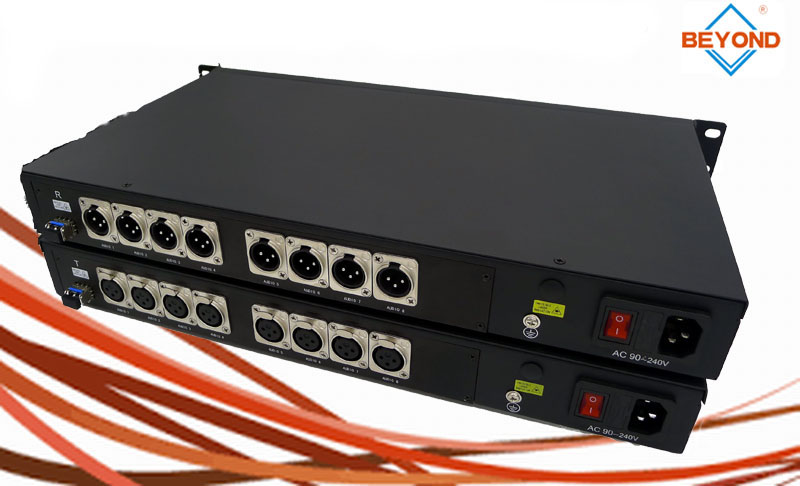

8 ch balanced audio over fiber series support 8 Channel balanced audio 16-bit digitally encoded broadcast quality balanced audio over one multi-mode or single-mode optical fiber. these fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST, SC or LC optical connectors is optional.

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.

Opitcal:

Wavelength	1310nm&1470nm~1610nm
Output Power	-9~ -3dBm /  -5~0dBm
Optic fiber	50/125u multimode, 62.5/125u multimode, 9/125u single mode
Rx sensitivity	-25dBm
Optical connector	FC, ST, SC, LC(optional)
Distance	0~500M (MM)  /  0~20KM/40KM/60KM/80KM  (SM)

Balanced Audio

Number of Channels	8
Input Connector	XLR(female)
Output Connector	XLR(male)
Input / Output Impedance	10K Ohm
Input capacitance LINE inputs	10 pF
Max input/output voltage	3.0Vp-p
Frequency Response	10 Hz24kHz @3dB
Sample Rates from	48kHz
SNR	> 80dB

Electrical & Mechanical

Power Adapter:	AC 90V~240V
Power Consumption:	< 8W
Installation	19'' 1U rack-mount chassis
Shipping Weight:	(include Transmitter & Receiver ) 7kg

 Environmental

Operating Temperature:	-20C ~ +75C
Storage Temperature:	-40C ~ +85C
Relative Humidity:	0% ~ 95% (non-condensing)
MTBF:	>100,000 hours
