Materials: carbon steel

Corrosion Form: hot-dipped galvanized or paint

Features:

It can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations.

Main markets:

Australia, European countries,Canada,AmericaandAsiacountries.

Description:

-1.8mhigh with 6 bars/rails or1.6mhigh with 5 bars/rails.

-Complete with caps & foot plates.

-Holes for ground pin on one leg of each panel.

-Elongated lug holes in brackets, for ease when connecting

Cattle panel specification:

Panel height x length	1.8x2.07m, 1.8x2.09mm, 1.8x2.4m, etc

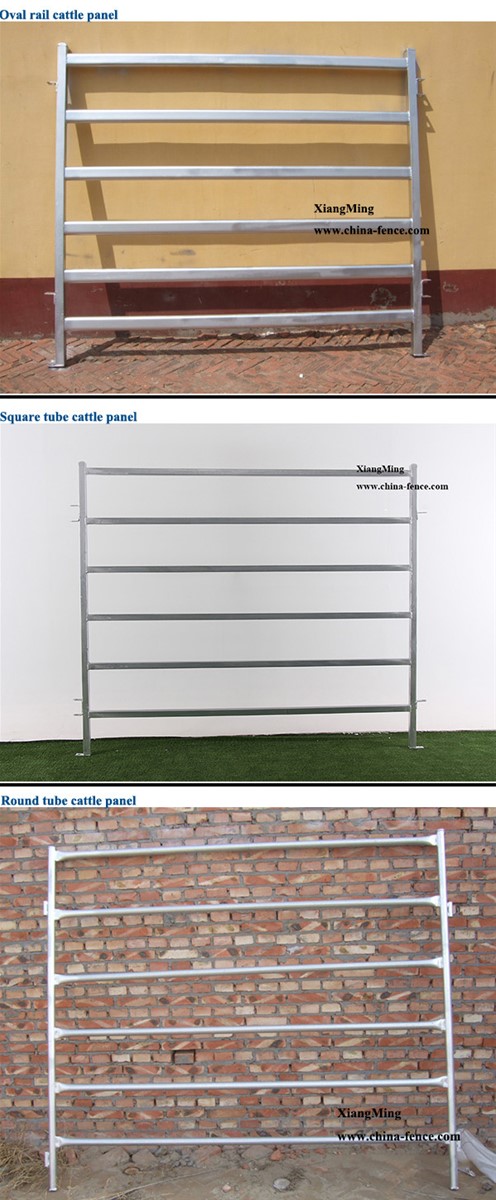

Horizontal rail	Oval tube rail: 30x60mm, 40x80mm, 42x115mm Square tube rail: 40x40mm, 50x50mm Round tube rail:42mmO.D
Pole style & size	SHS40mm/50mm, CHS42mmO.D
Material	Pre hot dipped galvanized carbon steel
Package	in bulk or steel pallet

Cattle panel production flow:
Cut steel tubes - tube welding - polishing - anti rust painting - silver spray painting - quality control - packing - container loading

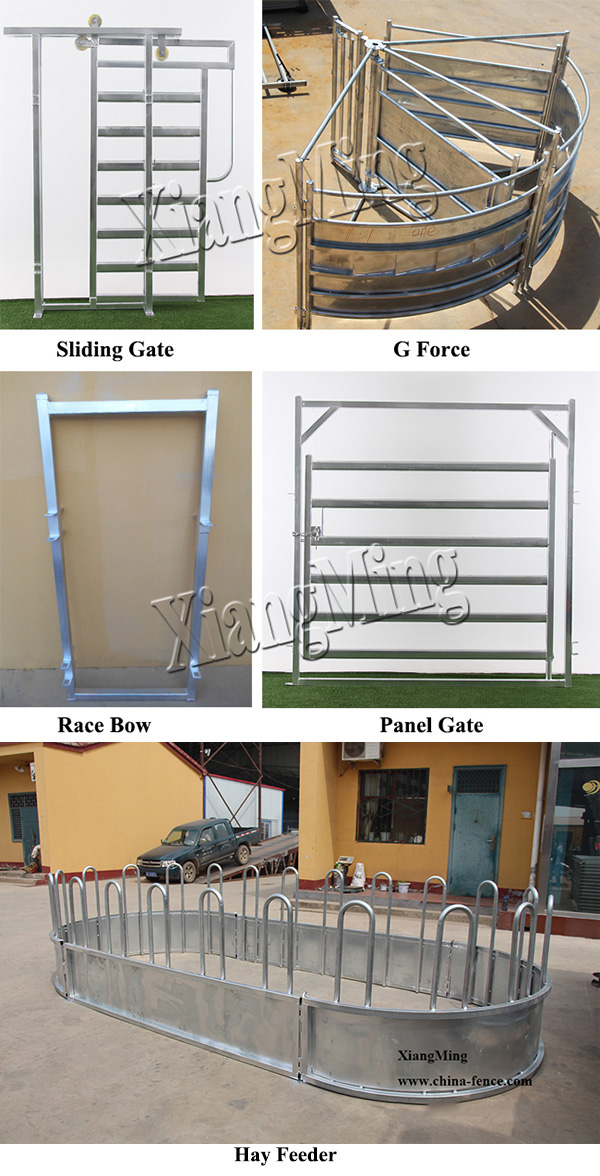

Other livestock products are also available:

Specification:

Cattle panel gate	H2.25mx L2.2m
Sliding gate	H2.15mx L1.21m
Race bow	H1.8mx L0.6m
Hay feeder	L4.5mx W2.2m
G force	Radius2.4m, H2m

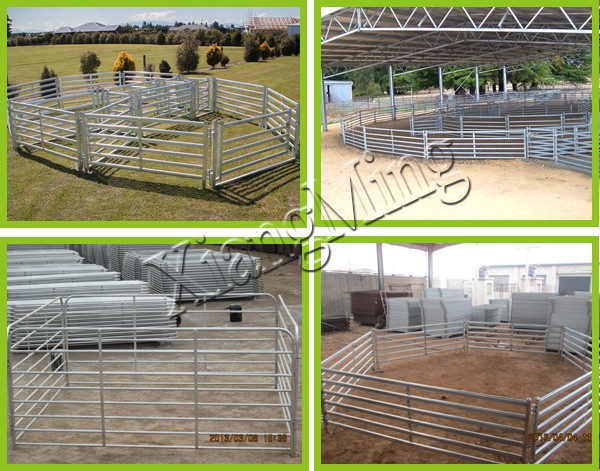

Application:

1. Portable: easy fast to handle (set up, remove and put down), makes the fence panel very flexible.

2. Robust: interlocking system makes the fence very stable quality steel and fully welding makes the panel more stronger, heavy duty and anti-broken. high zinc or pvc coated make the fence durable.

3. Environment protecting: connection with welded to bracket lugs and joining pins, no need to dig holes or lay foundation. And it benefits grassland protection.

4. Livestock protection: no sharp edge, very smooth welding spot finished.

5. Cost-effective: give your corral years of service and minimal maintenance at a low initial cost.
