Our YESM V Cut PCB Separator Application

LED Panel,Fiber Board,Aluminium Plate,Aluminium Substrate,Copper Substrate FR4,Glass Fiber Board

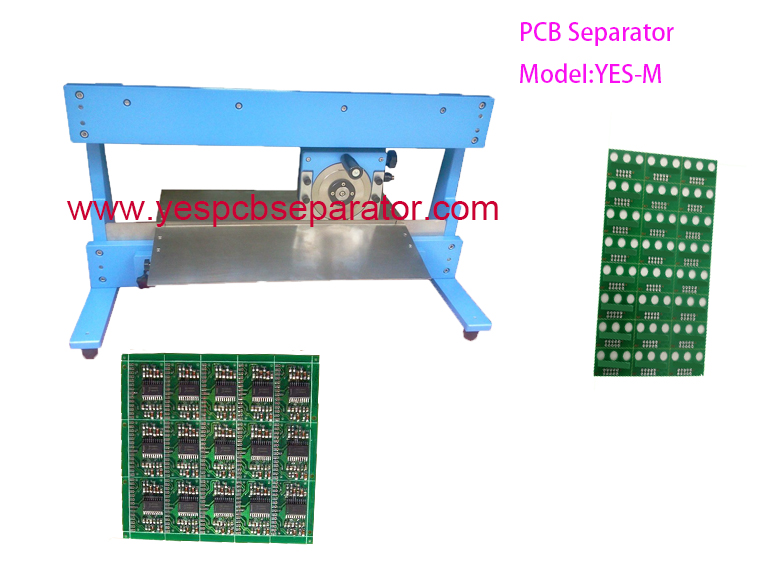

CAB PCB Depanelizer MAESTRO 4M YESM PCB Separator Features:

1. Round knife, manually cutting against lower linear knife,
for reduced stress
2. Separate pre-scored PCB assembly without stress on either
PCB or component
3. Separating speed is adjusted by handwheel
4. Handle Intermittent scoring or cut-outs
5. Board with projected component can be cut precisely
6. Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable.
7. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out.

YESM PCB Depaneling Machine Specification:

Size:  787x400x436 mm
the separate size:  460/700/1000/1200mm(Customized)
Minimize Speed: Manual
Minimize thickness: 0.6-3.5mm
Machine Weight: 55Kg

Customers FAQ about PCB Separator YESM:

1. Q:Do you have any certification for this machine?
   A:YES,We have CE ISO FCC ROHS etc.

2. Q:What is warranty of the machine?
   A:1 year.

3. Q:how do you pack the machine?
   A:We fix the machine on the plywood base with screws to ensure safe transportation.

4. Q:What is life time of machine blades?
   A:about 6-12 months.

5. Q:What is material of blades?
   A:Japan high speed steel SKH-9

6. Q:Can the blades be sharpened?
   A:Yes, they could be re-sharpened for 2-3 times.

7. Q:how do you offer oversea service?
   A:We could send engineer to do installation and training for client if needs.

8. Q:Can we see your machine in our country?
   A:Yes, we would like to offer contact details of our clients who are using our machines.
