PRODUCT FEATURES
Compliant with 100GBASE-LR4
Support line rates from 103.125 Gbps to 111.81 Gbps
Integrated LAN WDM TOSA / ROSA for up to 10 km reach over SMF
Digital Diagnostics Monitoring Interface
Duplex LC optical receptacle
No external reference clock
Single 3.3 V power supply
Case operating temperature range:0°C to 70°C
Power dissipation < 6W
APPLICATIONS
Local Area Network (LAN)
Data Center
Ethernet switches and router applications
STANDARD
Compliant to IEEE 802.3ba
Compliant to CFP MSA CFP4 Hardware Specification
Compliant to CFP MSA Management Interface Specification

ORDERING INFO.

Part No.

Product                   Description

Connector

Data Rate (Gbit/s)

Reach

TX

Tx Wavelength

RX

TX_Min (dBm)

TX_Max (dBm)

Rx Sensitivity (dBm)

Power Consumption

Temperature (deg C)

CFP2-100G-LR4-10

CFP2 LR4

LC

4X25G              4X28G

10Km

LAN

1295                          1300                           1305                        1310

LAN

-4.3

4.5

<-10.6

<6w

C

CFP4-100G-LR4-10

CFP4 LR4

LC

4X25G              4X28G

10Km

LAN

1295                          1300                           1305                        1310

LAN

-4.3

4.5

<-10.6

<6w

C

CFP-100G-LR4-10

CFP LR4

LC

4X25G              4X28G

10Km

LAN

1295                          1300                           1305                        1310

LAN

-4.3

4.5

<-10.6

<16w

C

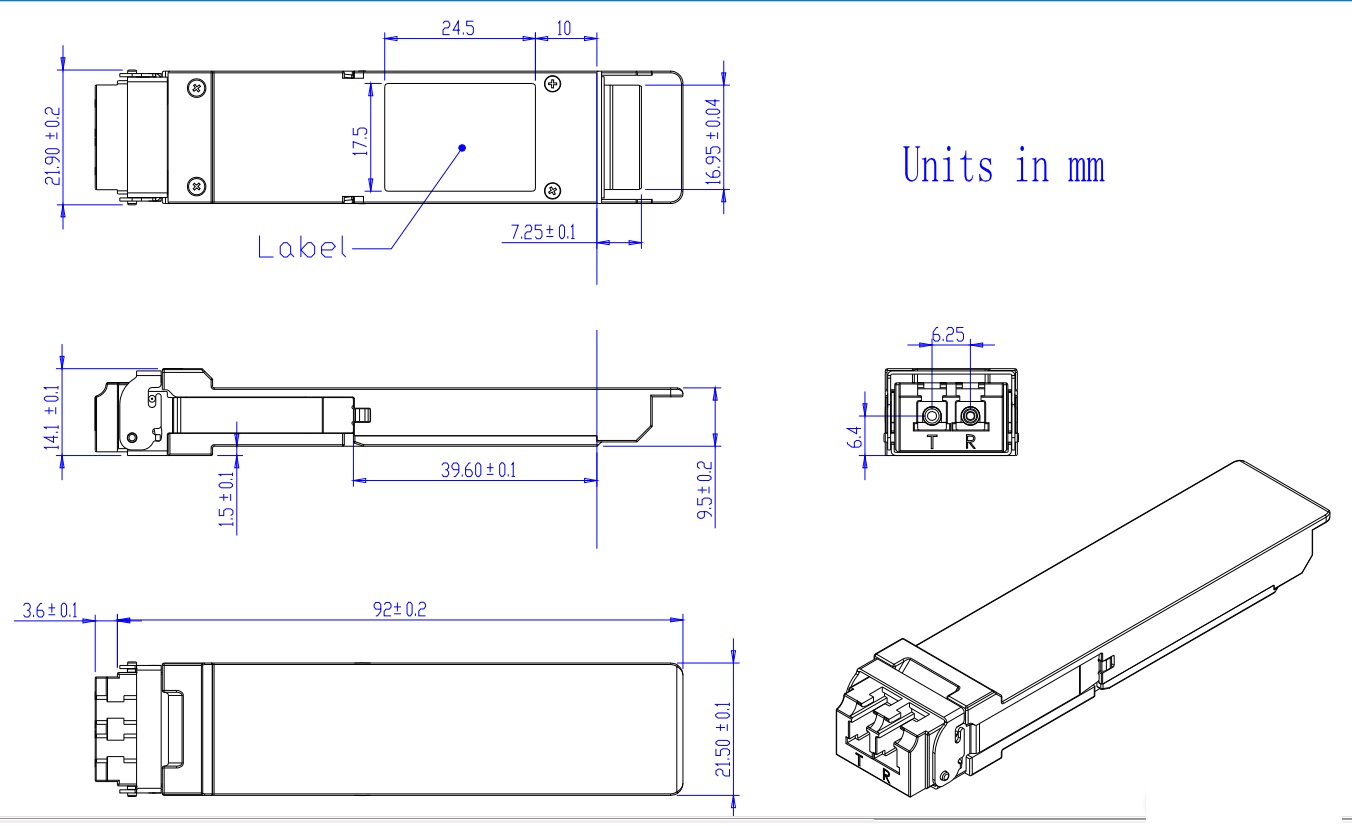

PRODUCT DIMENSSIONS
