| Brand Name: | OEM/Beyondopto |
|---|---|
| Wavelength: | 1210/1550 |
| Data Rate: | 10G |
| warranty: | 3years |
| Connector: | LC/SC/ST |
| Model Number: | BY-HDMI-K4K |
| Place of Origin: | China (Mainland) |
| Compliance: | DVI v1.0, HDMI v1.4, HDCP v1.4 |
| Maximum Pixel Clock Frequency: | Supports pixel clock rates up to 340 MHz |
| Maximum Video Bit Rate: | Supports digital signal bit rates up to 3.4 Gbps per color |
| Supported PC Resolutions: | Supports resolutions up to 4096x2160 / 24p, 30p |
| Optical Transmitter: | Laser Source: 850nm VCSEL/ 1310nm DFB / 1550nm DFB |
| HDMI Input / HDMI Output: | 19-pin female HDMI connectors |
| Optical Input / Output: | 2x female LC optical connectors |
| Maximum Power Consumption: | TX Unit: 3.5 watts RX Unit: 3.5 watts |
Quick Details
Specifications

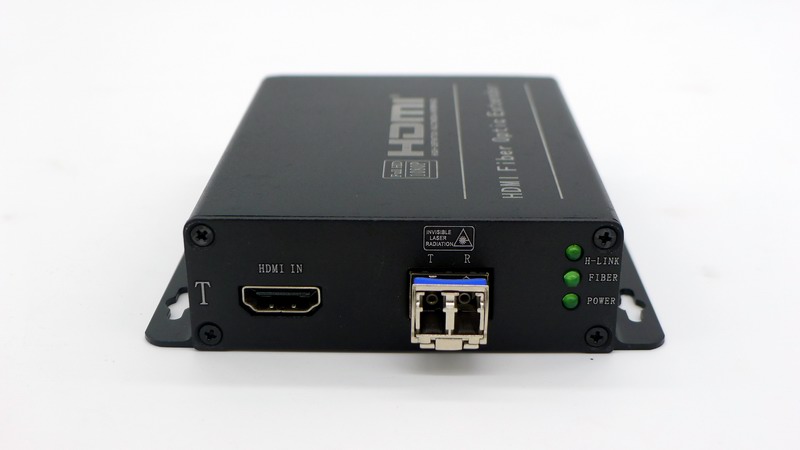

4K HDMI Fiber Optic Extender includes a transmitter and a receiver, which is a high-speed, HDCP compliant fiber optic transport system capable of distributing high resolution 4K HDMI or DVI signals over fiber cable while maintaining flawless image quality. An 4K HDMI input signal from a source device such as a set-top box or Blu-Ray player is converted into light pulses by an optical transmitter module for transmission over two (2) strands of fiber optic cable. On the display side, an optical receiver module converts the light pulses back to an 4K HDMI signal for display on a monitor or projector.
the 4K HDMI Fiber Optic Extender supports optical links using either multi-mode or single-mode fiber. these features make the equipment a powerful solution for digital display applications that require flawless signal quality over extremely long cable runs.
Product feature:
1, Supports 4K (UHD) resolution formats up to 4096x2160 / 24p, 30p
2, Max extension distance 300M(OM3 MM fiber)/10KM(SM fiber)
3, Supports 1080p resolution with color depth up to 16 bits/pixel
4, Supports 4K HDMI bit-rates up to 3.4 Gbps/color,10.2 Gbps total
Product specification:
|
Performance: |
|
|
Compliance |
DVI v1.0, HDMI v1.4, HDCP v1.4 |
|
Maximum Pixel Clock Frequency |
Supports pixel clock rates up to 340 MHz |
|
Maximum Video Bit Rate |
Supports digital signal bit rates up to 3.4 Gbps per color |
|
Supported Color Depth |
Supports 1080p resolution with up to 16 bits/pixel |
|
Digital Audio Support |
Dolby Digital, Dolby Digital Plus, Dolby True HD and DTS-HD Master Audio |
|
Supported HDTV Formats |
Supports all HDTV resolutions including 1080p, 2K and 4K (UHD) formats |
|
Supported PC Resolutions |
Supports resolutions up to 4096x2160 / 24p, 30p |
|
Optical: |
|
|
Optical Transmitter |
Laser Source: 850nm VCSEL/ 1310nm DFB / 1550nm DFB |
|
Optical Receiver |
PIN Photo Diode O/E Converter |
|
Fiber Cable Type / Max. Length |
50/125 OM3 MM fiber/ 300 meters |
|
Connections: |
|
|
HDMI Input / HDMI Output |
19-pin female HDMI connectors |
|
Optical Input / Output |
2x female LC optical connectors |
|
Mechanical: |
|
|
Construction |
Extruded Aluminum enclosure with black anodized finish |
|
Dimensions |
104 mm x 104 mm x 28 mm |
|
Weight |
700g per pair |
|
Environmental: |
|
|
Operating Temperature |
0 to +50 C |
|
Storage Temperature |
-20 to +70 C |
|
Humidity (storage / operating) |
10% to 90% (non-condensing) |
|
Power Requirements: |
|
|
Power Source |
both Tx and Rx units must be powered using the supplied external AC power adapters |
|
External AC Power Adapter |
Input: 100~240VAC / 50-60Hz, 0.5A Output: 5VDC, 2.0A |
|
Maximum Power Consumption |
TX Unit: 3.5 watts RX Unit: 3.5 watts |
