| Screen Dimension: | 1.8'' |
|---|---|
| Model Number: | LMT018DNBFWD |
| Brand Name: | TOPWAY |
| Place of Origin: | China (Mainland) |
| Resolution: | 128x160 |
| Size: | 1.8 inch |
| Interface: | MCU |
Quick Details
Specifications
1.8 inch 128xRGBx160 TFT
-QVGA 65K colors
-8-bit MCU Interface
-Single Power Supply
-Low Power Consumption
-Built-in TFT Controller
--LED Backlight Driver and touch panel optional.
-QVGA 65K colors
-8-bit MCU Interface
-Single Power Supply
-Low Power Consumption
-Built-in TFT Controller
--LED Backlight Driver and touch panel optional.
| Item | Description |
| Product Name | 1.8 inch TFT LCD Module with touch screen |
| Model No. | LMT018DNBFWD |
| Number of dots | 128 x 3(RGB) x 160 |

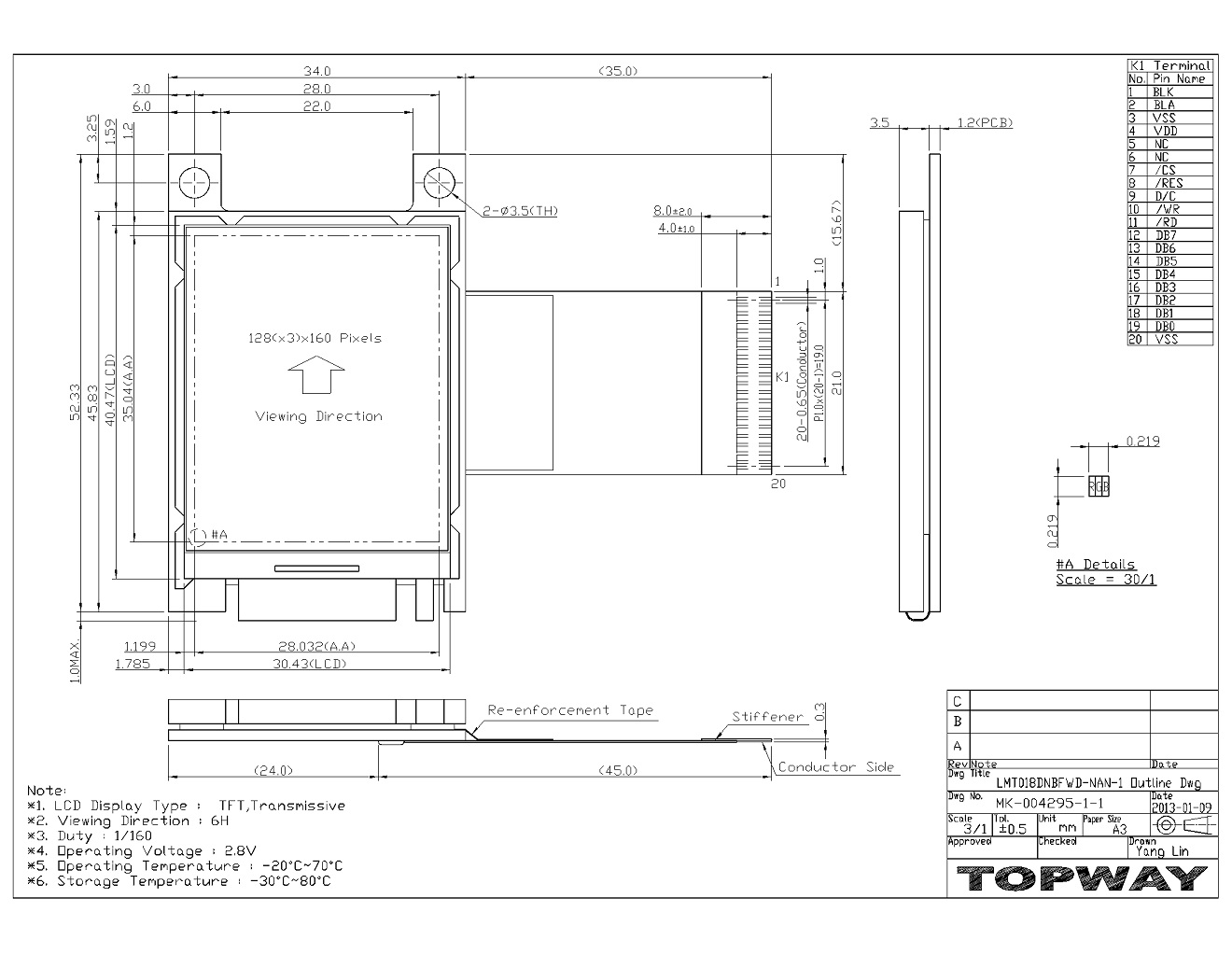

| Outline Dimension(mm) | 34.0 x 52.33 |
| Active Area(mm) | 28.032 x 35.04 |
| Backlight | LED |
| Power supply | 2.8V |
| Interface | 8-bit data MCU |
| Color Depth | 65K |
| Pixel Pitch(mm) | 0.2025 x 0.2025 |
| Display Mode | Transmissive / normal white |
| Viewing Direction | 6 o'clock |
| Touch panel | Optional |
| Operating Temp | -20o C~70o C |
| Storage Temp | -30o C~80o C |
