| Nominal Capacity: | 100ah |
|---|---|
| Weight: | 29.5kg |
| Size: | 330*172*214mm |
| Usage: | UPS |
| Brand Name: | KANGLIDA |
| Maintenance Type: | Free |
| Sealed Type: | Sealed |
| Voltage: | 12v |
| Model Number: | CA121000 |
| Place of Origin: | China (Mainland) |
| Nominal Voltage: | 12v |
| Battery Type: | sealed lead acid battery |
| color: | black |
| cerificate: | CE&UL |
| shell material: | ABS engineering plastic |
| self-discharge: | low |
| warranty: | 1 year |
Quick Details
Specifications
the following example is for you reference.

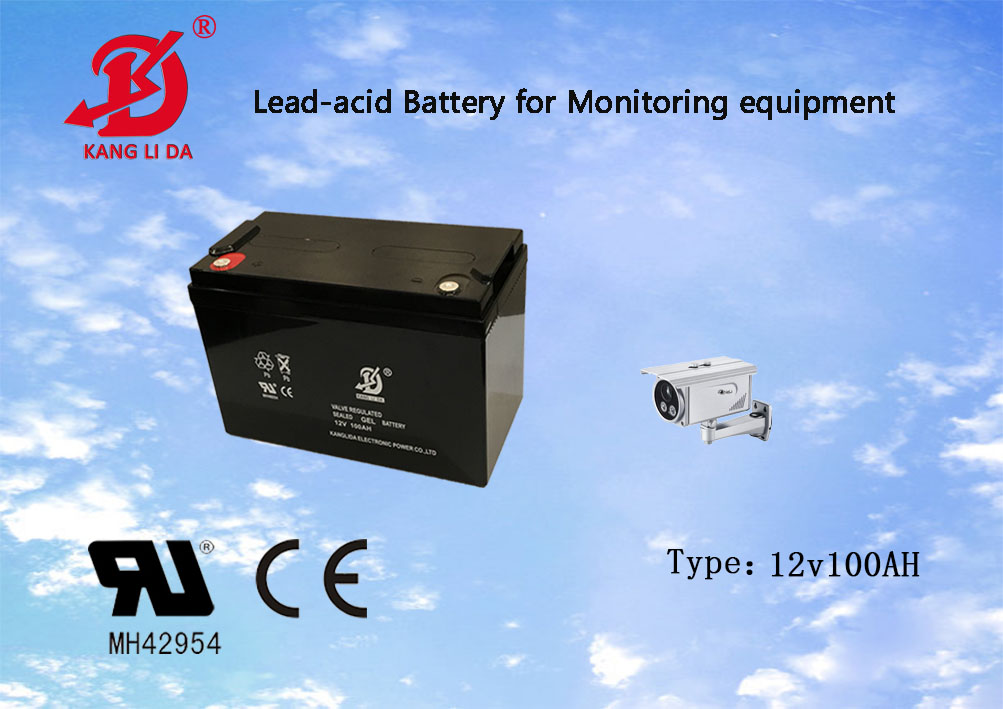

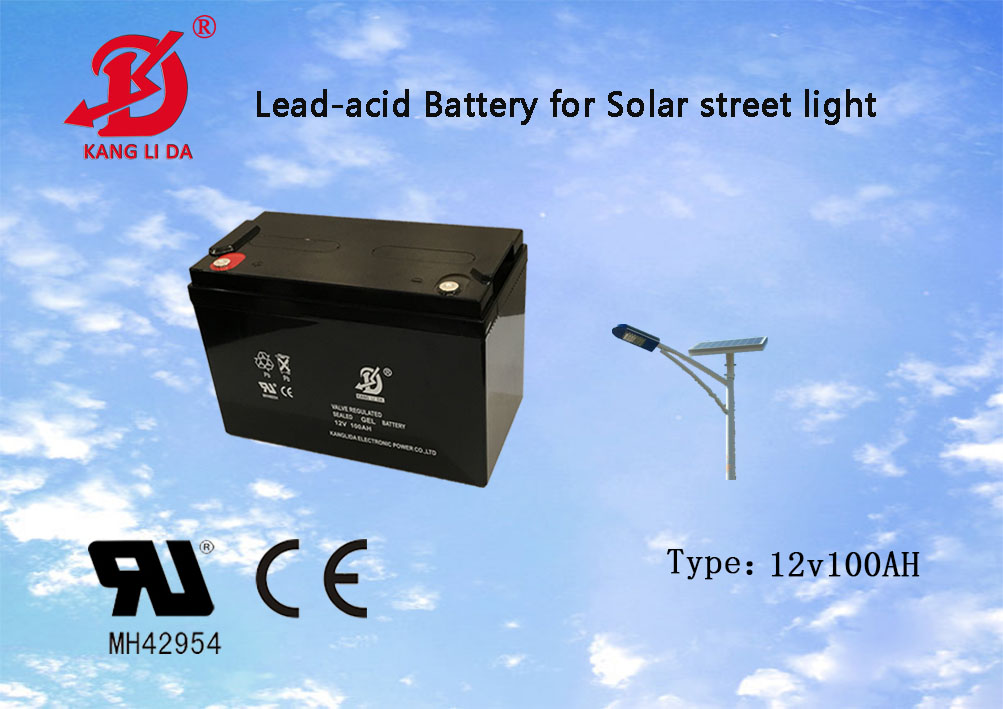

Battery picture
Features:
Maintenance-free operation Compact design
10 years design time (at 25) Stable quality and high reliability
Technical details:
UPS
Fire alarm and security systems
DC power supply Auto control system
Emergency lighting
Operation method of useage: Type Specification Nominal Voltage 12v(6cells) Nominal Capacity 100ah (10hrs, 25/77F) 85Ah (5hrs, 25/77F) 60Ah (1hrs, 25/77F) Dimension Length:3302mm Width:1722mm Container Height:2142mm Total Height(with Terminal):2203mm Approx Weight 29.0kg Terminal T5 or F7 Container material ABS Max.Discharge Current 1000A(5s) Internal Resistance Approx 5.6m? Operation Temp.Range Discharge:-15-55(5-124F) Charge: 0-40(32-104F) Storage: -15-50(5-107F) Nominal Operating Temp.Range 253(775F) Cycle Use(CCA) 14.4V-14.8V(25/77F) Coefficient:30mv/ (Initial charging current less than 16.5A) Standby Use 13.5V-13.8V(25/77F) Coefficient:20mv/ (No limit on Initial Charging Current) Capacity affected by Temp. 103% 40(104F) 100% 25(77F) 86% 0(32F)
Package:packing in carton , 1pcs per carton
