| Usage: | Door |
|---|---|
| Model Number: | 56 |
| Place of Origin: | China (Mainland) |
| Alarm output: | Dry contact NC |
| Application: | Door/window |
| Material: | Metal |
Quick Details
Specifications

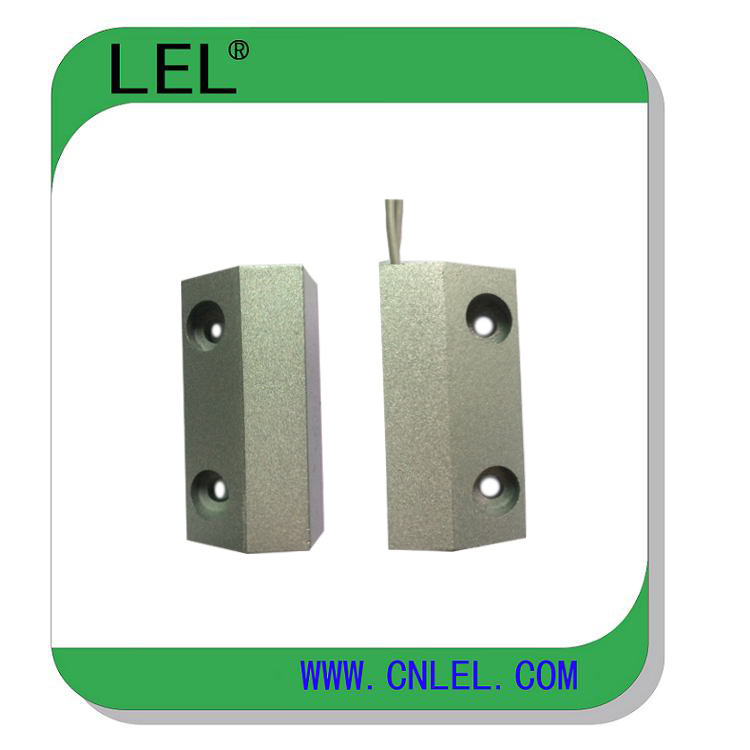

High Quality Metal Magnetic Door Contact Sensor Alarm
Zinc alloy door/window magnetic contact sensor, work with any hardwired zones alarm panel. this product provides a normally closed circuit which will be switched to be open when it's triggered by moving the magnet part apart from sensor part. Usually it must be connected with a hardwired alarm control panel on the hardwired alarm zone, which is able to read the circuit state change on this door contact sensor and report to alarm control panel to activate the alarm.
Specifications:
Dimension:49 * 25 * 15mm
Gap:30-40mm
Contact Rate:0.5A/100V/10W
Material: zinc alloy
Output:NC
Zinc alloy door/window magnetic contact sensor, work with any hardwired zones alarm panel. this product provides a normally closed circuit which will be switched to be open when it's triggered by moving the magnet part apart from sensor part. Usually it must be connected with a hardwired alarm control panel on the hardwired alarm zone, which is able to read the circuit state change on this door contact sensor and report to alarm control panel to activate the alarm.
Specifications:
Dimension:49 * 25 * 15mm
Gap:30-40mm
Contact Rate:0.5A/100V/10W
Material: zinc alloy
Output:NC
