| Usage: | Door |
|---|---|
| Model Number: | 75 |
| Brand Name: | nope |
| Place of Origin: | China (Mainland) |
| Alarm output: | Dry contact NC |
| Application: | Door window |
| Material: | Metal |
Quick Details
Specifications

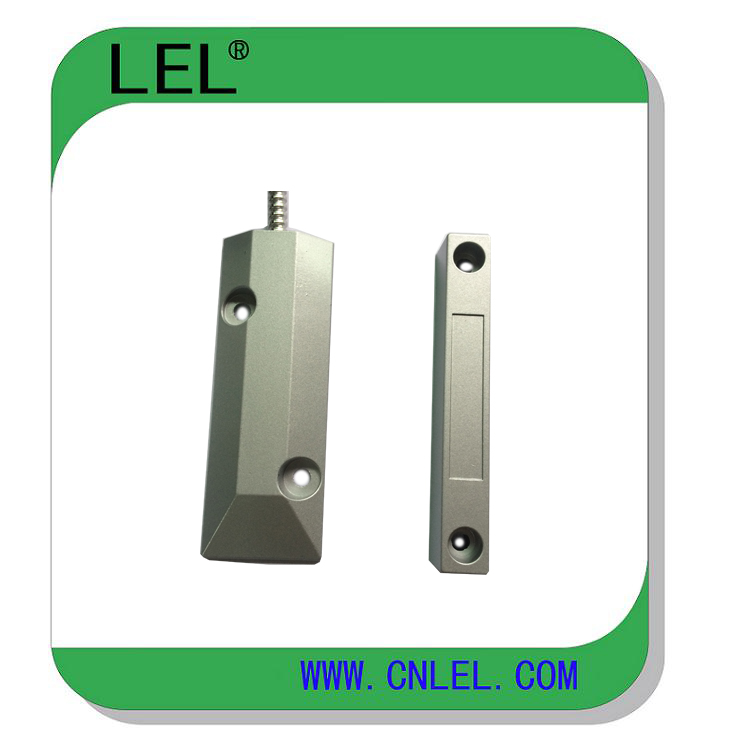

Rolling Door Magnetic Contact Sensor
Rolling door shutter door magnetic contact sensor, work with any hardwired zones alarm panel. this product provides a normally closed circuit which will be switched to be open when it's triggered by moving the magnet part apart from sensor part. Usually it must be connected with a hardwired alarm control panel on the hardwired alarm zone, which is able to read the circuit state change on this door contact sensor and report to alarm control panel to activate the alarm.
Specifications:
Dimension:106 * 38 * 10mm
Gap:50-70mm
Contact Rate:0.5A/100V/10W
Output:NC
Rolling door shutter door magnetic contact sensor, work with any hardwired zones alarm panel. this product provides a normally closed circuit which will be switched to be open when it's triggered by moving the magnet part apart from sensor part. Usually it must be connected with a hardwired alarm control panel on the hardwired alarm zone, which is able to read the circuit state change on this door contact sensor and report to alarm control panel to activate the alarm.
Specifications:
Dimension:106 * 38 * 10mm
Gap:50-70mm
Contact Rate:0.5A/100V/10W
Output:NC
