| Processing: | Other |
|---|---|
| Warranty: | 1 year |
| Certification: | CE |
| Processing: | water |
| Processing Types: | filling machine |
| Dimension(L*W*H): | 5500*3000*2500mm |
| Weight: | 3000kg |
| Power(W): | 7.5kw |
| Voltage: | 220v |
| Model Number: | QGF-300 |
| Brand Name: | XinMingTao |
| Place of Origin: | China (Mainland) |
| Condition: | New |
| mineral water filling machine: | pure water filling machine |
| water filling equipment: | water filling line |
| filling machine: | liquid filling machine |
Quick Details
Specifications

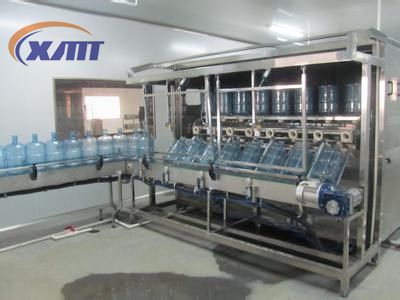

automatic 5 gallon water production line
Description
This filling line specially produces 5 gallons b
ottled drinking water, whose types(b/h)are:100 type, 150 type,200 type, 300 type, 450 type, 600 type, 900 type and 1200type. It is integrates bottle washer, filler and sealer into one unit, in order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and leaching are used in bottle washer. Washing solution can be used circularly. The sealer can seal bottle caps automatically. This line equips with water spraying device to sterilize caps of bottle sin order to ensure those caps are aseptic and healthy,also this line can automatically carry out bottle feeding washing,sterilizing,filling capping,counting and products discharging.It is a new kind of barreled water auto-producting line,which integrates mechanism,electricity and pneumatics technologies together.
Parameters
|
Model |
QGF-100 |
QGF-200 |
QGF-300 |
QGF-450 |
QGF-600 |
QGF-900 |
QGF-1200 |
|
Filling head |
1 |
2 |
2 |
3 |
4 |
6 |
8 |
|
volume |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
|
Barrel size |
￠270*490 |
￠270*490 |
￠270*490 |
￠270*490 |
￠270*490 |
￠270*490 |
￠270*490 |
|
capacity |
100 |
200 |
300 |
450 |
600 |
900 |
1200 |
|
Gas pressure |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.6 |
0.6 |
0.6 |
|
Gas consumption |
0.37 |
0.37 |
0.6 |
0.8 |
1 |
1.5 |
1.8 |
|
Moto power |
1.38 |
1.75 |
3.8 |
3.8 |
6.5/15.55 |
9.5/21.55 |
13.5 |
|
Rated voltage |
380V/50HZ |
380V/50HZ |
380V/50HZ |
380V/50HZ |
380V/50HZ |
380V/50HZ |
380V/50HZ |
|
Weight KG |
680 |
800 |
1500 |
2100 |
3000 |
3500 |
4500 |
flow chart
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
3.If we get the permission of the customer who has brought the machines from us,we can tell you our customers' contact imformation,you can go to vist their factory.
Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
2. We can offer free technical support and consultation such as design your factory,draw the factory layout and so on.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional after service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty with spare parts free.
