| Nominal Capacity: | 200ah |
|---|---|
| Weight: | 60kg |
| Size: | 522*239*218mm |
| Usage: | UPS |
| Brand Name: | kanglida |
| Maintenance Type: | Free |
| Sealed Type: | Sealed |
| Voltage: | 12v |
| Model Number: | CA122000 |
| Place of Origin: | China (Mainland) |
| Nominal Voltage: | 12v |
| Battery Type: | sealed lead acid battery |
| color: | black |
| cerificate: | CE&UL |
| Shell material: | ABS engineerng plastic |
| self -discharge: | low |
| weight: | 60kg |
| size: | 522*239*218mm |
Quick Details
Specifications
the following example is for you reference.

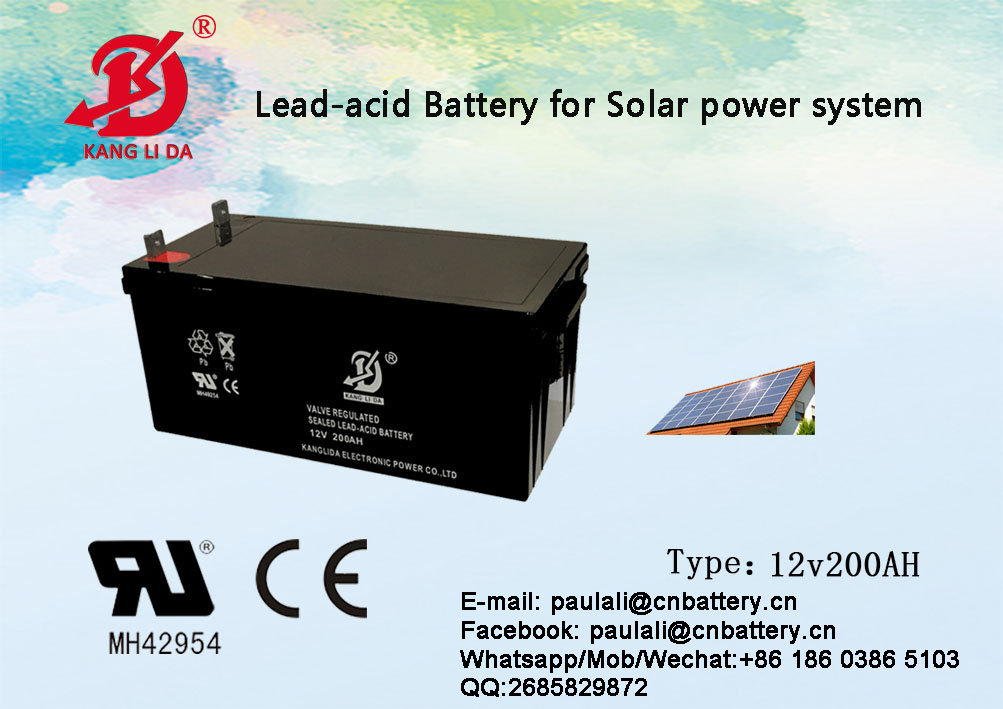

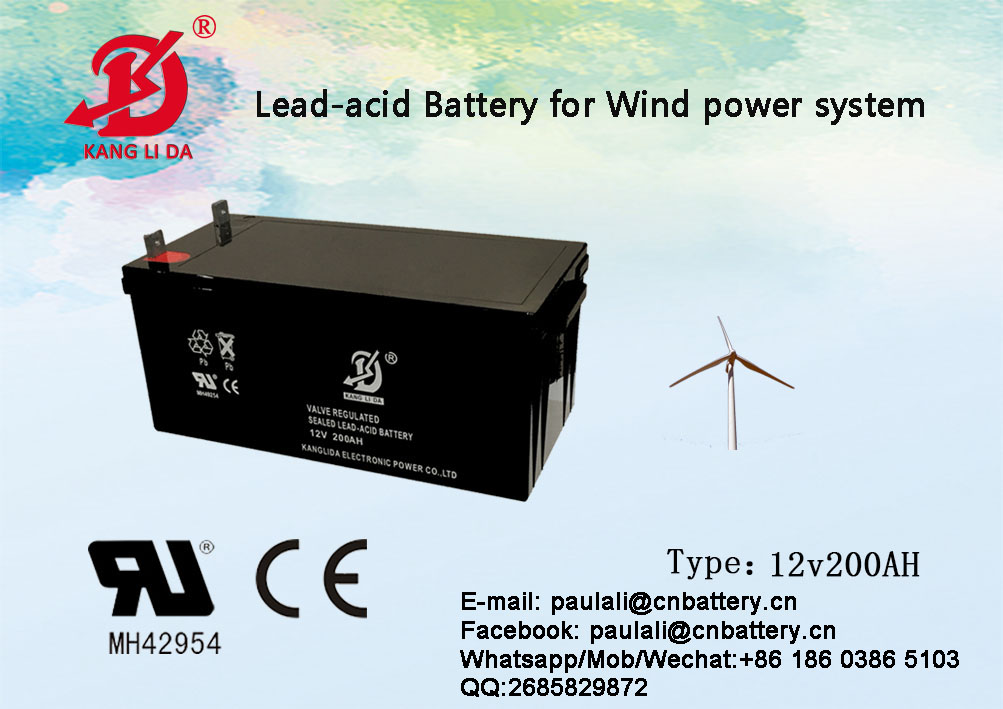

Battery picture
Features:
Maintenance-free operation Compact design
10 years design time (at 25) Stable quality and high reliab
Operation method of useage:
UPS Fire alarm and security systems
Emergency lighting DC power supply Auto control system
Solar panel system Backup power for testing and measuring instruments
Alarm and security system Electronic apparatus and equipment Communication power supply
Telecommunication system etc
Specifications: Type Specification Nominal Voltage 12v(6cells) Nominal Capacity 200ah (10hrs, 25/77F) 170Ah (5hrs, 25/77F) 120ah (1hrs, 25/77F) Dimension Length:5222mm Width:2392mm Container Height:2182mm Total Height(with Terminal):2243mm Approx Weight 61.0kg Terminal T5 or F7 Container material ABS Max.Discharge Current 2000A(5s) Internal Resistance Approx 3.2m? Operation Temp.Range Discharge:-15-50(5-122F) Charge: 0-40(32-104F) Storage: -15-40(5-104F) Nominal Operating Temp.Range 253(775F) Cycle Use 14.4V-14.8V(25/77F) Coefficient:30mv/ (Initial charging current less than 16.5A) Standby Use 13.5V-13.8V(25/77F) Coefficient:20mv/ (No limit on Initial Charging Current) Capacity affected by Temp. 103% 40(104F) 100% 25(77F) 86% 0(32F)
Package: packing in carton
