| Brand Name: | GLSUN |
|---|---|
| Wavelength: | 1527,1568 |
| Data Rate: | 25ms |
| warranty: | 1 year |
| Connector: | fc/pc, fc/apc |
| Model Number: | SUN-MCS-8x16 |
| Place of Origin: | China (Mainland) |
| Downlink Port Number: | 8M |
| Uplink Port Number: | 16N |
| Operation Wavelength Range: | 1527,1568 |
| Test Wavelength: | 1550nm |
| Insertion Loss 1,2: | 16dB |
| Insertion Loss Uniformity: | 0.5dB |
Quick Details
Specifications
Introduction

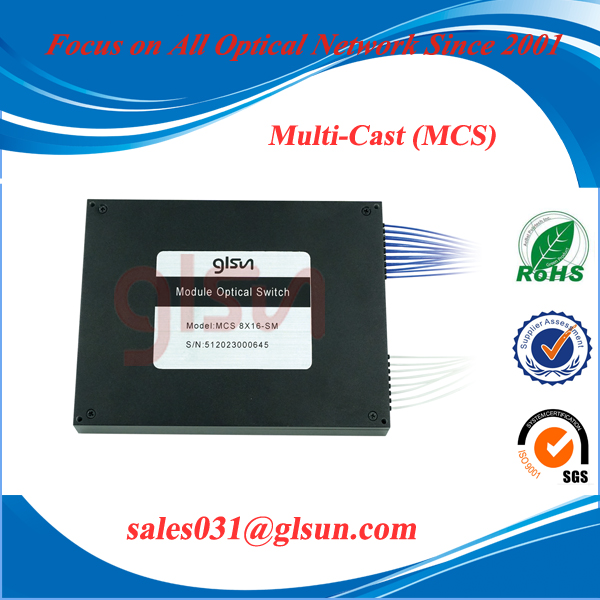

Multicast Switch (MCS) series are designed for next generation of CDC-ROADM system based on PLC splitter and MEMS optical switch technology. the product is an integrated module containing 8x16 type MCS and electronic control unit inside. the module could implement the function that any one of the optical input could be routed to any one of the output ports. It could be used at key locations in the CDC-ROADM optical network.
Features
ADD & DROP in one module
Hit-less switching
Low insertion losee
Low power dissipation
Applications
DWDM Networks
ROADM Systems
Specifications
Parameters |
Units |
SUN-MCS-8X16 | ||
Min. |
Typ. |
Max. | ||
Downlink Port Number |
M |
8 | ||
Uplink Port Number |
N |
16 | ||
Operation Wavelength Range |
nm |
1527 |
|
1568 |
Test Wavelength |
nm |
|
1550 |
|
Insertion Loss 1,2 |
dB |
|
|
16 |
Insertion LossUniformity |
dB |
|
|
1.5 |
Polarization Dependent Loss |
dB |
|
|
0.5 |
Wavelength Dependent Loss |
dB |
|
|
0.5 |
Polarization Mode Dispersion |
ps |
|
|
0.5 |
Block State Insertion Loss |
dB |
40 |
|
|
Return Loss |
dB |
45 |
|
|
Port ISolation |
dB |
40 |
|
|
Port SwitchTime |
ms |
|
|
25 |
Repeatability |
dB |
|
0.05 |
|
Maximum Optical InputPower |
dBm |
|
|
23 |
Durability |
Cycles |
109 |
|
|
Power Consumption |
W |
|
|
10 |
Operating Temperature |
-5~+60 | |||
Storage Temperature |
-40~+85 | |||
Dimension |
mm |
220(L) x120(W) x15(H)0.2 | ||
Note:1 Within operating temperature and SOP. 2 Excluding connectors. | ||||
Ordering Information
SUN-MCS-8x16-A-B-C-D-E
A |
B |
C |
D |
E |
Fiber Type |
Test Wavelength |
Tube Type |
Fiber Length (Include connector) |
Connector |
SM:SM,9/125 X: Others |
1550:1550nm X:Others |
90:900um X: Others |
05: 0.5m5cm 10: 1.0m5cm 15: 1.5m5cm X: Others |
OO: None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC LP: LC/PC LA: LC/APC X: Others |
