After-sales Service Provided: | Engineers available to service machinery overseas |
---|---|
Warranty: | 1 year |
Certification: | CE |
Dimension(L*W*H): | 8650*650*1240mm |
Weight: | 300kg |
Power(W): | 3.8kw |
Voltage: | 220v |
Type: | |
Usage: | |
Model Number: | DP-8 |
Brand Name: | XinMingTao |
Place of Origin: | China (Mainland) |
Condition: | New |
bottle sterilizer: | juice filling line |
Quick Details
Specifications

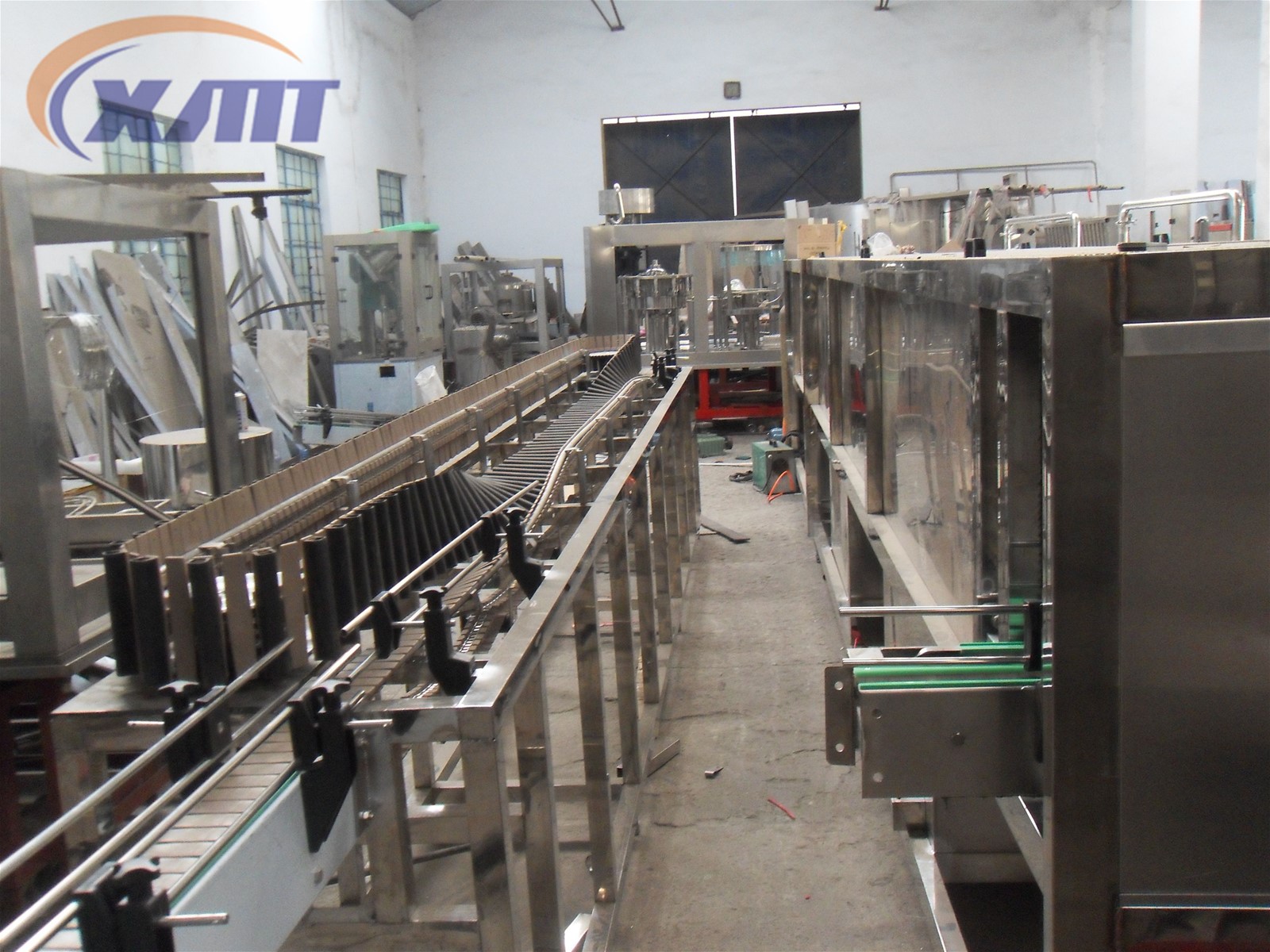

reverse bottle sterilizer - Description
The reverse bottle sterilizer is mainly used in sterilizing PET bottles mouth and inside surface of caps in which haven't been disinfected by thermal tea or juice which having been filled in PET bottle.
The reverse bottle sterilizer mainly consise of chief conveyoring chain system, stand, bottle reversing chain system, bottle recersing guiding rod and bottle repositioning rod.
Use its inner thermal medium to disinfect bottle mouth and caps without any other heat source, so it can save energy. The machine is fully made of SUS 304, more convenient in operation.
reverse bottle sterilizer - Characteristics
# The tilting bottle sterilizer can be costomize basing on client's capacity;
# The whole material is stainless teel 304 (or customize material);
# Normally, it is applied in hot filling line including juice / tea / energy drink filling line;
# Promise 20 seconds sterilizing time;
# Easy operation and maintainence;
Reverse bottle sterilizer - Parameter
Model | Production capacity | Sterilizing time | Belt speed | Power |
DP-8 | 3000-8000BPH | 15-20S | 4-20m/min | 3.8kw |
DP-12 | 8000-15000BPH | 15-20S | 4-20m/min | 5.6kw |
