| Type: | Multi-Function Packaging Machine |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Model Number: | PL-6 |
| Brand Name: | XinMingTao |
| Place of Origin: | China (Mainland) |
| Power: | 1.5kw |
| Voltage: | 220v |
| Driven Type: | Electric |
| Automatic Grade: | Automatic |
| Packaging Material: | Glass,Metal,Plastic |
| Packaging Type: | Bottles,Cans |
| Application: | Beverage,Food,Medical |
| Condition: | New |
| cooling machine: | warming machine |
Quick Details
Specifications
spraying cooling machine system for bottles and cans
1.Summary
The bottle warmer/ cooler is applied to PET bottle tea or juice hot filling production line and PET bottle carbonated drink filling production line. For hot filling, It can put down the temperature of hot filling drink to 36-40. For low-temperature filling, it can get up the temperature of low-temperature filling carbonated drink to 36-40 to eliminating the condensed water on the external wall of PET bottles, to keeping bottles dry and clean. So convenient to following-up labeling and packing processes.
2.Structure feature:
a. The main is stainless steel frame-board structure
b. The tunnel spraying cleaning is continuous transmission
c. Main drive is frequency conversion and infinite speed, convey by plastic chain net or stainless steel chain net
d. Heat by coiled pipe hot vapor
e. Temperature control adopts PLC control film regulating valve
3.Main technical parameter:
|
1 |
Production Capacity(BPH) |
3000-5000 |
6000-9000 |
10000-15000 |
24000-36000 |
|
2 |
Heating temperature () |
37-45 |
37-45 |
37-45 |
37-45 |
|
3 |
Cooling time( min) |
12-15 |
12-15 |
12-15 |
12-15 |
|
4 |
Linear conveying speed (m/min) |
100-550 |
100-550 |
100-550 |
100-550 |
|
5 |
Width of mesh conveyor (mm) |
1.22 |
1.22 |
1.22 |
1.22 |
|
6 |
Vaport .Pressure (Mpa) |
<0.4 |
<0.4 |
<0.4 |
<0.4 |
|
7 |
Vapor consumption(kg/h) |
80 |
120 |
240 |
280 |
|
8 |
Water circulation volum(m3/h) |
6 |
9 |
15 |
28 |
|
9 |
Installed power( kw) |
6 |
7.55 |
8.6 |
18 |
|
10 |
Dimension (LxWXHmm) |
620×1500×1700 |
1580×1500×1700 |
15800X1800×1700 |
22000×800×1700 |
|
11 |
Weight ( KG) |
2500 |
3200 |
4300 |
5600 |
4. Photos:
the external photo of hot sale spraying cooling machine system for bottles and cans

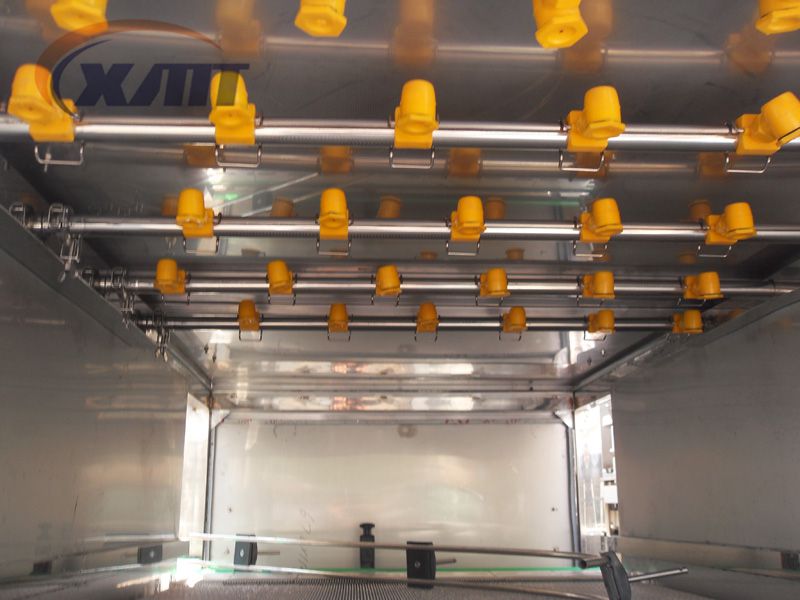

the inner part of hot sale spraying cooling machine system for bottles and cans
---After Sales Service
1. Find our products through ecvv.com
2. One year warranty for the whole system
3. Free equipment installation and debugging
4. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
5. Every 3 years, we can help to overhaul the machine free (Labor)
6. We can provide internship service and help you train the operator and mechanic
7. Free production technology and process configuration
8. We can help you to design the production line, workshop and provide turn-key project
