| Brand Name: | GLSUN |
|---|---|
| Wavelength: | 850~1300 |
| Data Rate: | switching time less than 8ms |
| warranty: | 1 year |
| Connector: | fc/pc, fc/apc |

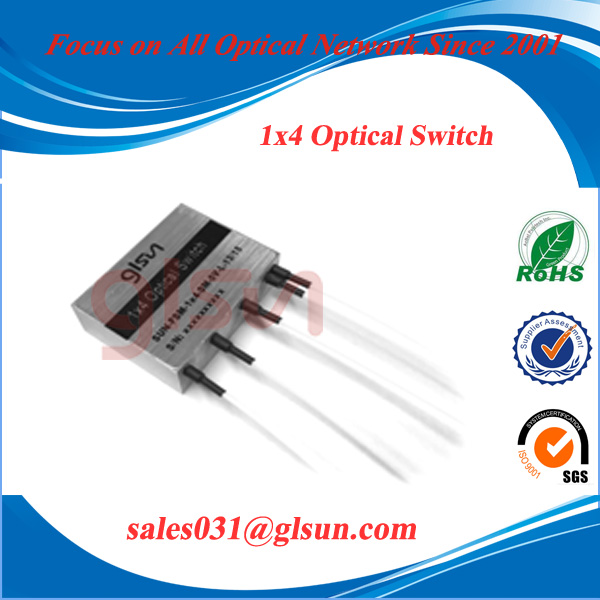

| Model Number: | SUN-FSW-1x4 |
| Place of Origin: | China (Mainland) |
| Wavelength Range: | 850+/-40 / 1300+/-40; 1260 ~ 1650 |
| Test Wavelength: | 850 / 1300; 1310 / 1550 |
| Insertion Loss 1, 2: | less than 1.0 dB |
| Return Loss 1, 2: | MM more than 30; SM more than 50 |
| Crosstalk 1: | more than 55 |
| PDL: | SM less than 0.1 dB |
| WDL: | less than 0.25 |
| Repeatability: | less than +/-0.02 |
| Operating Voltage: | 3.0V or 5.0V |
| Voltage Pluse Width(Latching): | more than 20 ms |
Quick Details
Specifications
Features Applications
Low Insertion Loss R&D in Laboratory
Wide Wavelength Range System Monitoring
Low Crosstalk OADM
High Stability, High Reliability MAN (Metropolitan Area Network)
Epoxy-free on Optical Path Network Security and Monitoring
Latching and Non-latching
Specifications
Parameters |
Unit |
SUN-FSW-14 | |
Wavelength Range |
nm |
85040 / 130040 |
1260 ~ 1650 |
Test Wavelength |
nm |
850 / 1300 |
1310 / 1550 |
Insertion Loss 1, 2 |
dB |
1.0 | |
Return Loss 1, 2 |
dB |
MM 30 SM 50 | |
Crosstalk 1 |
dB |
55 | |
PDL |
dB |
SM 0.1 | |
WDL |
dB |
0.25 | |
Repeatability |
dB |
0.02 | |
Operating Voltage |
V |
3.0 or 5.0 | |
Voltage Pluse Width(Latching) |
ms |
20 | |
Durability |
Cycles |
10 Million | |
Switching Time |
ms |
8 | |
Optical Power |
mW |
500 | |
Operating Temperature |
|
0 ~ +70 | |
Storage Temperature |
|
-40 ~ +85 | |
Relative Humidity |
% |
5 ~ 95 | |
Dimension |
mm |
(L)33.5(W)25.5(H)9.5 0.2 | |
Note: 1 Within operating temperature and SOP. 2 Excluding connectors. | |||
Pin Configurations
Latching
Optical Route |
Relay |
Electric Drive |
Status Sensor | ||||||
Pin 1 |
Pin 5 |
Pin 6 |
Pin 10 |
Pin 2-3 |
Pin 3-4 |
Pin 7-8 |
Pin 8-9 | ||
Com Port 1 |
1 |
+ V |
GND |
- |
- |
Open |
Close |
Close |
Open |
2,3 |
NA |
NA |
NA |
NA |
|
|
|
| |
Com Port 2 |
1 |
- |
- |
GND |
+ V |
Close |
Open |
Open |
Close |
2 |
+ V |
GND |
- |
- |
Open |
Close |
Close |
Open | |
3 |
NA |
NA |
NA |
NA |
|
|
|
| |
Com Port 3 |
1,2 |
- |
- |
GND |
+ V |
Close |
Open |
Open |
Close |
3 |
+ V |
GND |
- |
- |
Open |
Close |
Close |
Open | |
Com Port 4 |
1,2,3 |
- |
- |
GND |
+ V |
Close |
Open |
Open |
Close |
Non-latching
Optical Route |
Relay |
Electric Drive |
Status Sensor | ||||||
Pin 1 |
Pin 5 |
Pin 6 |
Pin 10 |
Pin 2-3 |
Pin 3-4 |
Pin 7-8 |
Pin 8-9 | ||
Com Port 1 |
1 |
+ V |
- |
- |
GND |
Open |
Close |
Close |
Open |
2,3 |
NA |
NA |
NA |
NA |
|
|
|
| |
Com Port 2 |
1 |
No Power |
Close |
Open |
Open |
Close | |||
2 |
+ V |
- |
- |
GND |
Open |
Close |
Close |
Open | |
3 |
NA |
NA |
NA |
NA |
|
|
|
| |
Com Port 3 |
1,2 |
No Power |
Close |
Open |
Open |
Close | |||
3 |
+ V |
- |
- |
GND |
Open |
Close |
Close |
Open | |
Com Port 4 |
1,2,3 |
No Power |
Close |
Open |
Open |
Close | |||
Electrical Specifications
Specifications |
Voltage |
Current |
Resistance |
5V latching |
4.5~5.5 V |
36~44 mA |
125 |
5V non-latching |
4.5~5.5 V |
26~32 mA |
175 |
3V latching |
2.7~3.3 V |
54~66 mA |
50 |
3V non-latching |
2.7~3.3 V |
39~47 mA |
70 |
Ordering Information: SUN-FSW-A-B-C-D-E-F-G-H
A |
B |
C |
D |
E |
F |
G |
H |
Optical Switch Type |
Fiber Type |
Operating Voltage |
Switch Type |
Test Wavelength |
Tube Type |
Fiber Length (Include connector) |
Connector |
14
|
SM: SM, 9/125 M5: MM, 50/125 M6: MM, 62.5/125 X: Others |
3: 3V 5: 5V
|
L: Latching N: Non-latching |
850: 850nm 1310: 1310nm 1550: 1550nm 1310/1550: 1310/1550nm X: Others |
25: 250um 90: 900um X: Others |
05: 0.5m5cm 10: 1.0m5cm 15: 1.5m5cm X: Others |
OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC LP: LC/PC LA: LC/APC X: Others |
