Warranty: | 5Years |
---|---|
Model Number: | B05 |
Brand Name: | Doocar/OEM |
Place of Origin: | China (Mainland) |
Worktable Width: | 2100MM |
Worktable Length: | 5200MM |
Max. Tension (N): | 70Mpa |
Max. Lifting Capacity: | 3500KG |
Max. Hydraulic Pressure: | 100KN |
Bench Height: | 500MM |
Weight: | 1950KG |
Quick Details
Specifications

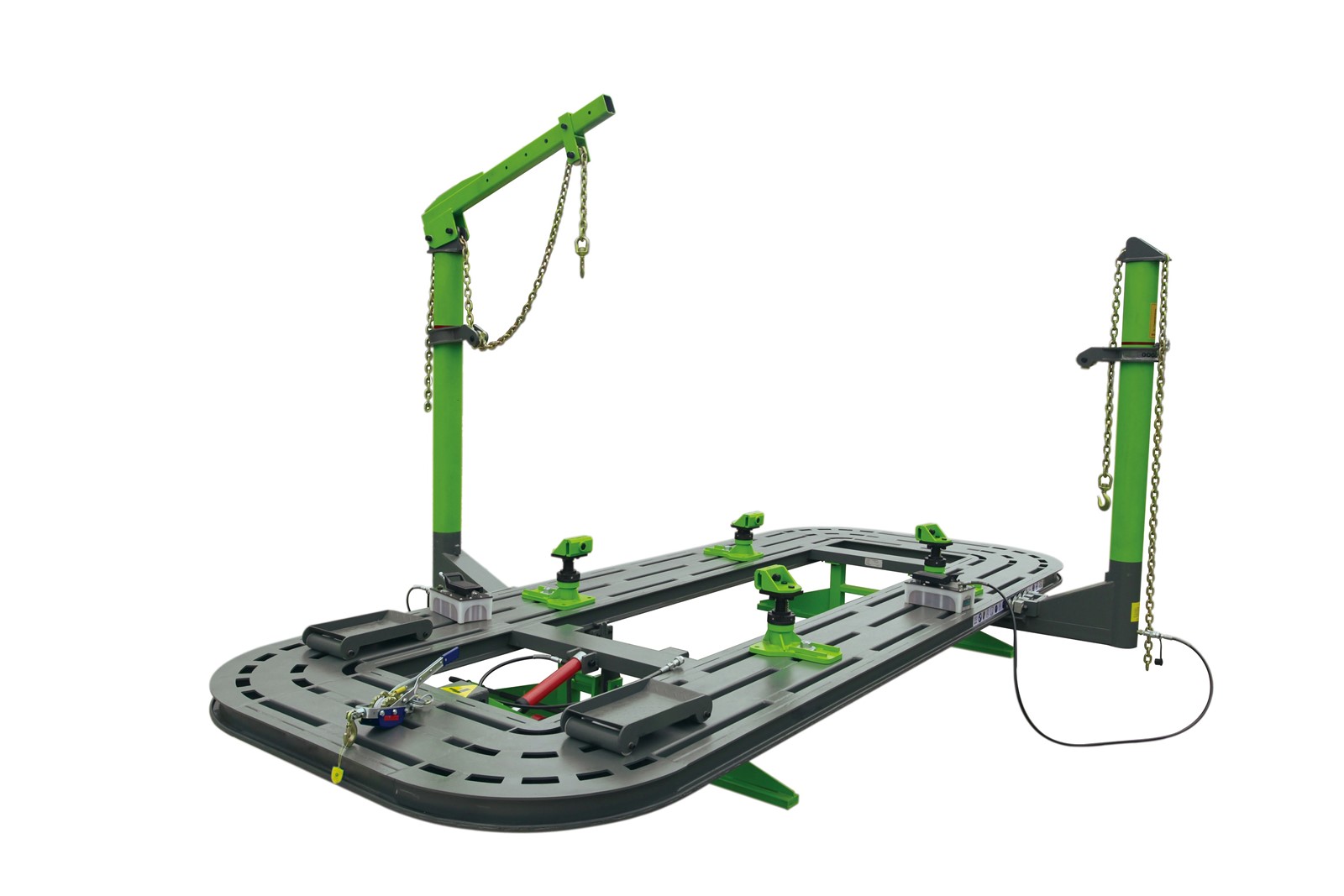

this equipment is aiming at Practicability, safety and accuracy. the adaptation of modular design concept as well as professional division of labor, with our great passion and exquisite workmanship, creates Doocar's distinguished quality and technology.
1.the platform is made from rectangular pipe by welding. High density manganese steel makes it durable.
2.Double posts, 160mm of diameter, 2000mm of height can meet the pulling repair of a variety of high-tensile auto bodies.
3.358mm of pulling stroke greatly improves the working efficiency.
4.Main clamps with measuring system can help us to locate car precisely.
5.Rich high-tensile pulling clamps and accessories can meet the pulling repair of autos in different shapes.
6.Double hydraulic systems guarantee strong power and durability.
7.High-precision measuring system can provide accurate and convenient operation.
8.Universal data of all kinds of vehicles can meet all the repairing needs.
Specifications
Table Length---------------------------5200mm
Table Width-----------------------------2100mm
Table Height----------------------------500mm
Diameter of the Post -----------------160mm
Hydraulic Pressure -------------------70MPa
Post Max. Tension --------------------10T
Post Working Rang--------------------360°
Height of the Post----------------------2000mm
Pulling Stroke---------------------------358mm
Pneumatic Pressure --------------0.5-0.8MPa
Max Load--------------------------------3500kg
Total Weight ----------------------------2200kg
Configuration
Platform-------------------------------------------------------------1 set
Main Clamps------------------------------------------------------4 sets
Post ----------------------------------------------------------------2 sets
Upper Puller-------------------------------------------------------1 set
Pneumatic Pump-------------------------------------------------2 sets
10t High-pressure cylinder-------------------------------------3 sets
Ramps -------------------------------------------------------------1 set
Moving Trolley ---------------------------------------------------2 sets
Handy Winch-----------------------------------------------------1 set
Wheel Bracket---------------------------------------------------1 set
High-strength Pulling tools---------------------------------16 pieces
High-precision Measuring system-------------------------1 set
Tools Board------------------------------------------------------1 set
Tools Bag---------------------------------------------------------1 set
