1.Each product is tested before ex-factory
1) SGS test report (extension test,bending test and material test of steel plate,tube and welding rod)

2. Technical Parameters

Model		Unit	LSS 0.5-0.8-Y.Q	LSS 0.8-0.8-Y.Q	LSS 1-1.0-Y.Q	LSS 1.5-1.0-Y.Q	LSS 2-1.0-Y.Q
Rated steam capacity		Kg/h	500	800	1000	1500	2000
Rated working pressure		MPa	0.8	0.8	1.0	1.0	1.0
Saturated steam temp.		oC	175	175	184	184	184
Light Diesel	Fuel Consumption	Kg/h	34	54.5	68	102	136
Natural Gas		Nm3/h	37	59.2	74	112	148
LPG		Nm3/h	13	21	26	39	52
Water inlet dia.		DN	25	25	25	32	32
Steam outlet dia.		DN	40	40	50	50	65
Blow-down valve dia.		DN	40	40	50	50	50
Safety valve dia.		DN	40	40	40	40	2×40
Overall dimension		mm	1240×2930	1480×3030	1660×3110	1660×3320	1760×3750
Net weight		Kg	2000	3080	4120	4500	5250

3. After-sale Service of Product
1. Guarantee period is one year , since the date of purchasing.
2. 24- hour technical supports.
3. Design product according to the customers requirement.
4. We provide available price.

4. Good Material

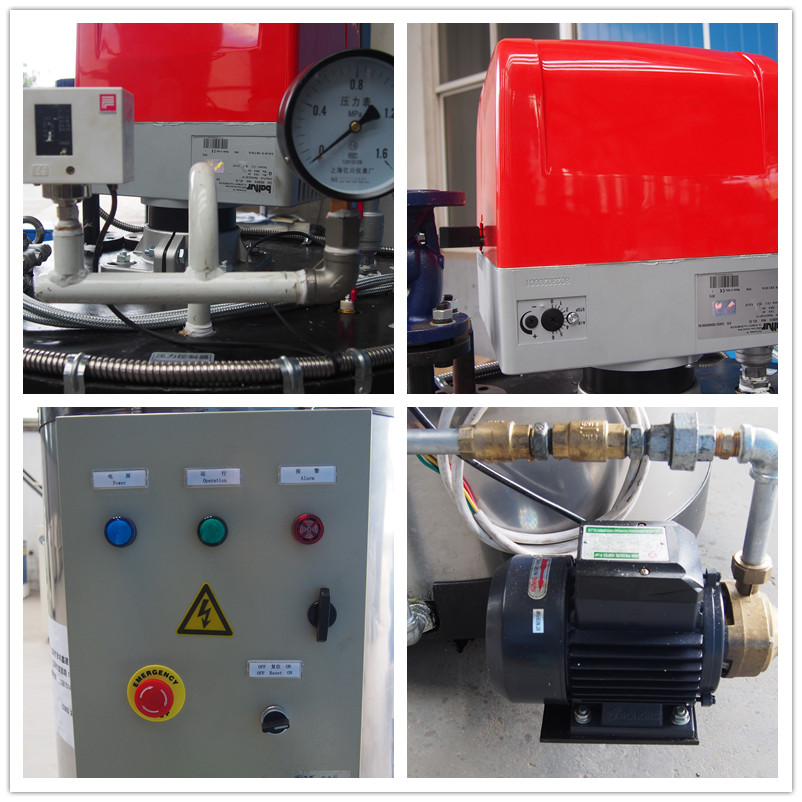

1. The burner: Italy imports
2. The design of control box is convenient for repair.
3. Cladding materials are stainless steel.
4. The electric parts and water pump are CE verified and different brands available.
5. PLC control touch screen type electric control box ensures automatic water feeding, low water protection and alarm, extremely low water emergency stop, pressure protection, safety valve pressure relief, etc.

5. Contact us
We are a professional electric boiler manufacturer and exporter.
We're very sincerely looking for long-term win-win business here.
