| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 12 months |
| Certification: | CE, SGS, ISO9001, ISO14002, SONCAP |
| Dimension(L*W*H): | 2920*2570*2950mm |
| Power: | 33.7KW |
| Voltage: | 380V |
| Model Number: | QT8-15 |
| Brand Name: | HONCHA |
| Place of Origin: | China (Mainland) |
| Capacity: | 8640pcs per shift |
| Automatic: | Yes |
| Method: | Motor-Driven |
| Processing: | Brick Production Line |
| Brick Raw Material: | Concrete |
| Type: | Hollow Block Making Machine |
| Condition: | New |
| Gross Weight: | 9.6T |
| Vibration: | 60-90KN |
Quick Details
Specifications

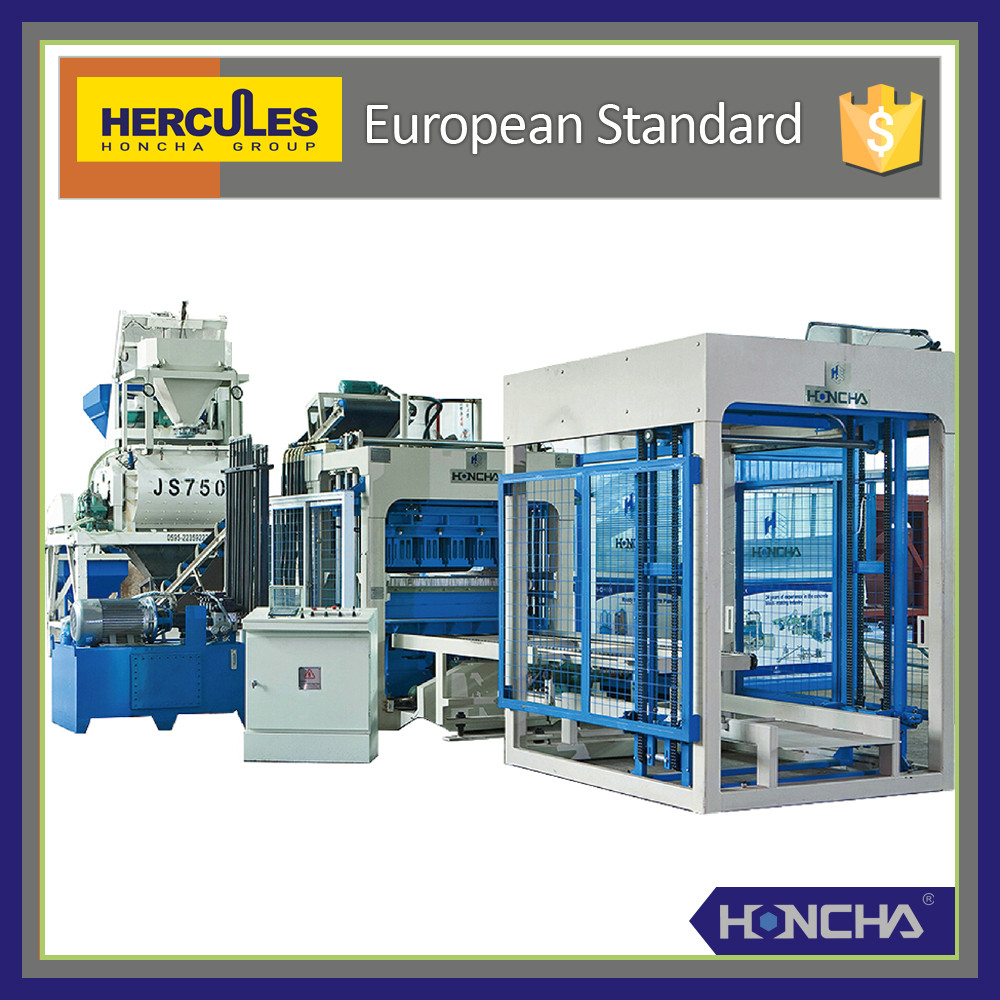

Product: Concrete Block Machine, Block Making Machine, Cement Block Machine
Features:
Robust, compact and trouble free
Highly cost-effective
Can be equipped with a face mix device for pavers with colored layer.
Product Feature
Product Specification/Models
Specifications:
-Pallet size: 850 x680 x 25 mm (bamboo/PVC pallet)
-Effective area: 800 x 600 mm
-Block height: 40 - 200 mm
-Machine weight: Approx. 6,800 kg
Production Capacities:
8" Block (390 x 190 x 190 mm):
A) Per Mould: 6
B) Per Hour: 1080 pcs
6" Block (390 x 150 x 190 mm):
A) Per Mould: 8
B) Per Hour: 1440pcs
4" Block (390 x 100 x 190 mm):
A) Per Mould: 10
B) Per Hour: 1800pcs
Brick (240 x 53 x 115 mm):
A) Per Mould: 15
B) Per Hour:2700 pcs
UNI Paver (225 x 112.5 x 60 mm):
A) Per Mould: 15
B) Per Hour: 2700 pcs without face mix
Specifications:
-Pallet size: 850 x680 x 25 mm (bamboo/PVC pallet)
-Effective area: 800 x 600 mm
-Block height: 40 - 200 mm
-Machine weight: Approx. 6,800 kg
Production Capacities:
8" Block (390 x 190 x 190 mm):
A) Per Mould: 6
B) Per Hour: 1080 pcs
6" Block (390 x 150 x 190 mm):
A) Per Mould: 8
B) Per Hour: 1440pcs
4" Block (390 x 100 x 190 mm):
A) Per Mould: 10
B) Per Hour: 1800pcs
Brick (240 x 53 x 115 mm):
A) Per Mould: 15
B) Per Hour:2700 pcs
UNI Paver (225 x 112.5 x 60 mm):
A) Per Mould: 15
B) Per Hour: 2700 pcs without face mix
Why HONCHA full-auto block machine is your first choice?
1. over 300 workers, 100,000m2 factory area, Export Revenue in 2015:16,000,000 US dollars
1. Trusted and Experienced since 1985 as the block machine industry expert.
2. Exported to over 120 overseas countries and regions, well-recognized brand in China and overseas.
3. Owning the largest fully-automatic block machine production manufacturing base in China.
4. Experienced in catering for different needs of customers, Individual Project Proposal for different levels of customers.
5.Good Serive Package, Free Machine Training at headquarters, Scheduled Plant Visit.
