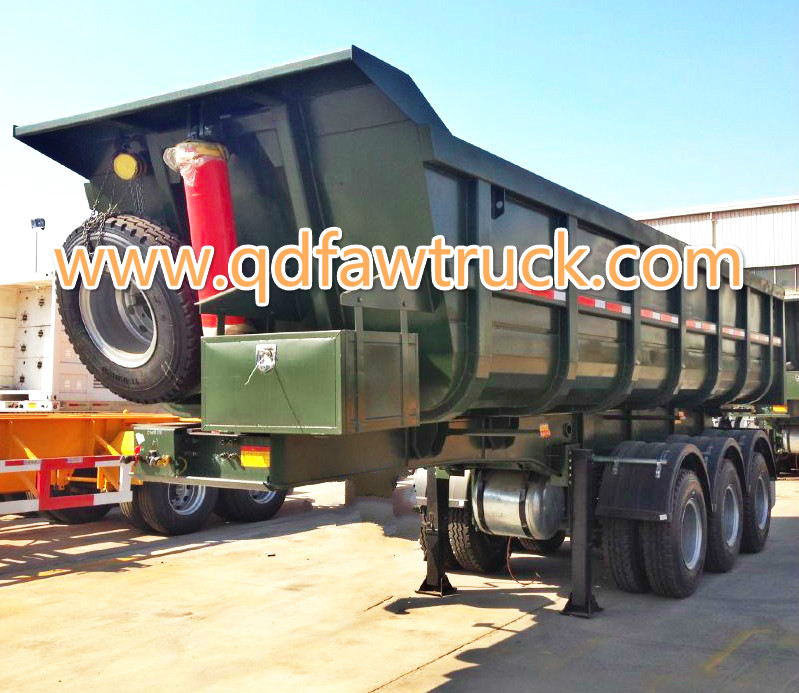

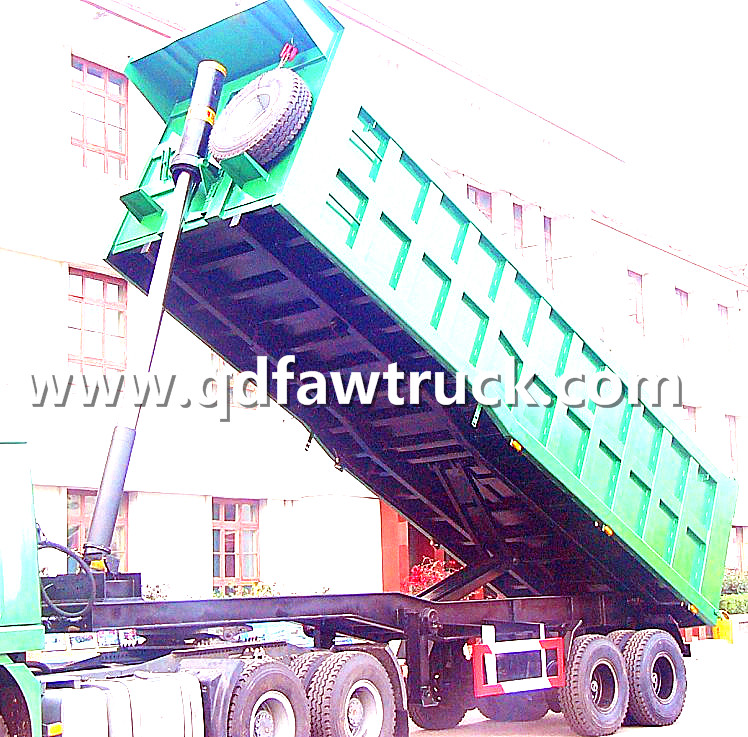

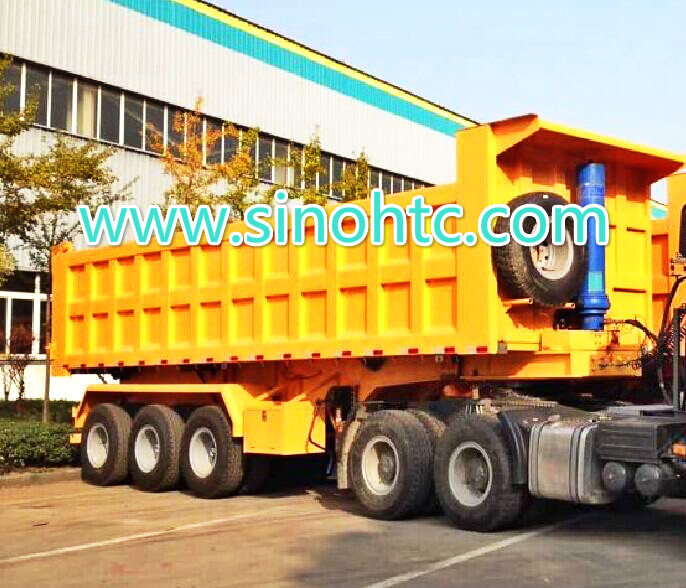

3 axle dumping trailer/ Tipping trailer/ Trucks and Trailers / Self Dump Trailer
3 axle Trucks and Trailers / Self Dump Trailer

3 axle Self Dump Trailer, Dump Semi Trailer, Dump Semi-Trailer, Dumper Semi Trailer
Dump tipping semi trailer, 2-3 axles, is specially designed for heavy good transportation, like stone and mining materials. It is strong enough to carry up 60T in long distance delivery, rough road situation.

1. Tare Weight: 8500-115000 Kg
2. Dimension (Lx W x H): 10.5x2.5x2.8m
3. Capacity: 18, 24, 32, 45 CBM
4. Payload: 40-70T
5. Side WWall: 6mm strengthened wall
6. Front Wall: 8mm strenthened

7. Floor: 8mm strenthened
8. Hydraulic: HYVA hydraulic cylinder
9. Chassis: Heavy Duty I Beam Chassis
10. Axle: BPW, FUWA, SAF-Optional
11. Suspension: Mechanical, Air Bags-Optional
12. King Pin: 2", 3.5"
13. Tire: 11R22.5, 12R22.5. 315/80R22/5
14. Braking System: WABCO Relay Valve
15. Accessories: One standard tool box.

Q: What's the brand of your truck?

A: Our brand is FAW, First Automobile Works is the biggest truck manufacture in China, our products cover all series such as tractor truck, tipper truck, cargo truck, and other special trucks.



Q: How can we trust your company?

A: We are the official authority company by FAW Qingdao Automobile Company. And we are registered in the Commercial Department of China,  with the whole qualification for exporting, you would feel relax and safe to do business with us.



Q: Can u provide the ISO9001 certificate or some others related?

A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.



Q: How about warranty item?

A: We could support u original spare parts. And also email or telephone assist in the following days. If necessary, for large quantity ordered, our engineer could go for technical assist.

Kerb Weight	11500 Kg
Dimension (Lx W x H)	10.5x2.5x1.6m
Capacity	44.2 CBM
Payload	50-60T
Side Wall	6mm strengthened wall
Front Wall	8mm strenthened
Floor	8mm strenthened
Hydraulic	HYVA hydraulic cylinder
Chassis	Heavy Duty I Beam Chassis
Axle	BPW, FUWA, SAF-Optional
Suspension	Mechanical, Air Bags-Optional
King Pin	3.5"
Tire	12R20.
Braking System	WABCO Relay Valve
Accessories	One standard tool box
