| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 Year |
| Weight: | 2500kg |
| Dimension(L*W*H): | 2200*1600*1500mm |
| Power(W): | 11kw |
| Voltage: | 380V |
| Model Number: | Z28-185 |
| Brand Name: | Penghao |
| Place of Origin: | China (Mainland) |
| Production Capacity: | 10-25 (pcs/min) |
| Application: | rebar threading |
| Condition: | New |
| Product name: | thread rolling machine |
| Workpiece diameter: | 6-65mm |
| Rolling power: | 11kw |
| Pitch: | 2-8mm |
| Weight: | 2500kg |
Quick Details
Specifications

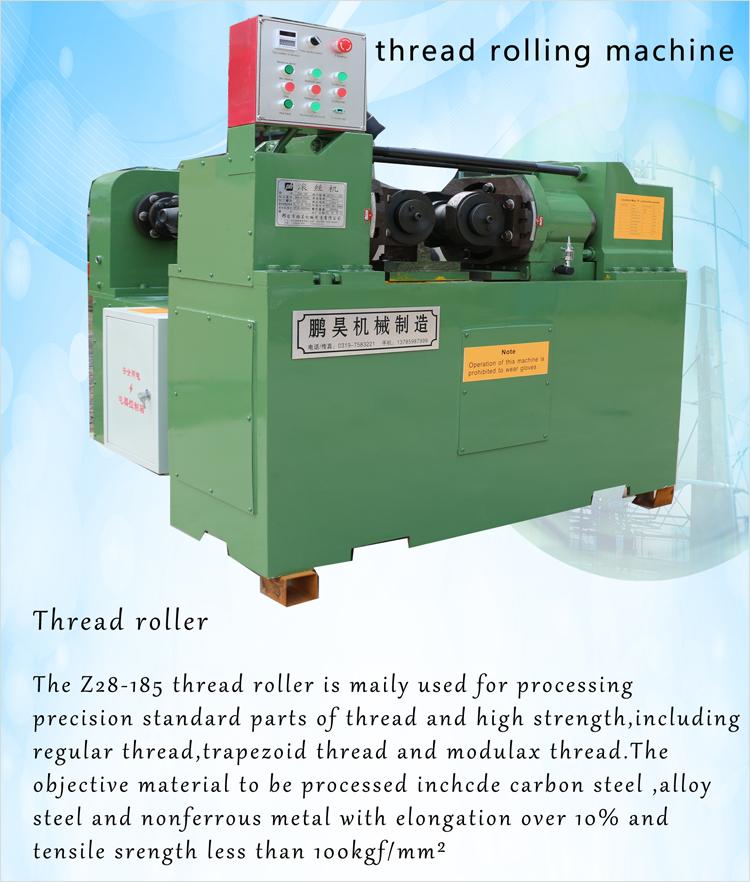

Thread rolling machine
Z28-185 thread rolling machine is maily used for processing precision standard parts of thread and high strength,including regular thread,trapezoid thread and modulax thread.The objective material to be processed inchcde carbon steel ,alloy steel and nonferrous metal with elongation over 10% and tensile srength less than 100kgf/mm2
Z28-185 thread rolling machine is maily used for processing precision standard parts of thread and high strength,including regular thread,trapezoid thread and modulax thread.The objective material to be processed inchcde carbon steel ,alloy steel and nonferrous metal with elongation over 10% and tensile srength less than 100kgf/mm2
| Specification of Z28-185 thread rolling machine | |||
| Pressure of roller max | 200KN | Dip Angle of Min Shaft | ±15° |
| Working Dia | 6-65mm | Rolling power | 11kw |
| Thread Distance max | 2-8mm | Hydraulic Power | 2.2kw |
| Roller Dia max | 210mm | Cooling Power | 0.12kw |
| BD of Roller | 75mm | Weight | 2500kg |
| Roller Width max | 150mm | Packing Size | 2200*1600*1500mm |
| Center Distance of Main Shaft | 160-280mm |
|
|
