| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 2 years |
| Certification: | CE,CCC,ISO |
| Weight: | 400KG |
| Dimension(L*W*H): | 800*1000*700mm( W*H*D) |
| Power(W): | 12KW |
| Voltage: | 380V |
| Model Number: | TG-TC1 |
| Brand Name: | TARGET |
| Place of Origin: | China (Mainland) |
| Coating: | Powder Coating |
| Substrate: | Steel |
| Type: | Powder Coating Booth |
| Condition: | New |
Quick Details
Specifications

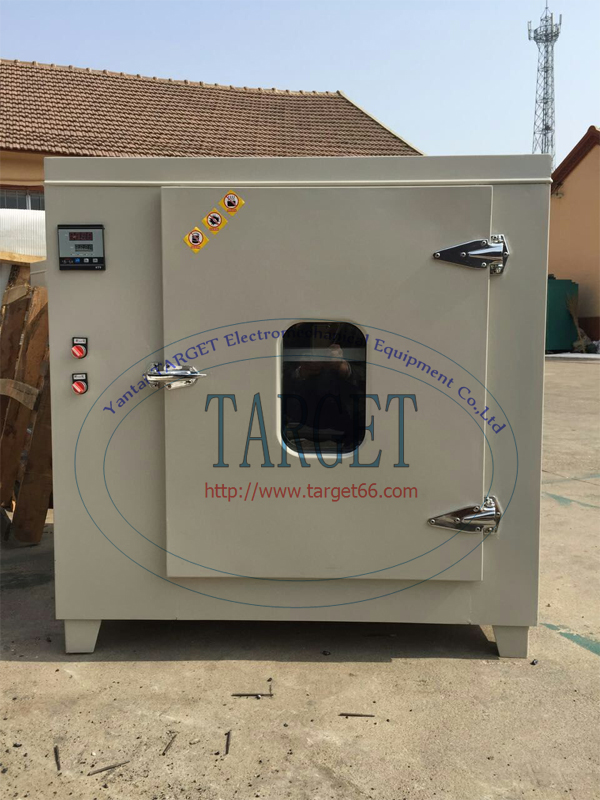

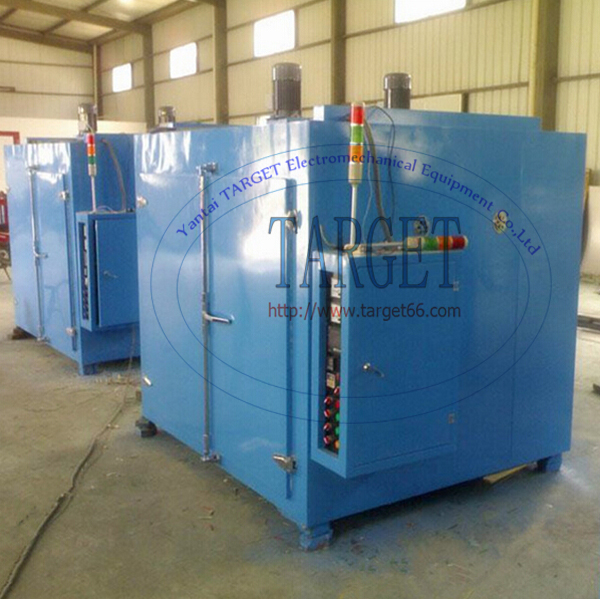

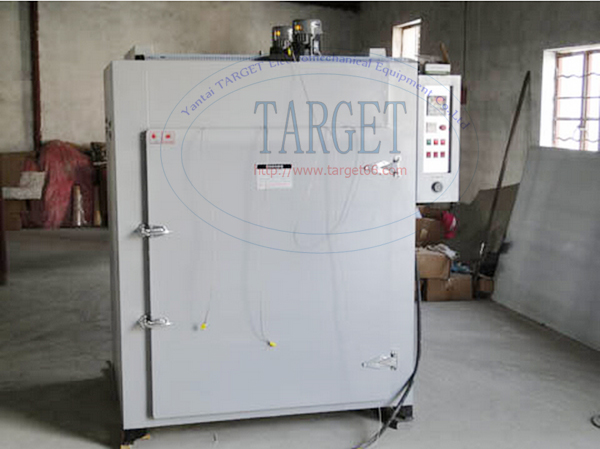

Double door /Single door electronic oven/high temperature drying chamber/ Curing oven
Electric high temperature ovenis easy to use and gather functional and practical equipment. They are
suitablein laboratories as in pharmaceutical, cosmetic, plastic, electronic, chemical or food industries and etc.
Customize different curing oven size accorditing to customers' product and requirement.
Features:
1. Heating: PID+S. S.R
2. Temperature controller: PID microcomputer control
3. Inner wall : SUS#304 stainless steel
4. Recirculation: Air mandatory recycling levels
5. New High Temperature long axis motors
Specifications:
|
Inside chamber size |
|
|
Panel |
Outer wall : A3 galvanized steel, Electrostatic spraying Inner wall : SUS#304 stainless steel The middle with 150mm thickness rock wool board insulation layer |
|
Heating system |
Stainless steel electric heating pipe . 6 units*2kw , Max. 300 ℃, Heating time : 20-40 min (200-300℃) Voltage : 380v , 50HZ |
|
Tempe. Control accuracy |
±1°C |
|
Temp. -range |
Rm. Temp~300℃ |
|
Temp. Uniformity |
±3°C |
|
Heating control system |
PID+S. S.R. |
|
The thermostat |
PID microcomputer control, automatic constant temperature, temperature quickly compensation function |
|
Circulation system |
1 set , 60 W high-temperature fan |
|
Control system |
Temperature alarm; The sensor system, Stop button; Process setting system: temperature stop automatically . |
|
Accessories |
Complete seal device, door , lock . etc. |
|
Total Power |
12 Kw |
