| Material: | Steel |
|---|---|
| Type: | Flexible |
| Brand Name: | driflex |
| IP rating: | 68 |
| working temperature: | 150 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Model:VJ-S or SS
Description:
Features:

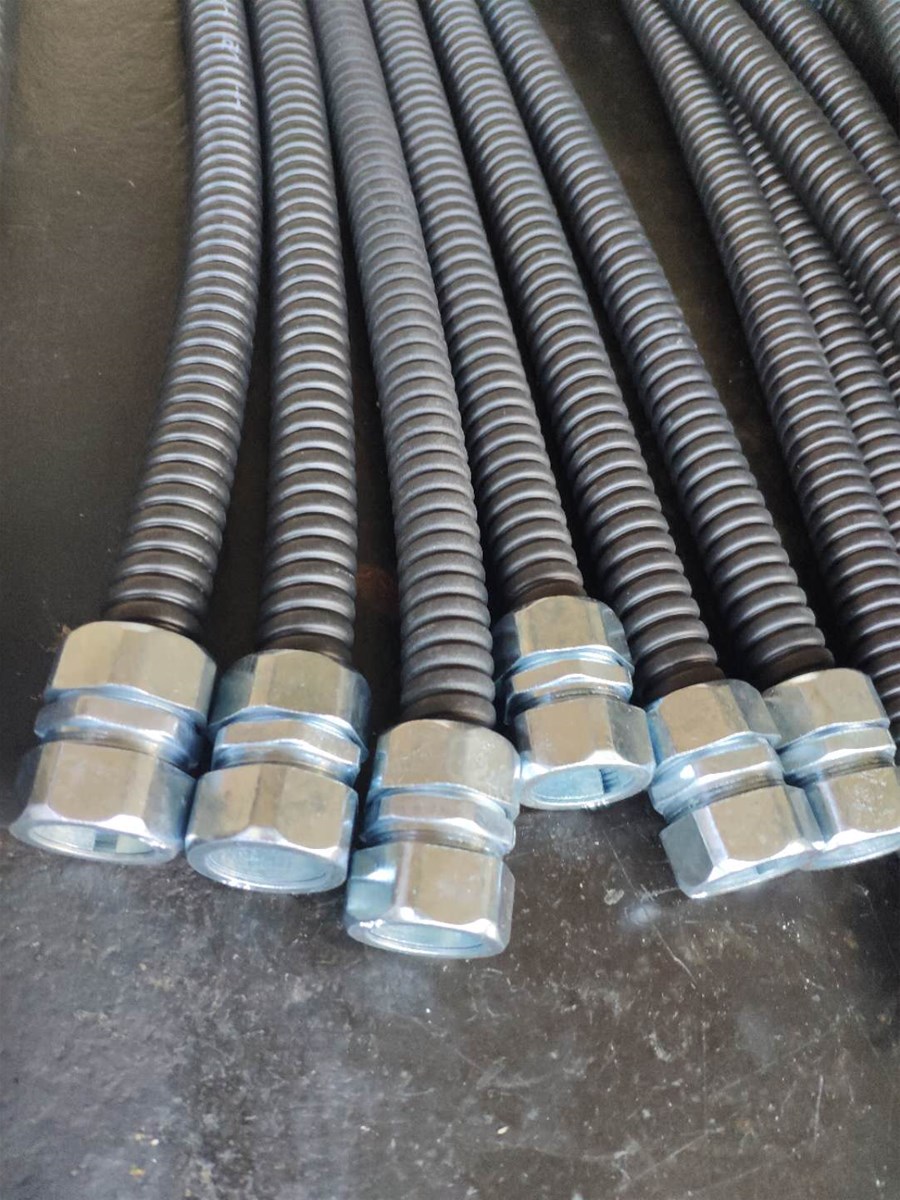

- Galvanized steel(S) or stainless steel(SS), square-locked core
- PVC vacuum jacketed
- Light weight
- Water resistance
- Excellent flexibility
- Temperature range from -20oC to +105oC
- PVC colour black (standard), grey or orange (made to order)
- Nickel plated brass fittings
- Galvanized malleable iron fittings
- Stainless steel fittings
Applications:
- General indutrial and commerical electrical wiring protection
- Machining centres and robotics
- Any narrow space in static applications
Specifications:
| Part No | Nominal Size ISO (mm) |
Nominal Size US (inches) |
I.D. (mm) | O.D. (mm) | Min. Bend Radius (mm) |
Length (M/coil) |
|---|---|---|---|---|---|---|
| LFH-10 | 16 | 3/8" | 12.3 - 12.6 | 16.5 - 16.8 | 60 | 50 |
| LFH-11 | 20 | 1/2" | 15.7 - 16.0 | 20.5 - 20.8 | 85 | 50 |
| LFH-12 | 25 | 3/4" | 19.7 - 20.0 | 25.3 - 25.6 | 100 | 50 |
| LFH-13 | 32 | 1" | 25.3 - 25.8 | 30.7 - 31.2 | 120 | 50 |
| LFH-14 | 40 | 1-1/4" | 32.3 - 32.8 | 38.5- 39.0 | 150 | 25 |
| LFH-15 | 50 | 1-1/2" | 38.30 - 38.8 | 45.7 - 46.2 | 180 | 25 |
| LFH-16 | 63 | 2" | 50.0 - 50.5 | 58.8 - 59.3 | 220 | 20 |
| LFH-17 | 75 | 2-1/2" | 62.5 - 63.2 | 73.5 - 74.0 | 310 | 10 |
| LFH-18 | 90 | 3" | 73.0 - 73.7 | 84.5 - 85.2 | 350 | 10 |
| LFH-19 | 100 | 4" | 97.50 - 98.5 | 109.5 - 110.5 | 410 | 5 |
