Material: | Steel |
---|---|
Type: | Flexible |
Brand Name: | driflex |
IP rating: | 68 |
working temperature: | 150 |
Place of Origin: | China (Mainland) |
Quick Details
Specifications
Model:FM-12S
Description:
Features:

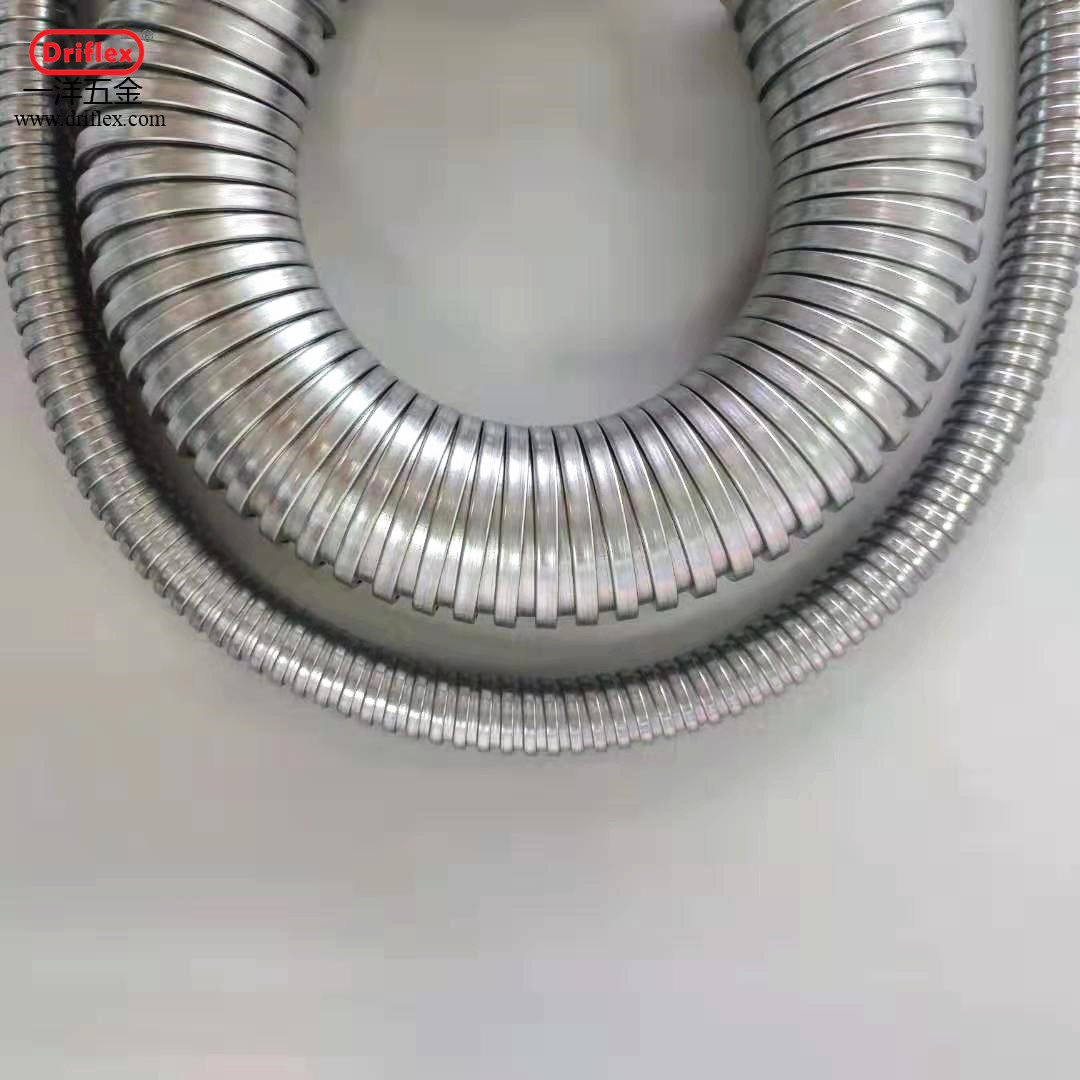

- Galvanized steel, square-locked, zinc colour, self colour
- Meets National Electrical Code 350 and conform to UL requirement.
- IP rating IP50
- Excellent flexibility
- Good mechanical strength
- Inherently low fire hazard
- Good Absorption of motion and vibration
- EMI screen
- Temperature range from -50oC to +300oC
- Nickel plated brass fittings
- Galvanized malleable iron fittings
- Stainless steel fittings
Applications:
- General wiring for OEM applications
- Low fire hazard applications
- Underfloor wiring of office buildings
Description:
Part No. |
Normial Size |
Inner Diameter |
Outside Diameter |
O.D after PVC Coated |
Length of Each Roll | |||
mm |
mm |
Interlocked |
Squarelocked |
M | ||||
SS-10 |
3/8" |
12.5 |
15.7 |
18.0 |
16.6 |
50 | ||
SS-11 |
1/2" |
15.7 |
19.1 |
21.3 |
20.0 |
50 | ||
SS-12 |
3/4" |
20.8 |
24.3 |
26.7 |
25.5 |
50 | ||
SS-13 |
1" |
26.0 |
30.0 |
33.2 |
31.6 |
30 | ||
SS-14 |
1-1/4" |
35.0 |
40.0 |
42.2 |
42.0 |
30 | ||
SS-15 |
1-1/2" |
40.0 |
45.0 |
48.0 |
47.0 |
20 | ||
SS-16 |
2" |
51.0 |
56.0 |
59.6 |
59.0 |
10 |
