| Material: | zinc die casting |
|---|---|
| Type: | Flexible |
| Brand Name: | driflex |
| IP rating: | 68 |
| working temperature: | 0 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Model:LTCD
Description:
Structure:

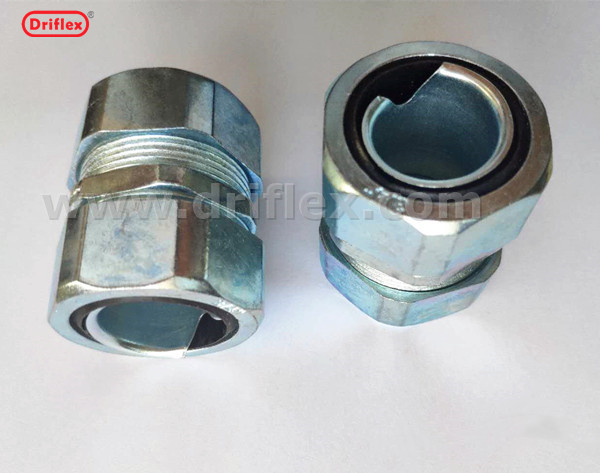

Connector body with hexagonal wrench surface, thread ISO metric in accordance with EN60423 or thread NPT in accordance with ANS/ASME B1.20.1-1983, Comply with stands AS/NZS 2053. 8, hexagonal pressure nut, sealing ring and ferrule
Material:
- Connector body - Galvanized die casting
- Hexagon pressure nut - Galvanized die casting
- Sealing ring - Rubber
- Ferrule - Galvanized steel
Features:
- Simple, one piece installation provides a quick and reliable liquid-tight seal
- IP rating from IP40 to IP66/67/68 in combination with the corresponding flexible conduits
- High mechanical strength
- Highly liquid-tight and dustproof
- Vibration and tensionproof
- Inherently low fire hazard
- Covering of the conduit ends
- Available in straight, 45oand 90oBodies
- Available in ISO Metric and NPT etc. Threads
Applications:
- General indutrial and commerical electrical wiring protection
- Machining centres and robotics
- Any narrow space in static applications
- General wiring for OEM applications
- Low fire hazard applications
- Underflooring wiring in office buildings
- Machine tools
- Installations where liquid-tight is a requirement
- Outdoor installation
Special Applications:
According to customer's samples and specifications, we can manufacture special fittings for suit any type of flexible conduit applications.
Specifications:
| Part No. | Size |
|---|---|
| LTCD-06 | 3/16" |
| LTCD-07 | 1/4" |
| LTCD-08 | 5/16" |
| LTCD-09 | 3/8" |
| LTCD-10 | 3/8" |
| LTCD-11 | 1"/2 |
| LTCD-12 | 3/4" |
| LTCD-13 | 1" |
| LTCD-14 | 1-1/4" |
| LTCD-15 | 1-1/2" |
| LTCD-16 | 2" |
| LTCD-17 | 2-1/2" |
| LTCD-18 | 3" |
| LTCD-19 | 4" |
