Product Main

Quick Details

Brand Name: FORESIGHT
discharge current: 0-150A
current measurement resolution: 0.1A
discharge voltage range: 24V-250VDC
voltage measurement resolution: 0.01V
Model Number: FST-8500CT
Place of Origin: China (Mainland)
String voltage range: 1-300v
rated discharge voltahge: 24V-250V
Discharge current: 1-150A
Voltage measurement resolution: 0.01v
current measurement resolution: 0.1A
Communication mode: USB Port
Safety standard: EN610950
battery type: NICD and lead acid battery
Power Supply: 220VAC 15% 50Hz/60Hz

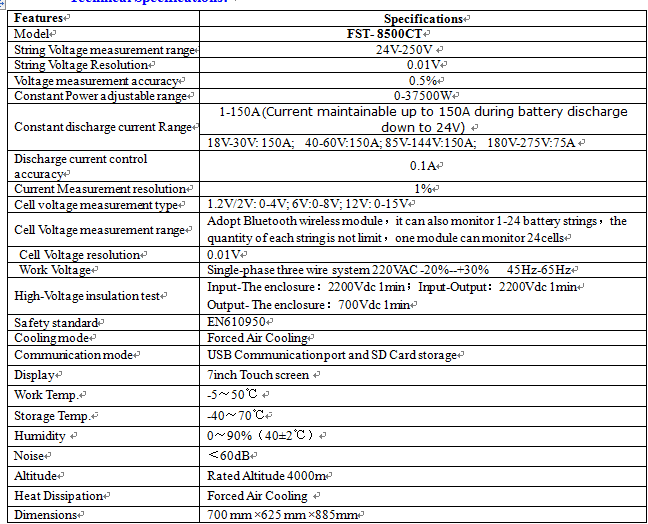

Specifications

Main Functions and Features

Used to discharge to battery String removed from the system

Discharge to Battery string voltage as 24V/48V/110V/240V,  Cell voltage as 1.2V/2V/4V/6V/8V/12V

4 adjustable stop points and multiple alarm Designs to control the discharge process intelligently

7inch LCD touch screen for easy operation and Showing various parameters real time

Support real time monitoring on the PC Connection to USB port orSD CardDownload data after discharge

PC software for capacity evaluation and Report generation

Optional wireless modules for 1.2V/2V/6V/12V Cells voltage real-time measuring
