Measurement Range: | 0.05-200m |
---|---|
Measurement Accuracy: | 1mm |
Size: | 65x38x133mm |
Brand Name: | FORESIGHT |
Gross Weight: | 285g |

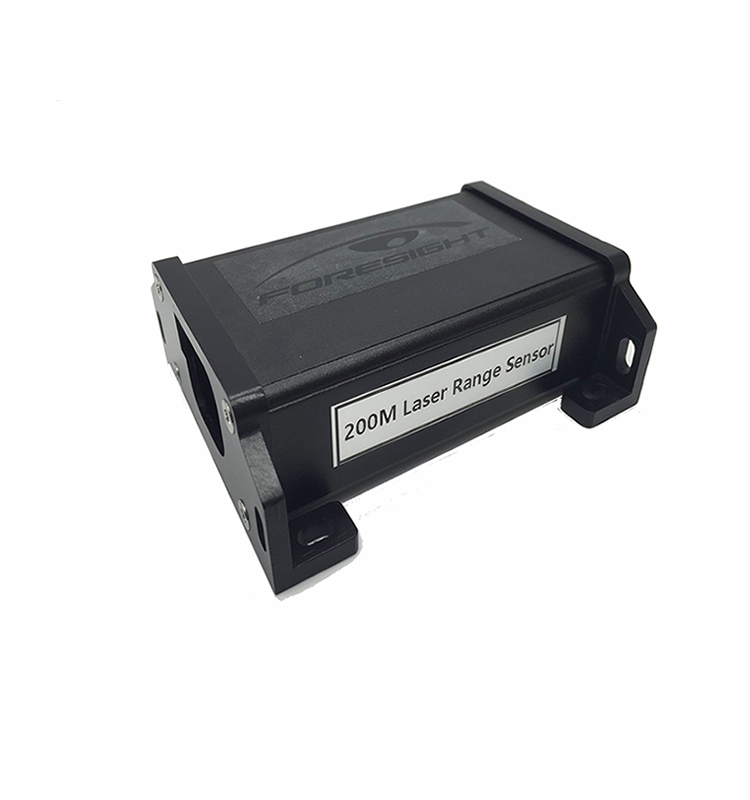

Model Number: | FST-200M |
Place of Origin: | China (Mainland) |
measurement range: | 0.05-200m |
Baud Rate: | 115200bps |
Laser Grade: | 2 |
Output Mode: | RS232 ,RS485 Communication port; |
Operation temperature: | -20 degree to 60 degree |
IP Grade: | IP65 |
Power supply: | 5V or 6-32VDC |
Quick Details
Specifications
Features
in outdoor sunlight, it can ensure to measure more than100m and
Measurement accuracy in 1-5mm, if to measure long distance in outdoor or less
Reflective object indoor and require more than 50meters including,suggest this
Type
Note: if you need RS485 Bus, which can connect 250nos of laser distance
Sensor at the same time
Red Line-VCC 5VDC or 9-24VDC
Black Liine-GND
White Line-RX,
Green Line-TX;
Yellow Line-SGND;
under the condition of bad measurement(for example if the ambient light Is too strong. the point measured diffuse reflection coefficient is too big or Too small, measurement accuracy has big error:1 Mm+40PPM)
Kindly Prompt: If need to DB9 Female head, so RX,TX and G Will be corresponding to connection to Second, Third and Fifth base pin of DB9 Head separately.
