| Measurement Range: | 1-1000m |
|---|---|
| Measurement Accuracy: | 1m |
| Size: | 73X47X105mm |
| Brand Name: | FORESIGHT |
| Gross Weight: | 280G |
| Model Number: | FST-1000M |
| Place of Origin: | China (Mainland) |
| Measurement Frequency: | 10HZ |
| Laser Type: | Wavelength 905nm invisible laser |
| Laser Grade: | 1 |
| Input Voltage: | 5VDC or 6-24VD Options |
| Communication interface: | TTL; RS232/485 |
| Operation Temp.: | -10Degree to 60degree |
Quick Details
Specifications
|
Specifi |
|||
|
Type |

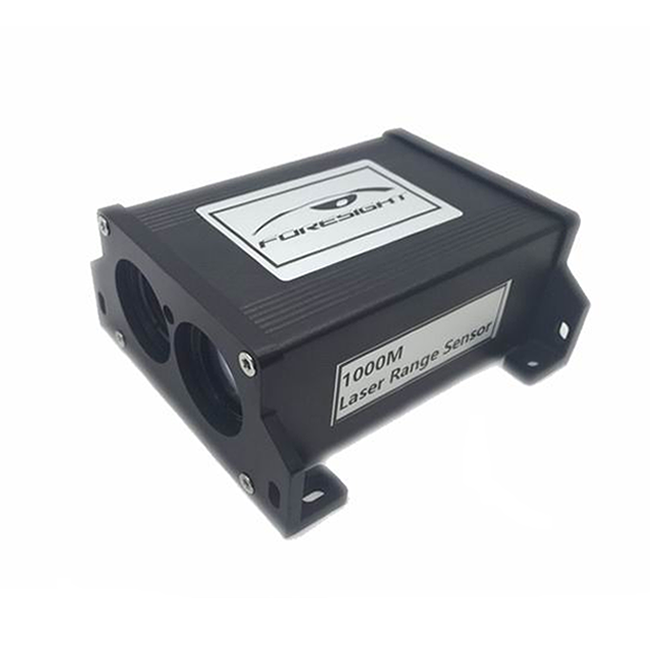

FST-1000 laser distance Module |
FST-1000 Laser distance sensor |
|
|
Measurement Range |
5-1000M |
||
|
Measurement Accuracy |
1M |
||
|
Resolution |
1M |
||
|
Measurement Frequency |
10HZ |
||
|
Laser Type |
Wavelength 905nm invisible laser |
||
|
Laser Grade |
1 |
||
|
Input Voltage |
5VDC or 6-24VD Options |
||
|
Communication Interface |
TTL |
RS232, RS485 |
|
|
Laser Energy |
>10mj |
||
|
Laser Life |
>20000h |
||
|
Spot Size |
50mm(1000M) |
||
|
Laser Diverging Angle |
<2mrad |
||
|
Aiming |
with the eyepiece or red light indicator |
||
|
Measurement Mode |
Continuous Measurement,Single Measurement,Command Control |
||
|
Operation Temp. |
-10---60Degree |
||
|
Protection Grade |
IP54 Options |
||
|
Dimensions |
62x32x72mm three M3 Screws; |
73x47x105mm Eight M3 Screws: |
|
|
Weight |
150G |
280G |
|
|
Field Angle |
150G 8.3degreeor 10degree |
||
