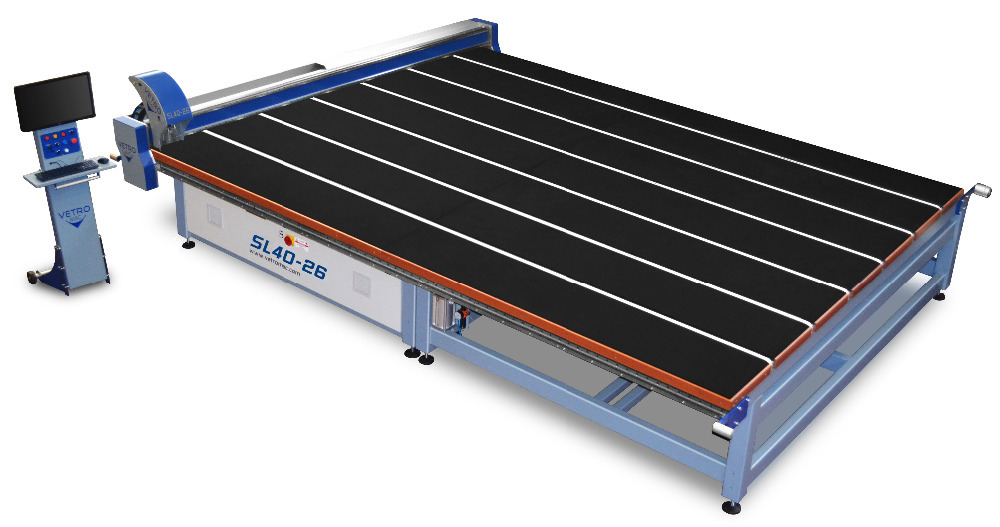

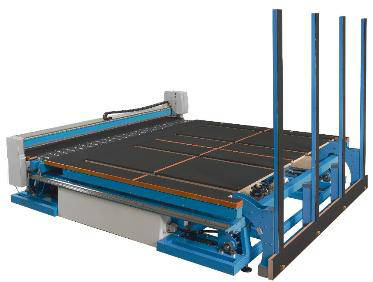

SZ-CUT-2520 CNC Glass Cutting Table Machine

The automatic glass cutting table is controlled by CNC, the AC servo motors achieve the point control in three

directions of X,Y,Z axises and 3-axis simultaneous.Two ways for transmission,belt and Pneumatic power. Straight

and shape cutting.All the main parts are imported. The machine with easy operation, wild range of using,fast

working speed, high precision, starting and braking fast,stable and accurate.

Modle	ST37-26
Max size	3700*2600mm
Thickness	2-19mm
Air use	50 lt/min
Cutting speed	160m/min
Cutting Tolerance	+/- 0.15 mm
Power	8kw
Pressure	6 bar
