Description

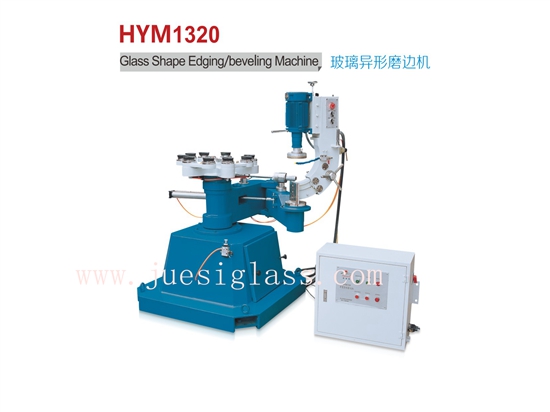

Glass Shape Edging Machine is suitable for processing the edge of round shape, oval shape & other irregular shape of glass sheet with various size and thickness. It can be process the round & oval shape glass semi-automatically. It adopts the different wheels to processing different shape like semicircular, flat edge and OG edge etc. Adopt the cup shape wheel and adjust the angle of motor can be processing the bevel edge.

Technical parameter

1. Processing thickness: 3~40mm

2. Dia: 100~2200mm

3. Max. Width of bevel: 35mm

4. Bevel degree: 0°~45°

5. Degree of vacuum should be reached: -0.08MPa~-0.1MPa

6. Water pressure: 0.1MPa~0.2MPa

7. Air source pressure: 0.6MPA~0.8MPa

8. Rotating speed of working table: 0.3rpm~3rpm

9. Rotating speed of independent turn plate: 0.7rpm~7rpm

10. Min. Incurvature radius: R100mm

11. Max. Rotating radius: 1500mm

12. Height of working table: 1100mm

13. Weight: 900KG

14. Power: 3.92KW

15. Dimension: 1100*1100*1800mm

16. Power suppler: customized.

17. Glass samples:
