| Model Number: | i508A |
|---|---|
| Brand Name: | InMax |
| Place of Origin: | China (Mainland) |
| type: | Full/Half duplex mode |
| RJ45 ports: | 10/100/1000BaseT(X) auto negotiation speed |
Quick Details
Specifications
Features and Benefits
1. with 8×10/100/1000BaseT(X) ports
2. Redundant dual 12/24/48 VDC power inputs,
Built-in over-current protection, Reverse Connection protection
3. -40 to 75℃Operating temperature range (WT Models)
4. No fan, low consumption, industrial design standard,
Industrial grade electronic components,
Environmental protection & lead-free production
5. Hard aluminum alloy case (Not sheet metal), DIN-rail and wall Mounting
6. IP Rating up to IP40
7.No packet lost in 72 hours Full load traffic testing
Introduction

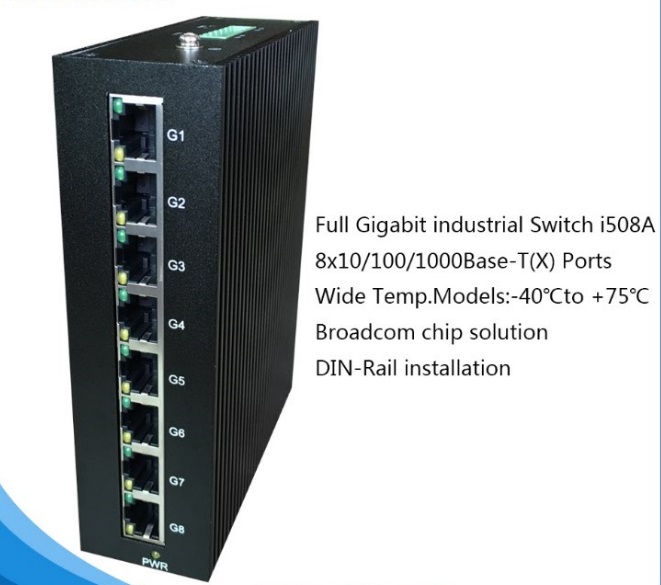

I508A Full Gigabit Unmanaged Industrial Ethernet Switches are equipped with 8 Gigabit Ethernet ports, making them ideal for applications that demand high bandwidth.
No fan, Low power consumption design, working function more steady, andNo packet lost in 72 hours full load Traffic testing.
It Accords with FCC, CE standard and industrial design requirement. It can work in -40 to 75℃Working temperature steadily, and provide reliable and quick solution for your Ethernet device.
Specs
Technology
Standards |
IEEE 802.3 for 10BaseT |
IEEE 802.3u for 100BaseT(X) | |
IEEE 802.3ab for 1000BaseT(X) | |
IEEE 802.3x for Flow Control | |
IEEE 802.3az for Energy-Efficient Ethernet | |
Flow Control |
IEEE 802.3x Flow Control |
Back Pressure Flow Control |
Switch Properties
Packet forwarding Rate |
13.392Mpps |
Processing Type |
Store and Forward |
MAC Table Size |
4 K |
Jumbo Frame Size |
9720Byte |
Backplane |
18G |
Packet Buffer Size |
1.5Mbit |
Interface
RJ45 Ports |
10/100/1000BaseT(X) Auto negotiation speed |
Full/Half duplex mode | |
MDI/MDI-X Connection | |
LED |
RJ45 Ports: Link G1~G8, Act G1~G8 |
Power: PWR |
Power Requirements
Connection |
1 removable 6-contact terminal block |
Input Voltage |
12/24/48VDC (9.6 to 60VDC),Redundant Dual Inputs |
No-load Power |
5W @ 24VDC |
Full-load Power |
8W @ 24VDC |
Redundant Dual Inputs |
Present |
Reverse Polarity Protection |
Present |
over current Protection |
Present |
Physical Characteristics
Housing |
Hard aluminum Alloy case |
IP Rating |
IP40 |
Dimensions (W × H × D) |
41 × 153.5 × 128 mm |
Weight |
575g |
Installation |
DIN-rail Mounting, wall mounting |
Environmental Limits
Operating Temperature |
Standard Models: -25 to 60℃ (-13 to 140℉) |
Wide Temp. Models: -40 to 75℃ (-40 to 167℉) | |
Storage Temperature |
-40 to 85℃(-40 to 185℉) |
Ambient Relative Humidity |
5 to 95% (non-condensing) |
