| After-sales Service Provided: | No overseas service provided |
|---|---|
| Brand Name: | Topleader |
| Place of Origin: | China (Mainland) |
| Load capacity: | 1-300T |
| Power source: | Battery |
| Running distance: | Unlimited |
| Running speed: | Adjusted |
| Color: | Red /Yellow /Blue /Customerized |
Quick Details
Specifications
Anti high temperature Coil car rail transfer cart for heavy cargo
Brief Introduction - steel product coil transporter
KPX Series coil transporter are battery powered. The Heat- resist coil transporter can be used both on the " S" and arc-shaped railways. The KPX series coil transporter are more safe and flexible and the running distance is not limited. It has no strict requirement for the construction of the railway. KPX series coil transporter is suitable to be used in the long distance transportation, and it is a great solution of industry heavy materials handling .
Advantages - Heat- resist coil transporter
- Travelling steady and durable;
- Running on the straight railways or on the 'S' and arc-shaped railways to carry many material;
- Can be used in the ferry condition and flammable, explosive environment;
- Suitable for the long running distance transportation;
- The hydraulic lifting device can be installed on coil transporter;
- The running distance is unlimited;
- The Heat- resist coil transporter has features of Stable start, big starting power, small impact to the gear reducer, low voltage, long lifetime and so on.
Working principle - steel product coil transporter
KPX Series Heat- resist coil transporter are battery powered. The battery are installed in the coil transporter. The battery supplies electricity to the DC motor through the electrical control system. We use this principle to make the car start, stop, move forward, move backward, adjust the speed etc.
Application - Heat- resist coil transporter
The coil transporter is applied in steel factory, turbine plant, meturallgy plant and so on. Generally the load capacity is large, can reach to 150 tons. It is commonly applied in steel plant, mechallurgy industry, aluminum factory, plastic pipes factory, etc. from producing line to store.
Parameters - steel product coil transporter
|
Model
|
KPX-2T | KPX-10T | KPX-20T | KPX-30T | KPX-50T | KPJ-63T | KPX-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 | |

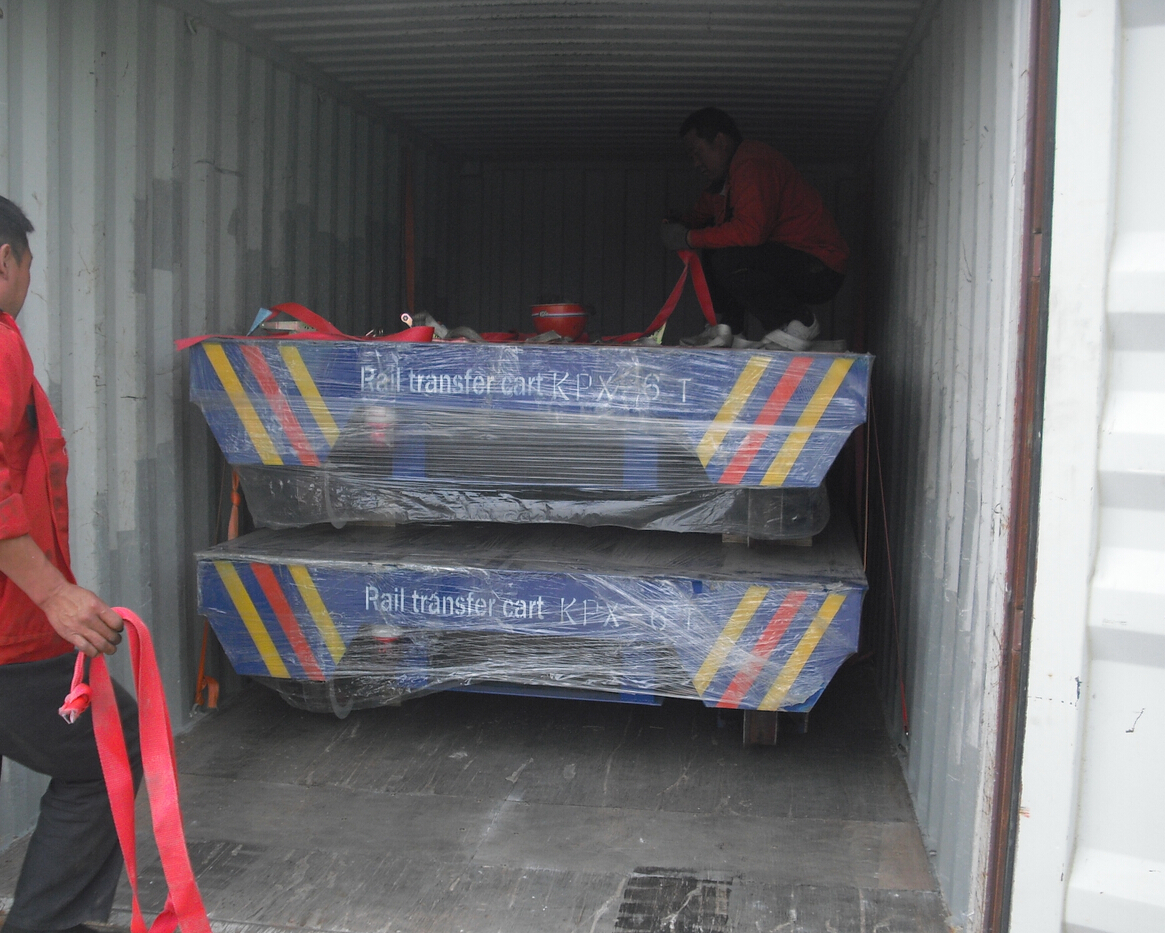

Packing & Delivery - Heat- resist coil transporter
The steel product coil transporter will be packed by the tarp, the parts will be packed by polywood case.
