| Feature: | Bridge Crane |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 12 months |
| Certification: | ISO 9001 |
| Model Number: | QD |
| Brand Name: | JUQI |
| Place of Origin: | China (Mainland) |
| Span: | 35M |
| Max. Lifting Height: | 50M |
| Max. Lifting Load: | 550T |
| Rated Lifting Moment: | 5500 KN |
| Rated Loading Capacity: | 550ton |
| Application: | steel factory, warehouse, etc. |
| Condition: | New |
Quick Details
Specifications
QD model double girder bridge crane
1. The complete picture
3. The main components
1. The complete picture
(1) It is composed of beam frame, crane travel device, and the trolley with lifting and moving device. The trolley moves on the main beam for paving the rails.
(2) Assembling the moving table on the outside of the two main beam, one side is prepare for assemble and maintenance of moving device, another side is prepare for assemble of the trolley conductor.
(3) There are commodious cab suspending under the main beam, there are joint control desk or single control box packed within the cabin, there is the sidelong ladder between the cabin and moving table.
(4) The main beams joint with the two side end carriage and joint point is in the middle.
2. Technical Specification
|
Technical specification |
|
|
Model number |
5t-550t double beam overhead crane |
|
Capacity(main hook) |
5~550ton |
|
Capacity(Aux hook) |
as your requirement |
|
Span |
7.5m-35m |
|
Lifting height |
6m, 9m, 12m, 18m, 24m, 30m |
|
Lifting unit |
Wire rope electric trolley |
|
Industrial voltage |
380V,50Hz,3Phase or as your demands |
|
Control methods |
Pendant push button, remote controller or cabin control |
|
Working temperature |
-25°C~+42°C |
|
Working class |
A5, A6, A7 |
|
Color of crane |
Red, yellow or as your demands |
|
Q235 steel plate |
|

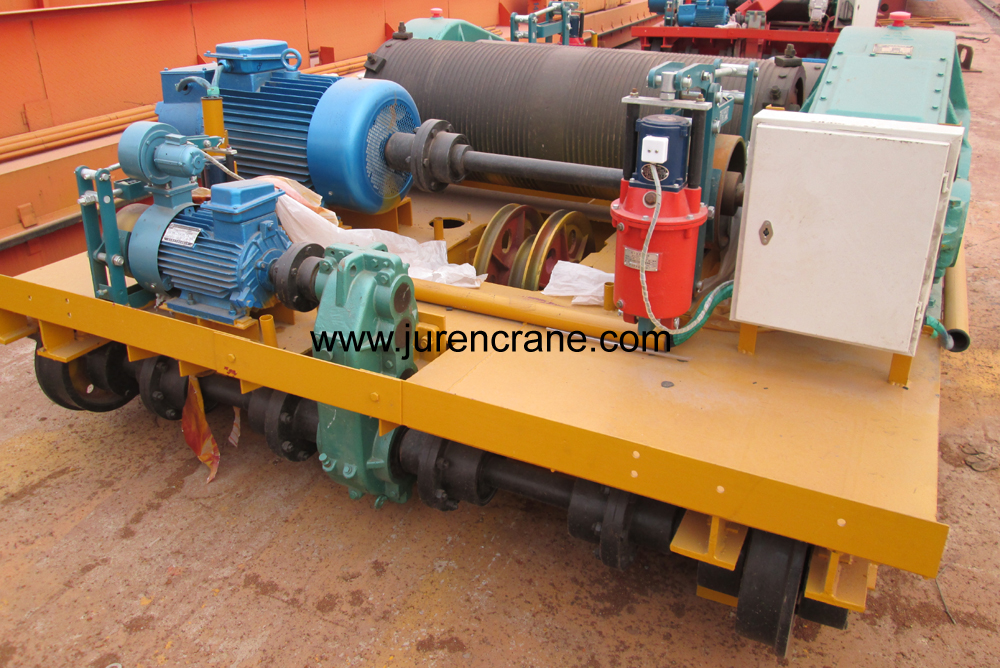

3. The main components
