Product Main

Quick Details

Place of Origin: China (Mainland)
Length: From 1m to 6.1m
Grade: TP2
Specification: From 8mm to 159mm
Application: Medical Gas
Type: Straight Copper Pipe
Standard: En 13348
Certification: CE, ISO, RoHS, SGS

Specifications

Straight Copper Pipe Tube for Medical Gas

1.
Production Specifications

Product Pictures

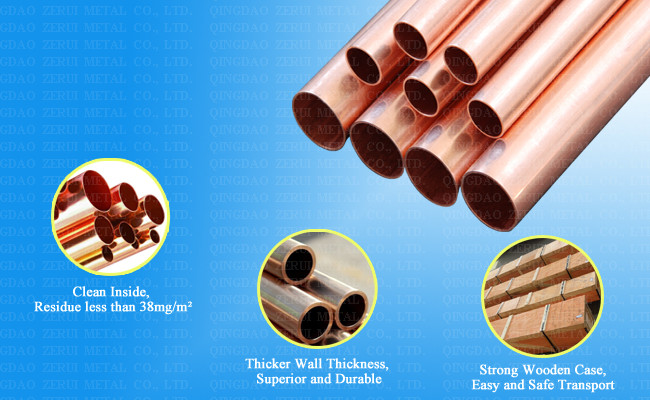

Straight Copper Pipe Tube for Medical Gas


Chemical Composition & Mechanical Property

Copper Alloy Chemical Composition Temper Mechanical Property
Copper
% 		Phosphorus
% 		Tensile Strength
MPa 		Elongation
% 		Hardness
HV
Cu-DHP ≥ 99.90 0.015-0.040 R220 ≥ 220 ≥ 40 40-70
Cu-DHP ≥ 99.90 0.015-0.040 R250 ≥ 250 ≥ 30 75-100
Cu-DHP ≥ 99.90 0.015-0.040 R290 ≥ 290 ≥ 3 ≥ 100


Cleanness Requirement - Medical Gas Copper Tube

Copper Alloy Temper Cleanness Standard
Cu-DHP R220 ≤ 20mg/m2 EN 13348
Cu-DHP R2250 ≤ 20mg/m2 EN 13348
Cu-DHP R290 ≤ 20mg/m2 EN 13348


Size Range:

Medical Gas Copper Tube
Outside Diameter (mm) Wall Thickness (mm) Weight       (kg/5.8m) Temper Safe Working Pressure  (kPa)
8 0.8 0.94 R220, R250, R290 10200
10 0.8 1.20 8100
12 0.8 1.46 5230
15 0.7 1.63 4500
22 0.9 3.09 3900
28 0.9 3.98 3100
35 1.2 6.61 3300
42 1.2 7.98 2700
54 1.2 10.33 2100
67 1.2 12.81 1700
76 1.5 18.24 1800
108 1.5 26.04 1300
133 1.5 32.15 1000
159 2.0 51.18 1200
