| Type: | Inkjet Printer |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Weight: | 1600KG |
| Dimensions(L*W*H): | 5.8*1.7*1.7m |
| Gross Power: | 1500W |
| Color & Page: | Multicolor |
| Automatic Grade: | Automatic |
| Usage: | |
| Model Number: | YD-H3200R5 |
| Brand Name: | YOTTA |
| Place of Origin: | China (Mainland) |
| Plate Type: | Flatbed Printer |
| Condition: | New |
Quick Details
Specifications
Product Description
adopts imported original grey level Ricoh G5 internal heating industrial printhead,the number of printhead can be increased or decreased according to your requirements,the print speed can up to 38㎡/h (4 PASS),Can meet the demands of large quantities production capacity,Specially design a high-speed and high - precision UV printer for medium and small size processing enterprises and can meet their high precision and high speed production requirements.
Application fields
Rigid materials:glass,acrylic,leather,wood ,metal
plate,pvc board,waved plate,corrugated
sheet,reflective film etc.
Flexible materials:wallpaper,advertising paper,car sticker etc..
Specification
|
Printer model |
YD-H3200R5 |
|
Print head |
Ricoh-Gen5 |
|
Number of nozzles |
3-8 pcs |
|
Power |
8.5 KW (38A) |
|
Print width |
3.2 m |
|
Print materials |
Rigid materials and Flexiable materials |
|
Print thickness |
Max. 50 mm |
|
Printing speed |
4 PASS: 38 m2/h; 6 PASS: 29 m2/h; 8 PASS: 22 m2/h. (Single row) |
|
Ink color |
C,M,Y,K,Lc,Lm (optional) |
|
Ink type |
Environmental UV curing ink(No VOC) |
|
Special ink |
UV white ink |
|
Input format |
Adobe Postscript Level 3,PDF, JPEG,TIFF,EPS,AI |
|
Printer weight |
1550KG |
|
Printer Dimension |
5.8m[L] × 1.7m[W] × 1.6m [H] |
|
Environment requirement |
Independent, clean, low dust, low light, well-ventilated workplace environment temperature: 18℃~ 30℃ (64℉~ 86℉) Relative Humidity: 30% to 70% (non-condensing) Ventilation: Recommended use overhead exhaust fan, exhaust the amount of 600 cfm |

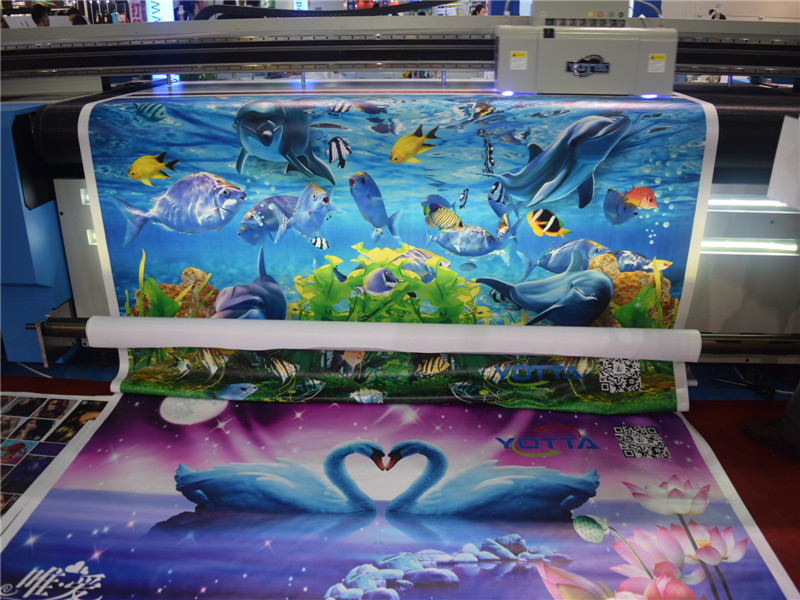

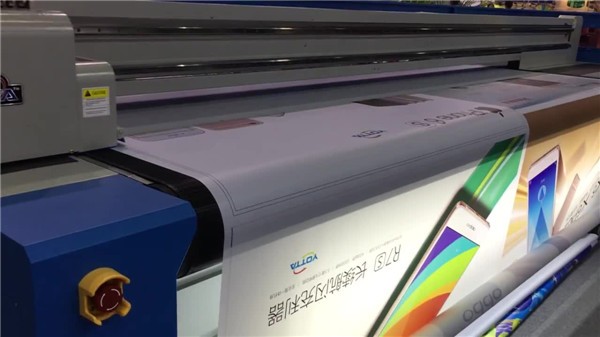

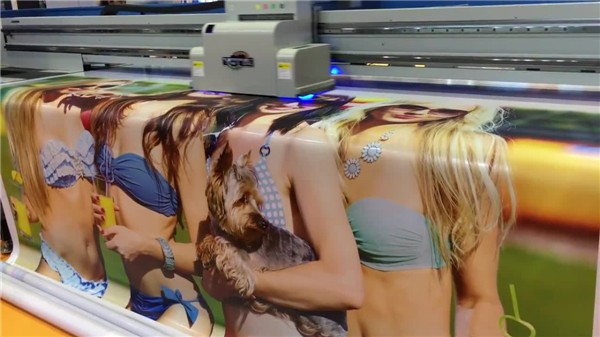

Printing Sample




Packing and Delivery
Packaging & Delivery
|
Packaging Details: |
Wooden box |
