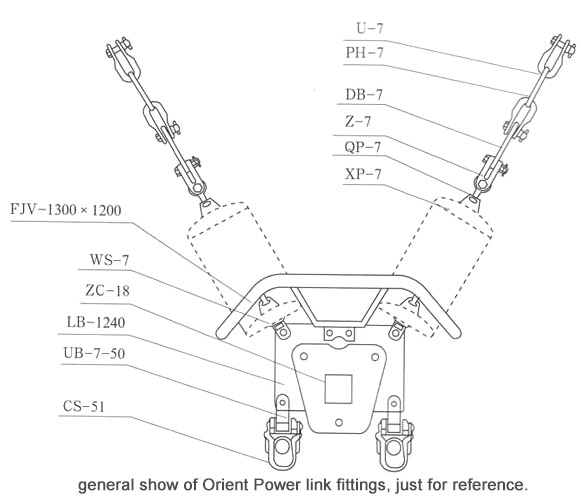

Common types of coupling hardware:
ball eye: Q-7, QP-7, QP-10, QP-12...
QH-7, QH-10, QH-12, QH-16, QH-21...
Ball eye with arcing horn holes

Ball clevis
ball clevis with arcing horn holes

Socket clevis eye
socket clevis eye: W-7A, W-7B, W-10, W-12...
socket clevis eye with arcing horn holes

U shackles: U-7, U-10, U-12, U-16, U-21...

Clevis clevis: Z-7, Z-10, Z-12, Z-16, Z-21...
clevis hinges

U bolt: U-1880, U-2080, U-2280...

Trunnion clevises, twisted strap

extensive link, eye link, extension rod, Adjusting plate,

Yoke plate

Compression lug

The features of coupling hardware:
material of the coupling hardware: casting iron, forged iron, hot dip galvanized type, copper, aluminium

coupling size: suitable for the insulator at insulator end, coupling each other among link fittings.

mechanical strength: 40KN, 70KN, 100KN, 120KN, 160KN, 210KN, 240KN, 300KN, 400KN 500KN

when enquire the coupling hardware, the mechanical strength is a important parameter, coupling size and coupling length is necessary for some link fitting types. More information please contact Orient Power directly.
