| Item Type: | Ceiling Lights |
|---|---|
| Light Source: | LED |
| Model Number: | BKD20-270PC |
| Brand Name: | Cheerglory |
| Place of Origin: | China (Mainland) |
| Certification: | CE,RoHS |
| IP Rating: | IP65 |
| Lamp Body Material: | Aluminum |
| Working Lifetime(Hour): | 50000 |
| Working Temperature(℃): | |
| Color Temperature(CCT): | Pure White |
| CRI (Ra>): | 70 |
| Lamp Luminous Efficiency(lm/w): | 60 |
| Lamp Luminous Flux(lm): | 1200 |
| Lamp Power(W): | 20 |
| Input Voltage(V): | 85-265 |
| Install Style: | Surface Mounted |
| LED Light Source: | SMD |
| Power: | 20w |
| Material: | AL+ PC |
| Microwave sensor: | Yes |
| Warranty: | 3 years |
Quick Details
Specifications
Microwave sensor round 20w IP65 LED ceiling Light
Product Picture:
3, Product Size:
4, Product Parameters:
4.1, Electricity Parameters:
|
NO |
Items |
Parameters |
|
1 |
Input Voltage |
90-265V 42-63HZ |
|
2 |
Input Current |
0.114A(230V) |
|
3 |
Power |
20W |
|
4 |
Output Voltage |
30V |
|
5 |
Output Current |
0.67A |
|
6 |
Power Factor |
>0.9PF |
|
7 |
Luminous Efficiency |
≥85% |
4.2, Optical Parameters:
|
NO |
Items |
Parameters |
|
1 |
Beam angel (H,V) |
115° |
|
2 |
Peak Light Intensity |
514cd |
|
3 |
Luminous Flux |
1000/1500Lm |
|
4 |
Color Rendering Index |
≥75Ra |
|
5 |
Color Temperature |
2800-3200k /4000-4500k/5500-6000k |
4.3, Physical Parameters:
|
NO |
Items |
Parameters |
|
1 |
Working temperature |
-40°— 60° |
|
2 |
IP range |
IP65 |
|
3 |
N.W |
1.4Kg |
|
4 |
Length |
270mm |
|
5 |
Width |
270mm |
|
6 |
Height |
80mm |

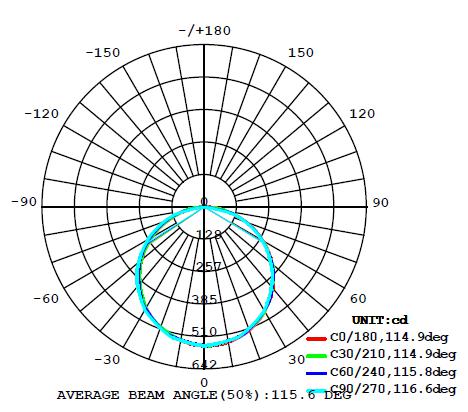

5, Light Intensity Distribution Curve:
6, Packing:
|
No |
part |
size |
parameter |
picture |
|
1 |
Inner Packing |
Box Size |
280*280*95mm |
|
|
Weight |
1.52Kg |
|||
|
2 |
Outer packing (5/case) |
Box Size |
465*285*285mm |
|
|
Total weight |
8.4Kg |
7. Attentions:
7.1, Take 4pcs 5*40mm screw to fix the lamp to the wall, take 4pcs 5*16mm screw to fix the lamp base and lamp cover.
7.2, Installation methods : with the tapping screws installed two holes of base to specified location( two holes are on the diagonal of base ).
7.3, when fix the lamp body, drill a hole with 6mm-7mm on the wall, hammer into the expansion bolt. Screw through the screw hole of lamp body , screw in the expansion bolt . installation over . see the picture :
