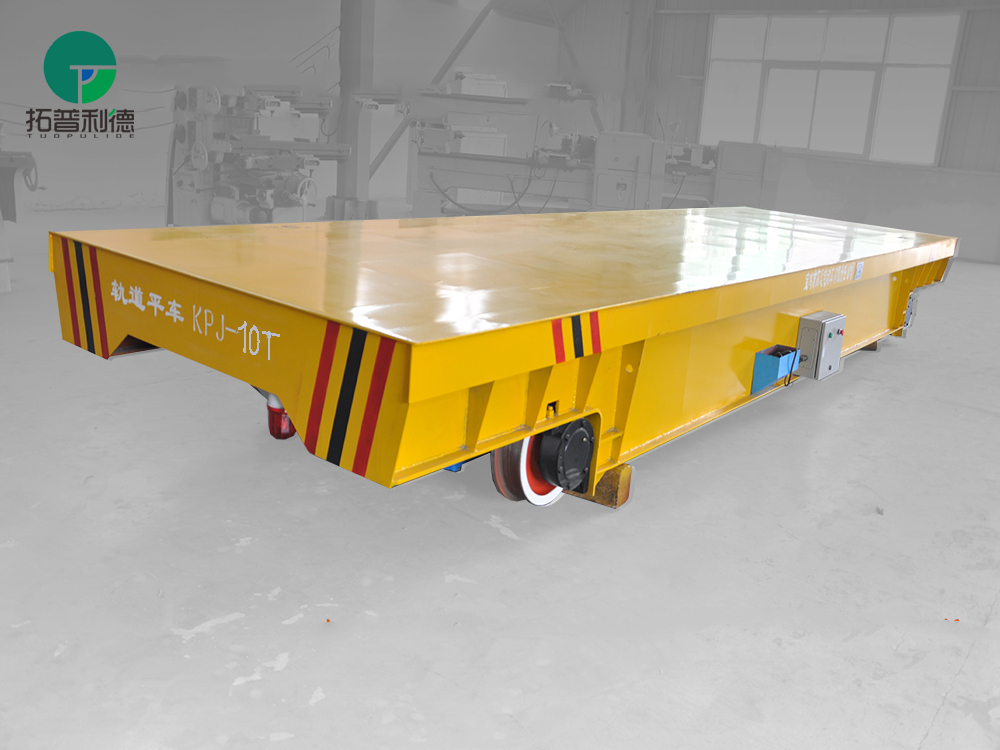

long distance Precise pipe industry on rail transfer wagon transportation system


1.Brief Introduction:

The Precise pipe industry metal spring handling car are powered by the cable reels. The hydraulic lifting device can be installed on the metal spring handling car . This series' Precise pipe industry metal spring handling car on rails are suitable to be used in the bad environment, for example, high-temperature and explosive condition.

Compared with the KPX series, the using time is not limited; Compared with the KPD series, it has no strict requirements for the railway. The load capacity is not limited and can be used frequently. If the running distance is more than 50m, a cable arranger needs to be installed to arrange the cables. The running distance of KPJ series can reach to 200m.

  long distance Precise pipe industry on rail transfer wagon transportation system


2.Techincal parameters:

model KPJ-2T KPJ-10T KPJ-20T KPJ-30T KPJ-50T KPJ-63T KPJ-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100


3.Performance features:

  • The metal spring handling car on rails is Anti-explosion,Anti-high temperature;
  • With lifting holes, convenient to shipment;
  • Stable start, big starting power, long lifetime;
  • The Precise pipe industry metal spring handling car has no strict requirement for the railway;
  • Simple structure, low cost ;
  • Running distance can reach to 200m;
  • The Precise pipe industry metal spring handling car's using time is not limited;
  • Safe and convenient operation ;
  • The hydraulic lifting device can be installed on the Precise pipe industry metal spring handling car on rails ;
  • High using frequency ;
  • The Precise pipe industry metal spring handling car on rails has Unlimited load capacity.


    • long distance Precise pipe industry on rail transfer wagon transportation system


    4.Package and delivery:

    Thinking of customers' benefits, we always pack thePrecise pipe industry metal spring handling car on rails scientifically and carefully and arrange delivery as soon as possible.
    long distance Precise pipe industry on rail transfer wagon transportation systemlong distance Precise pipe industry on rail transfer wagon transportation system

    5.Certificates:

    long distance Precise pipe industry on rail transfer wagon transportation system
