36kV Outdoor High Voltage Power Line Composite Deadend Insulator:

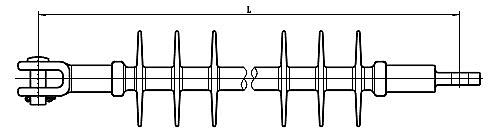

Dead end suspension insulators pictures and drawings:

Dead end suspension insulators specifications:

Code No. Rated voltage- kV Section length (L)
-mm Creepage distance
-mm Dry arcing Distance Specified mechanical load-kN Power frequency flashover voltage-kV Impulse critical flashover pos.-kV

dry wet

15 325 450 208 70 90 65 140

15 360 560 248 70 90 65 140

25 400 670 288 70 130 100 190

25 440 760 320 70 130 100 190

35 480 778 360 70 145 130 250

35 520 990 400 70 145 130 250

46 560 1095 440 90 180 145 280

46 590 1190 480 90 180 145 280

69 640 1300 518 90 200 165 330

69 680 1410 536 90 220 185 360

69 720 1510 575 90 220 185 360

Code No.	Rated voltage- kV	Section length (L) -mm	Creepage distance -mm	Dry arcing Distance	Specified mechanical load-kN	Power frequency flashover voltage-kV		Impulse critical flashover pos.-kV
Code No.	Rated voltage- kV	Section length (L) -mm	Creepage distance -mm	Dry arcing Distance	Specified mechanical load-kN	dry	wet	Impulse critical flashover pos.-kV
	15	325	450	208	70	90	65	140
	15	360	560	248	70	90	65	140
	25	400	670	288	70	130	100	190
	25	440	760	320	70	130	100	190
	35	480	778	360	70	145	130	250
	35	520	990	400	70	145	130	250
	46	560	1095	440	90	180	145	280
	46	590	1190	480	90	180	145	280
	69	640	1300	518	90	200	165	330
	69	680	1410	536	90	220	185	360
	69	720	1510	575	90	220	185	360
