       2X2 HDMI Switcher/Splitter


Enjoy the vivid world!


this 2x2 HDMI Switcher/Splitter can connect two HD Signal sources with two HD display terminals, it allows two HDMI signals to be Split or switched to two HDMI compatible monitors or projectors. and it can Amplify your HDMI signals at the same time. this two singal sources can be Switched freely via button or remote control. the HDMI Switcher/Splitter also Can support full HD video format, highest resolution up to 1080p/60Hz.  HDMI switchsplitter 2x2


L Support HDMI 1.4a

L Support 3D

L Support Highest video resolution 1920x1080p/60Hz

L Support 2.25Gbps Data rate for tmds clock up to 225MHz

L Support 8/10/12 bit deep color

L Support AWG26 HDMI standard cable, input up to 15 metres, output up to 25 metres

L Support Single high definition display and multiple output HD signal sources, such as DVD Players, A/V receivers and Set Top Boxes

L IR Remote Control for operational flexibility and easy control

L Need DC5V/1A power supply



Product Pictures:

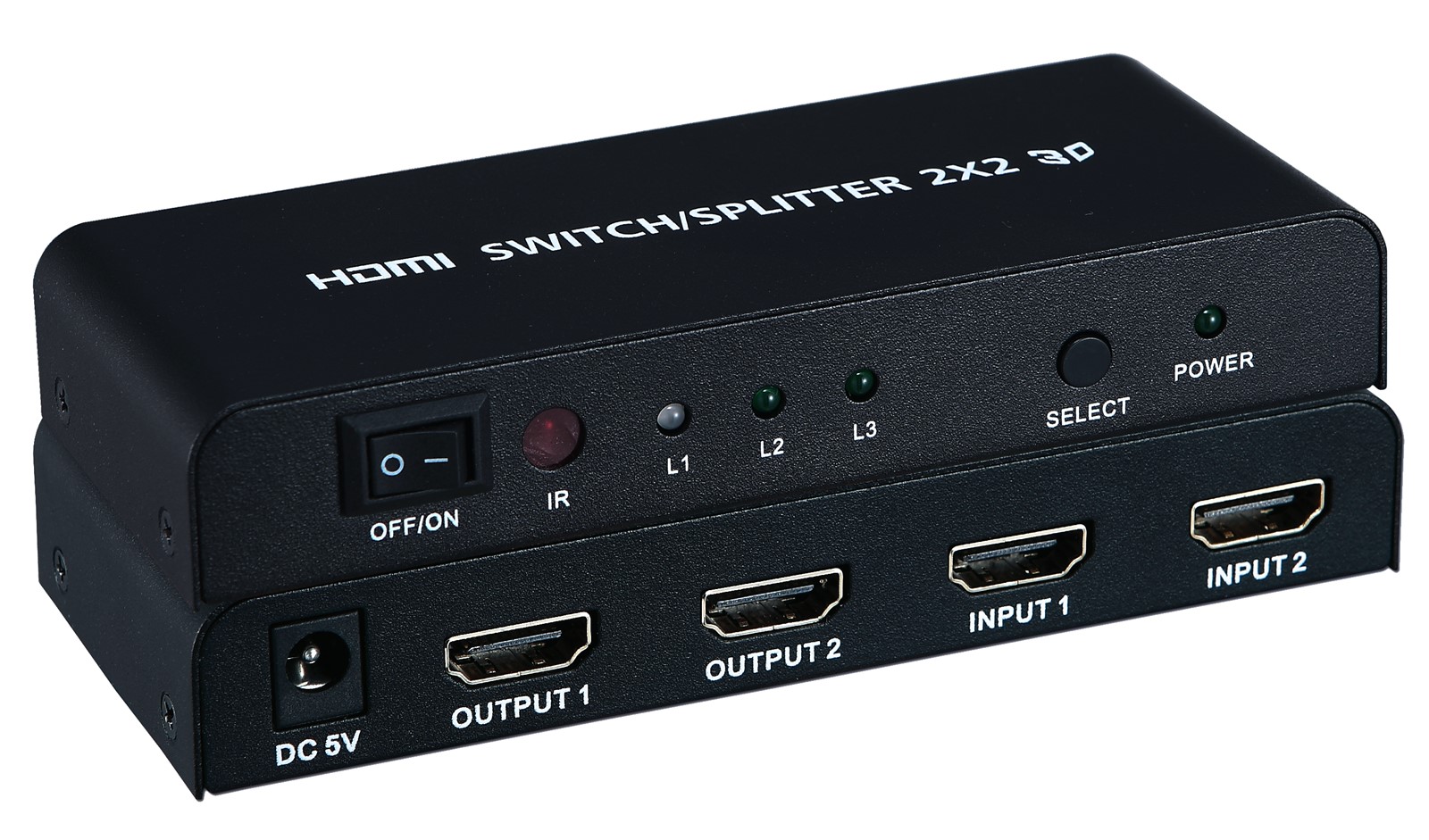

 HDMI switchsplitter 2x2

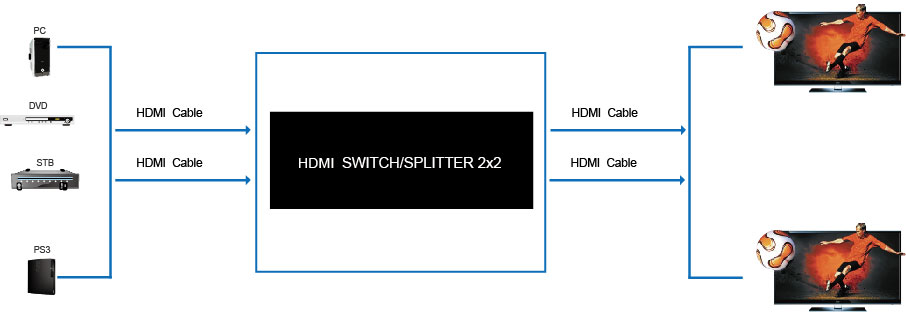

Physical Connection Showing Picture

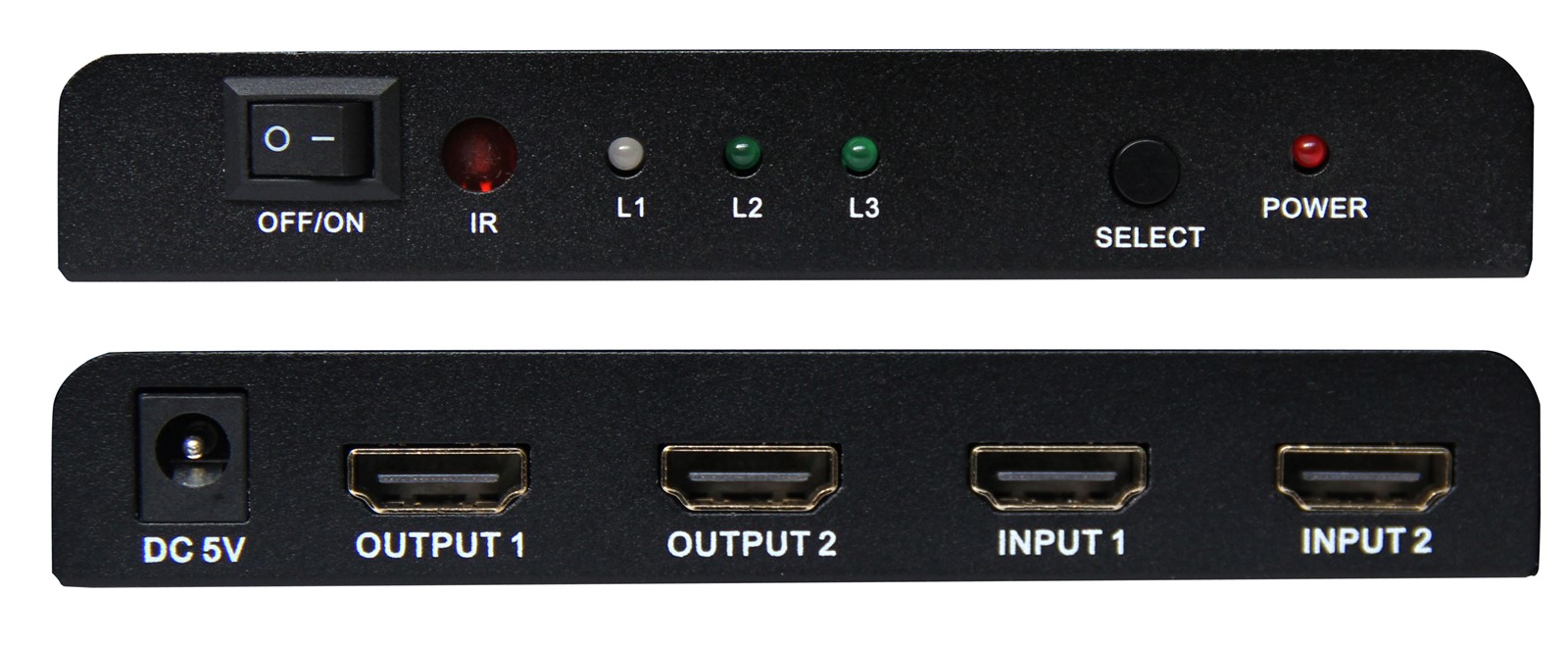

 HDMI switchsplitter 2x2

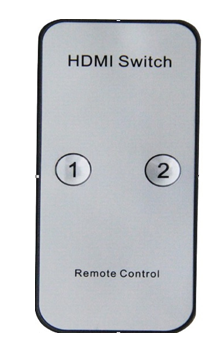

IR Remote Control:

HDMI switchsplitter 2x2

1) Press the key 1 to switch to the input 1, L1 indicator turns red



2) Press the key 2 to switch to the input 2, L1 indicator turns blue





Specification:

HDMI Version   ………………………………………..…………………………….. HDMI 1.4a

HDMI Resolution …………………….......24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support Video format ……………………....................……..……..…  8/10/12 bit deep color

Support Audio format……………..............…. DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max Bandwidth………………………………………………………….………………….225MHz

Max rate……………….…….………………….……………………...................2.25Gbps

Input Cable distance..…... …………………………..……≤15m AWG26 HDMI standard cable

Output Cable distance………………………………….…...≤25m AWG26 HDMI standard cable

HDMI Input Port.....................................................................................................................2

HDMI Output Port...................................................................................................................2

Max Working current……………………….……………..……………………………….....500mA

Power Adapter format.........................Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range……..…………….………………………………… (-15 to +55℃)

Operating Humidity range.......................................................5 to 90%RH (No Condensation)

Dimension (L x W x H)     ………………………………..…….….………………128x53x20 (mm)

Weight…..……………………………………………………….....…….………………………140g



Operating and Connecting

1:  Connect HDMI source device and HDMI Switcher/Splitter Input with two HDMI cables.

2:  Connect displayer and HDMI Switcher/Splitter Output with two HDMI cables.

3:  Connect 5V/1A power Adapter to the HDMI Switcher/Splitter.



the Package includes:



1. 2X2 HDMI Switcher/Splitter



2. IR Remote Control



3.5V DC Power adapter



4.User Manual
