| Rated Voltage: | 12KV |
|---|---|
| Application: | Low Voltage |
| Material: | zinc oxide |
| Type: | Insulator |
| Model Number: | YH5W-12L |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

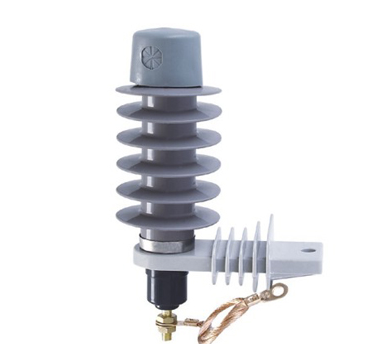

12 KV Lightning Thrunder Surge Arrester/ Lighting Protection YH5W-12L
| Code No. | Rated Voltage(kV) |
MCOV (kV) |
Current impulse Residual Voltage |
Long impulse withstand current 2000 μs |
4/10μs High current impulse withstand |
||
|
1/4μs Steep current impulse (kV) |
8/20μs Lightning current impulse (kV) |
30/60μs Switching (kV) |
|||||
| YH5W-12L | 12 | 10.2 | 42.2 | 36 | 27 | 100 | 65 |
| YH10W-12L | 12 | 10.2 | 42.2 | 36 | 27 | 250 | 100 |
