| Rated Voltage: | 10kv-36kv |
|---|---|
| Application: | High Voltage |
| Material: | Porcelain |
| Type: | Insulator |
| Model Number: | Porcelain station post insulator |
| Brand Name: | JUNAI |
| Place of Origin: | China (Mainland) |
| COLOR: | WHITE |
Quick Details
Specifications
Porcelain stay insulator also called porcelain guy strain insulator / ceramic guy wire insulator is an insulator generally of elongated shape with two transverse holes or solts. Porcelain stay insulator can be designed in eight corners, four corners or egg/ walnut type. Porcelain stay insulator is used for it irreplaceable function for distribution power system and outstanding features. Stay insulator is designed in accordance with international standards.
ANSI porcelain stay Insulator main technical parameters:
:
TypeCreepage distance (mm)41485776Main dimensions (mm)H89108140171h44577967h16476103114D64738689d44546060d116222525Mechanical failing load-kN44538989Power frequency flashover voltage-kVDry25303540Wet12151823Applicable standardANSI

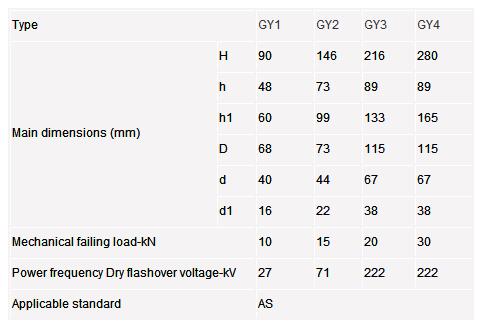

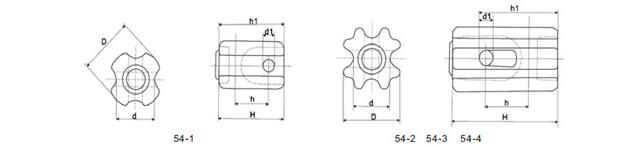

AS porcelain guy strain Insulator main technical data, drawings and images is showing as follow:
