In most of case, they are used in high temperature, high pressure working conditions ,such as high concentration of alkali process .They have been exported to some Iran projects .



Features

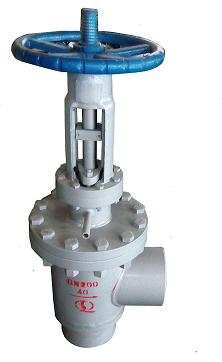

1. The angle type welded valve body has smooth channel. Since the flow resistance is small, medium will not get blocked.

2.The end-to-end dimension is shorter than that of the straight -through globe valve .

3.For easy disassemble and convenient operation, the valve bonnet and valve body are connected by bolt.

4.There is a preheating device installed on the valve bonnet of the globe valve. The hot stream imported can effectively dissolve the crystalline under normal temperature.

Technical Parameters

Size : 2" ~8" DN50~DN200

Pressure: Class 150~Class 900   PN1.0~PN16

Body material : WCB(A105), WC6,CF8(304), CF8M(316), CF3(304L), CF3M(316L) etc

Connection type: Flange

Operating type: Manual, electric



Application

 chemical industry

Chlor-alkali industry
