Quick Details

Rated Voltage: 5-220KV
Application: High Voltage
Material: Composite Polymer
Type: Insulator
Model Number: FXBW
Place of Origin: China (Mainland)

Specifications

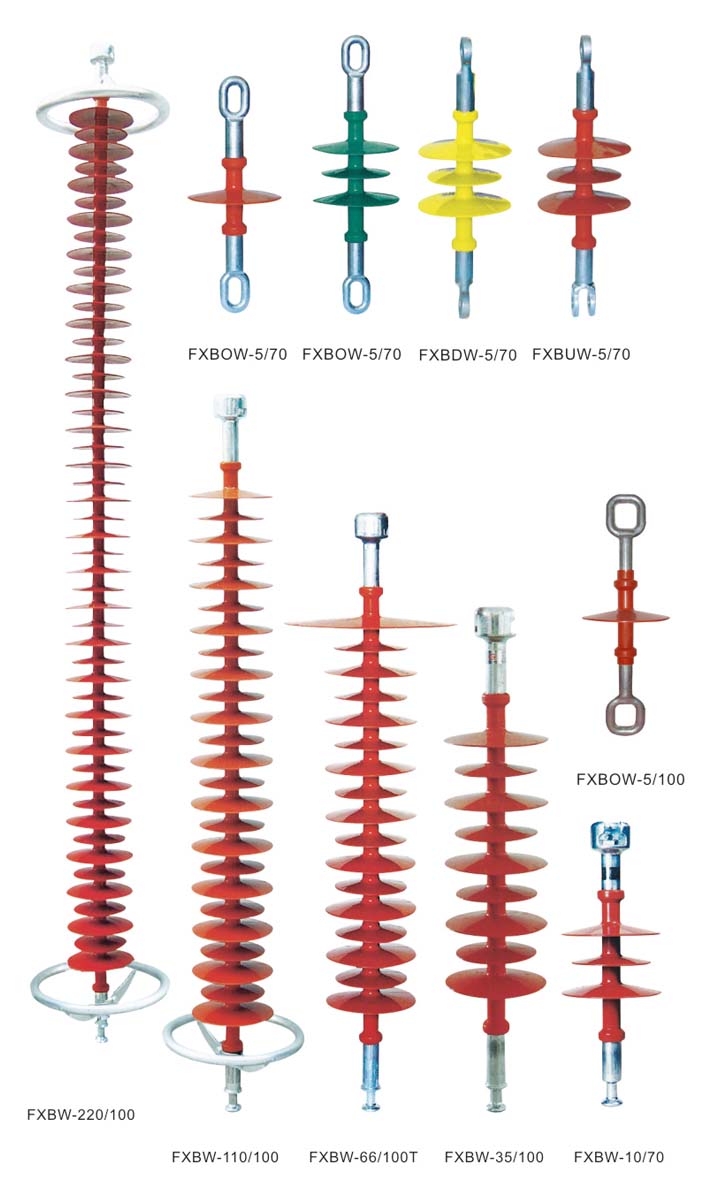

High Voltage 110KV, 220KV Rod Composite String Insulator FXBW

Composite suspension insulator is used on T&D overhead lines, especially for transmission lines. This type composite long rod insulator can be divided into suspension insulator and tension insulator (also called strain insulator). Composite suspension insulator is irreplaceable in transmission line system. 10KV ~ 800kV voltage levels are available.

Standards: ANSI C29.11, ANSI C29.12


High Voltage 110KV 220KV Rod Composite String Insulator FXBW

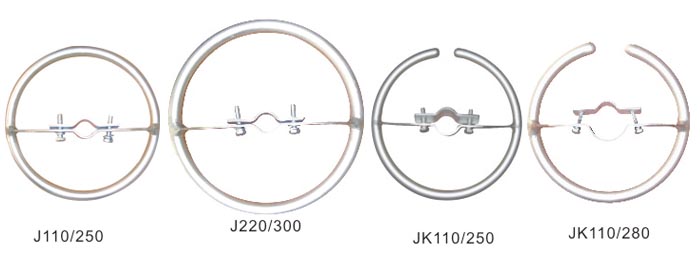

Grading ring
High Voltage 110KV 220KV Rod Composite String Insulator FXBW



Type 		Rated voltage (KV) Nominal tensile load  kN Linkage flag Structure height mm Insulation distance mm Min nominal creepage mm Lightning full wave impulse withstand voltage       kVp 1min Lightning full wave impulse withstand voltage Diamter of grading ring      mm
FXBOW4-5/70 1~5 70 16W 298±10 127 288 58 30
FXBWO4-5/100 1~5 100 16W 298±10 127 288 58 30
FXBW4-5/70 1~5 70 16W 280±10 127 288 58 30
FXBW4-10/70 10 70 16W 365±10 180 500 95 60
FXBW4-10/100 10 100 16W 430±10 180 500 95 60
FXBW4-35/70 35 70 16W 640±10 489 1366 230 95
FXBW4-35/100 35 100 16W 680±10 489 1366 230 95
FXBW4-66/70 66 70 16W 885±10 716 2243 410 185
FXBW4-66/100 66 100 16W 925±15 716 2243 410 185
FXBW4-110/70 110 70 16W 1245±15 1093 3559 550 230 250
FXBW4-110/100 110 100 16W 1285±15 1093 3559 550 230 250
FXBW4-110/160 110 160 20R 1290±15 1093 3459 550 230 250
FXBW4-220/100 220 100 16W 2280±15 2082 7020 1000 395 300
FXBW4-220/160 220 160 20R 2280±15 2082 6870 1000 395 300
FXBW4-330/160 330 160 16W 3270±15 2950 9690 1425 570 400
FXBW4-330/160 330 160 20R 3160±15 2950 9600 1425 570 400
FXBW4-66/100T 66 100 16W 925±15 716 2343 410 185
FXBW4-110/100T 110 100 16W 1285±15 1093 3659 550 230 250
FXBW4-220/100T 220 100 16W 2280±15 2082 7120 1000 395 300
