| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Weight: | 4500KG |
| Dimension(L*W*H): | 2.8m*1.7m*2.5m |
| Power(W): | 5.5 |
| Voltage: | 10mpa |
| Model Number: | KS50-2L |
| Brand Name: | KAISU |
| Place of Origin: | China (Mainland) |
| Automatic: | Yes |
| Blow Moulding Type: | Extrusion Blow Moulding |

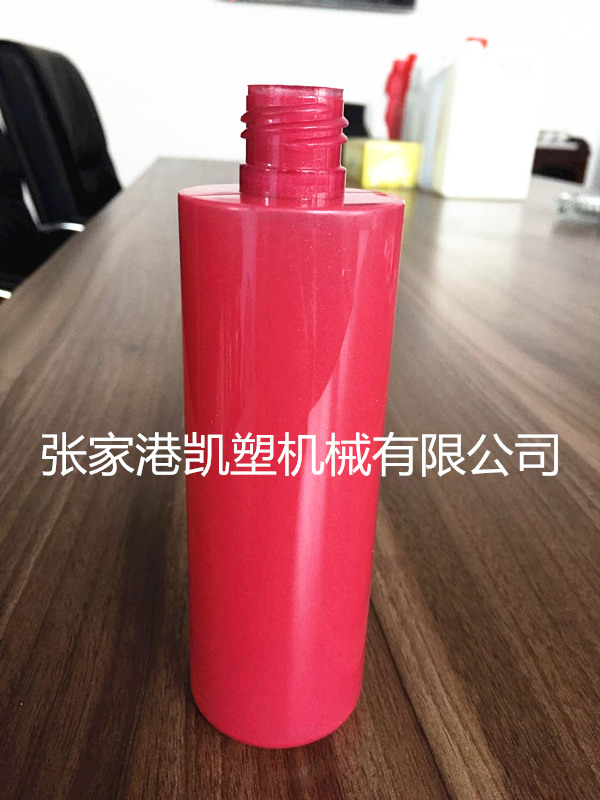

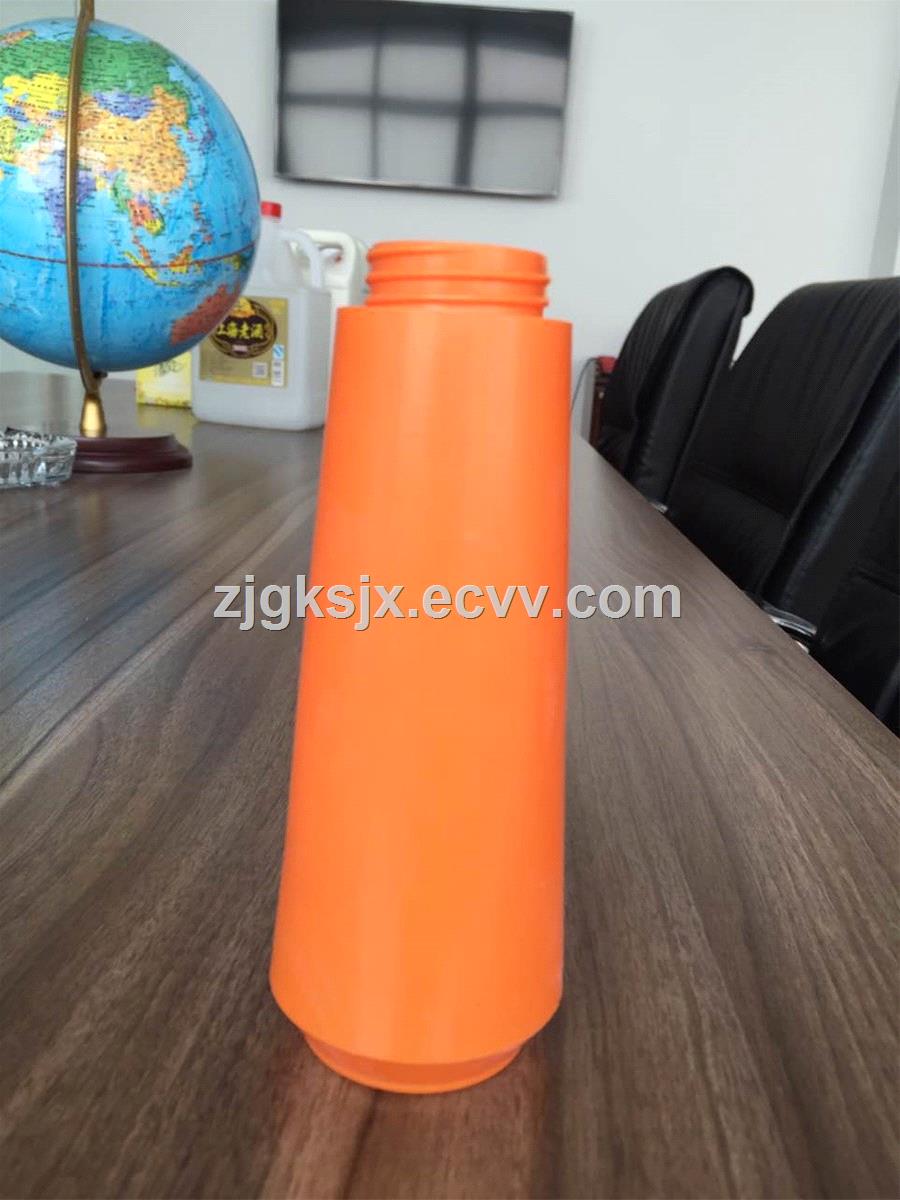

| Application: | Bottle |
| Condition: | New |
| Dry cycle: 180-190: | Number of die:1.2.3.4 |
Quick Details
Specifications
KAISU company insist on the concept of " progress by innovation,founation by integrty,strive by service" .
5.5

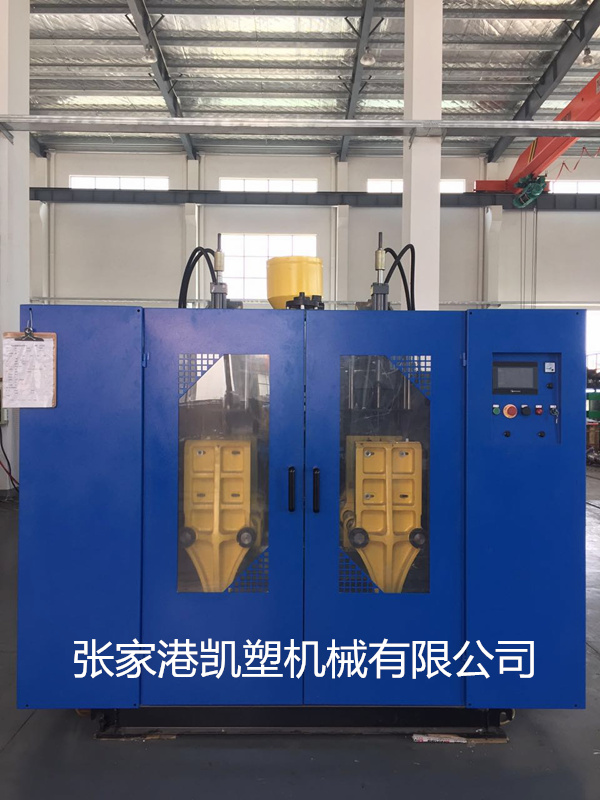

KS blow molding machine using a continuous die design, Taiwan Wei Lun touch screen display, Mitsubishi PLC control. All Chinese / English display man-machine dialogue, direct and clear, easy to operate. The accessories are well-known brand configuration, design reasonable, simple and elegant appearance of the machine, the inherent stability and can fully meet your production of plastic products of the requirements.
TECHNICAL CHARACTERISTICS:
We adopt spiral mandril combination system,which owns high adaptability with multi-sections up to 7 layers.The multi-layer extrusion head is adopted with flowage differentiation design,to achieve fine circumference distribution.The material distribution is well-proportioned,suitable for producing wide range plastic material,which owns well self-cleaning function at low extrusion capacity.The unique delamination runner design could eliminate the joint line completely and improve the color eliminate the joint line completely and improve the color-changing efficiency highly!
BASIC EQUIPMENT
Clamping System:Three platen linkage+double station linear slider
Extrusion System:Hard gear box+inverter
Die System:Control-incoming die with special control
Hydraulic System:Hydraulic valve,seal parts+proporional control
Control System:ImportPLC+Human-PLC automatic temperture control model
Parsion Controller:MOOG
Specifications
Unit
KS50-2L
Material
PE.PP.PV.PVC.PA...
Max container capacity
L
2
Machine Dimension(L*W*H)
M
2.8*1.7*2.5
Total weight
ton
4.5
Clamping
Clamping force
KN
60
Platen opening stroke
mm
130-370
Platen size
mm
300*335
Mould thickness
mm
135
Power
Motor power of oil pump
KW
Air pressure
Mpa
1.0
Air consumption
M3/min
0.4
Average energy consumption
KW
12
Extruder unit
Screw diameter
mm
50
Screw L/D ratio
L/D
25:1
Plasticing capacity
Kg/hr
45
Number of heating zone
zone
3
Extruder heating power
KW
10.8
Extruder driving power
KW
11
Die-head
Number of heating zone
zone
3
power of die heating
KW
4.2
Max die pin diameter
mm
90
Center distance of double die
mm
150/160
