| Type: | Digital Printer |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE certification |
| Weight: | 1180kg |
| Dimensions(L*W*H): | L4360mm x W2200mm x H1520mm |
| Gross Power: | 50/60HZ 220V>30A |
| Voltage: | 220V |
| Color & Page: | Multicolor |
| Automatic Grade: | Automatic |
| Usage: | UV Flatbed Printer |
| Model Number: | WT-SF2508UVF |
| Brand Name: | Wute |
| Place of Origin: | China (Mainland) |
| Plate Type: | Flatbed Printer |
| Condition: | New |
| Size: | 2.5m*1.3m |
| Ink: | UV ink |
| Color: | CMYK/CMYK+W |
| Heads: | doube DX7 heads |
Quick Details
Specifications

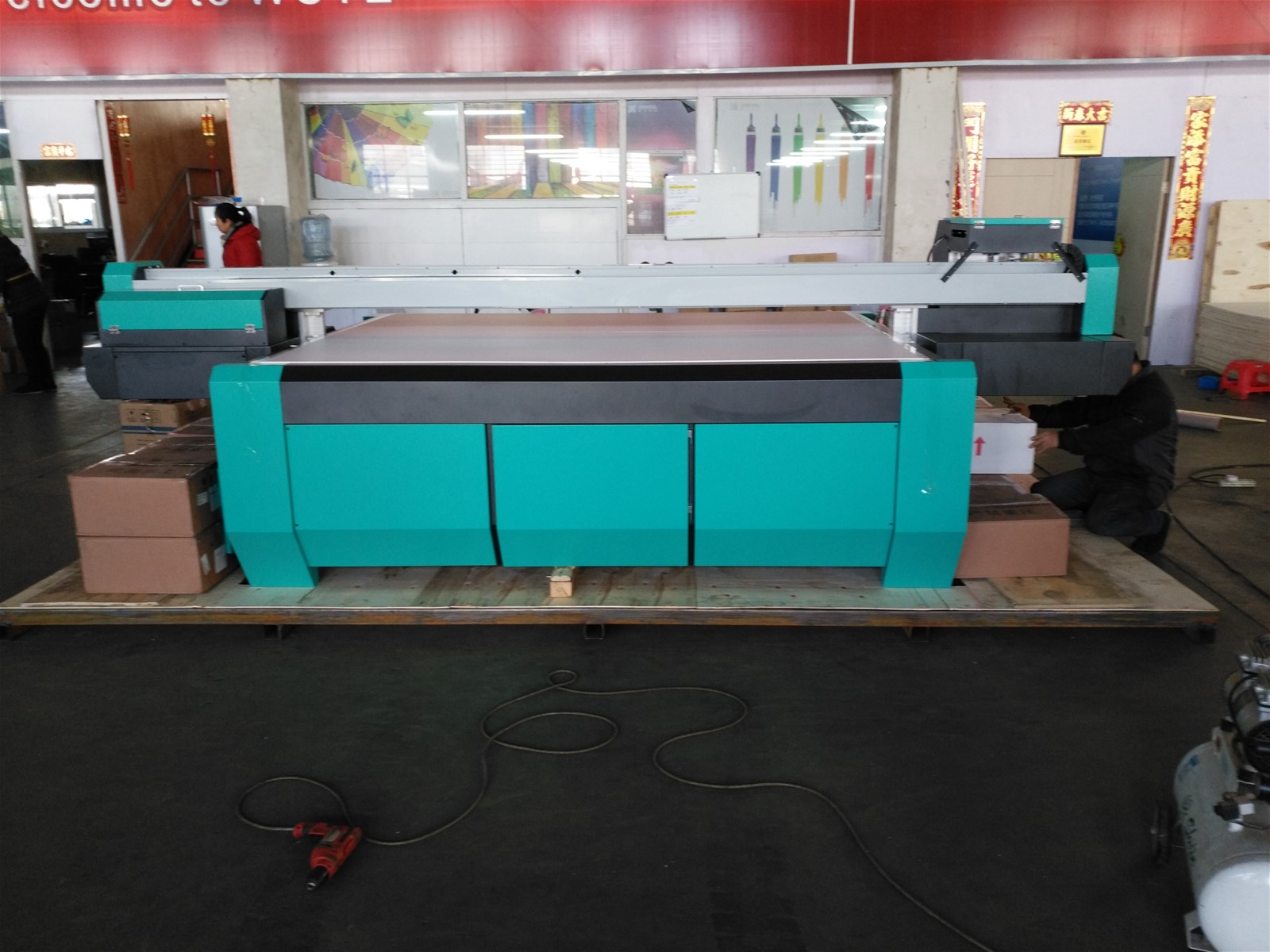

Large UV Flatbed Printer with DX7 Heads for Flat Rigid Material
1.Brief Introduction:
-We use Fuji motors imported from Japan for X axis,ensure the stability of movement.
-LED water cool systerm,make the wick more durable.
- the whole table is divided into 4 vacuum zones which Can be controlled according the size of material. Cost-saving.
- drawer-type UV lamp cassette makes it easy to replace the UV lamp. We use German UV lamps
Wick.
- Double guide rails for carriage movement, ensuring stability.
2.Techincal parameters:
|
WT-2500UVF | |
Printhead |
Epson DX7 | |
Printhead Quantity |
2pcs | |
Printhead Control |
Software automatically Adjusts the nozzle and voltage | |
Printhead height |
1-100mm optional | |
Ink |
Type |
UV ink |
Color |
CMYK+White | |
Cartridge capacity |
1000ml | |
Ink supply system |
Automatic ink supply | |
Color Management |
ICC or density curve | |
Print Media |
All rigid flat media such as glass,aluminum panels, Acrylic,wood,wall panel,ceiling,organic board,ceramics, PVC board,corrugated board,foam board,metal plates, Plastic,brick,stone… | |
Drying System |
2 UV lamps | |
Print Size |
1300*2500mm | |
Print Speed |
720*360dpi 4pass |
15m2/h |
360*1080dpi 6pass |
9m2/h | |
720*720dpi 8pass |
6m2/h | |
720*1080dpi 12pass |
3m2/h | |
Software |
Ultraprint | |
Operating System |
Windows XP Windows 7 | |
Platform Absorption |
1500W Turbo fan | |
Data interface |
USB2.0 | |
Power supply |
||
File Format |
BMP TIF JPG | |
Temperature |
15-28℃ | |
Humidity |
40%-60% | |
Machine Size |
L*W*H() | |
