| Rated Voltage: | 10kv-36kv |
|---|---|
| Application: | High Voltage |
| Material: | Porcelain |
| Type: | Insulator |
| Model Number: | ANSI 52-3 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

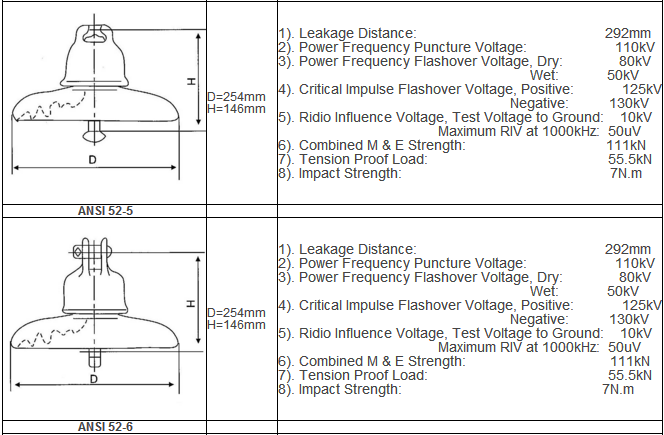

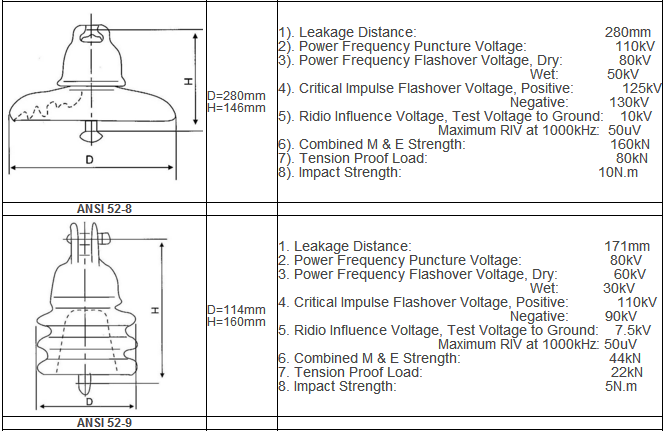

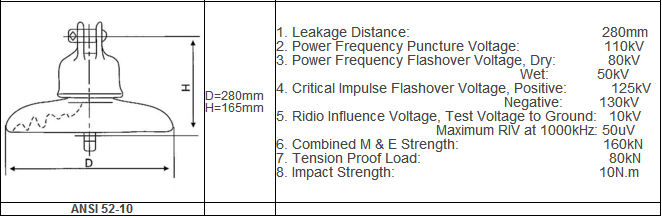

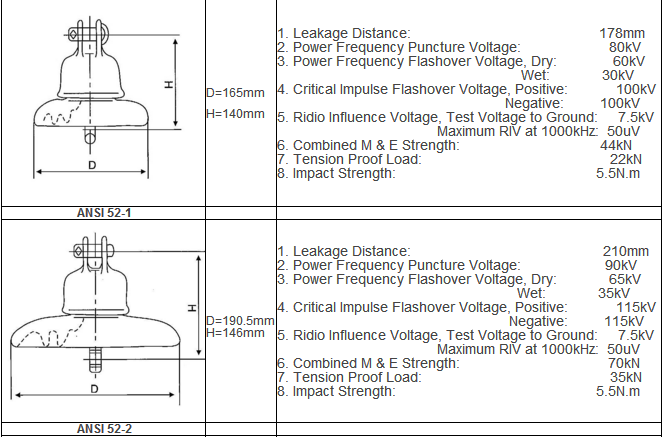

ANSI Ceramic Disc Insulator Porcelain Disc Suspension Insulator ANSI 52-1, 52-2, 52-3, 52-4, 52-5
ANSI 52-3 Porcelain Brown Disc InsulatorProvides great benefits and reliability than in the past. Special features and performance capabilities for ANSI 52-3 ceramic disc insulator have been added which significantly assist the transmission and distribution power line.
ANSI 52-3 Porcelain Brown Disc InsulatorProvides great benefits and reliability than in the past. Special features and performance capabilities for ANSI 52-3 ceramic disc insulator have been added which significantly assist the transmission and distribution power line.

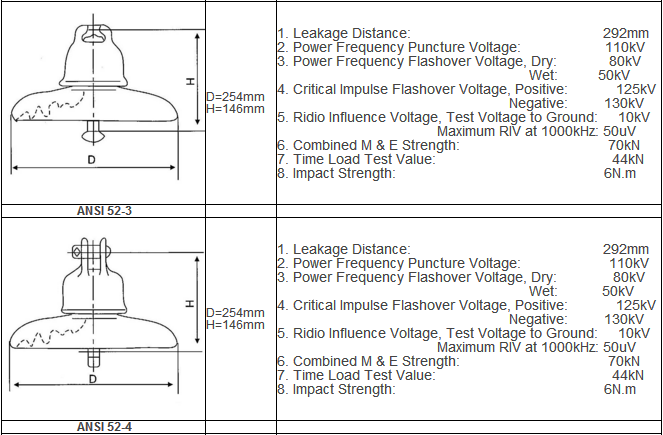

ANSI 52-3 ceramic disc insulator main specifications:
| ANSI Type | 52-3 | |||
| Main dimension | D | mm | 254 | |
| H | mm | 146 | ||
| Leakage distance | mm | 292 | ||
| Power frequency puncture voltage | kV | 110 | ||
| Flashover voltage | Power freq. | dry | kV | 80 |
| wet | kV | 50 | ||
| Critical impulse 1.5×4us wave | Pos. | kV | 125 | |
| Neg. | kV | 130 | ||
| Radio influence Voltage |
Test voltage to ground | kV | 10 | |
| Max. RIV at 1000kHz | μv | 50 | ||
| Rated E & M failing load | KN | 70 | ||
| Tension proof load | KN | 35 | ||
| Impact strength | N. M | 6 | ||
